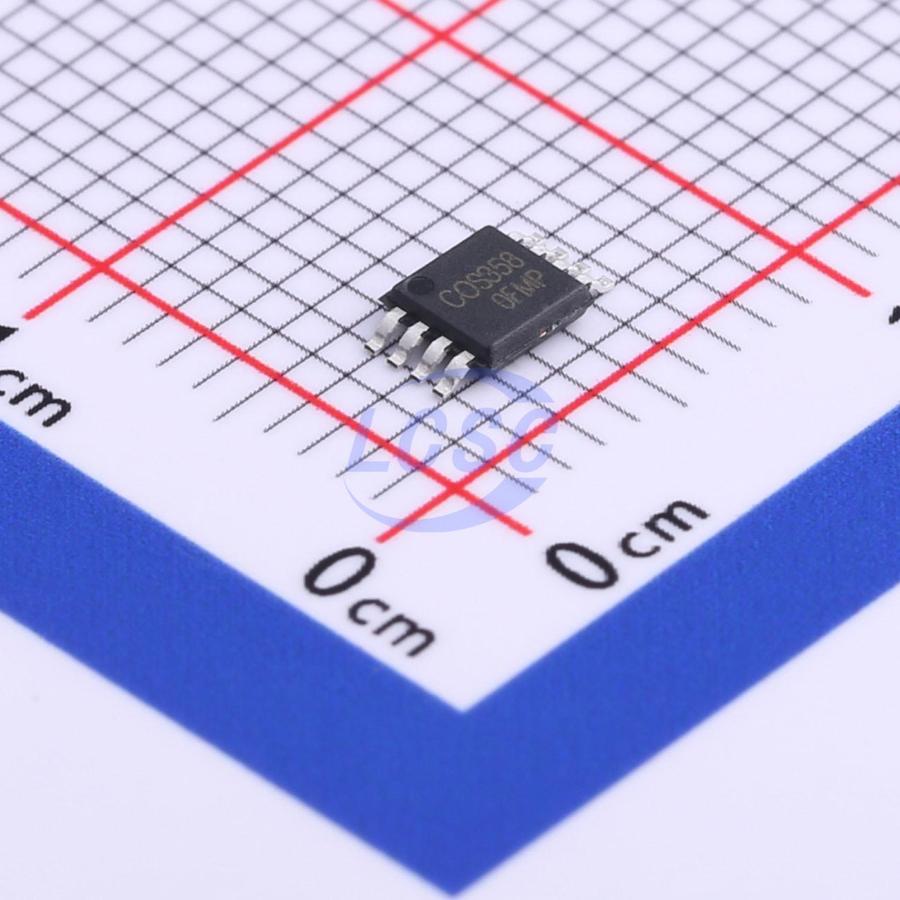

COS358MR
45mA 2 1mV 1V/us 2.5pA 125dB 85uA 1.5MHz Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS CompliantActive
1.5MHz, Low Cost Micro Power Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS358MR
- Store part #
- C693058
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,780 in stock
#C693058
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.87 | ₹84.35 |
| 50+ | ₹13.04 | ₹652.00 |
| 150+ | ₹11.13 | ₹1,669.50 |
| 500+ | ₹9.70 | ₹4,850.00 |
| 3,000+ | ₹8.55 | ₹25,650.00 |
| 6,000+ | ₹7.98 | ₹47,880.00 |
5 × ₹16.87
₹84.35
excl. GST
₹99.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
COS358MR
₹84.35 for 5 + GST
Specifications
- Output Current
- 45mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 2.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 2.5pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 85uA
- Gain Bandwidth Product
- 1.5MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 28nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.139 g
