COSINEDatasheet (PDF)

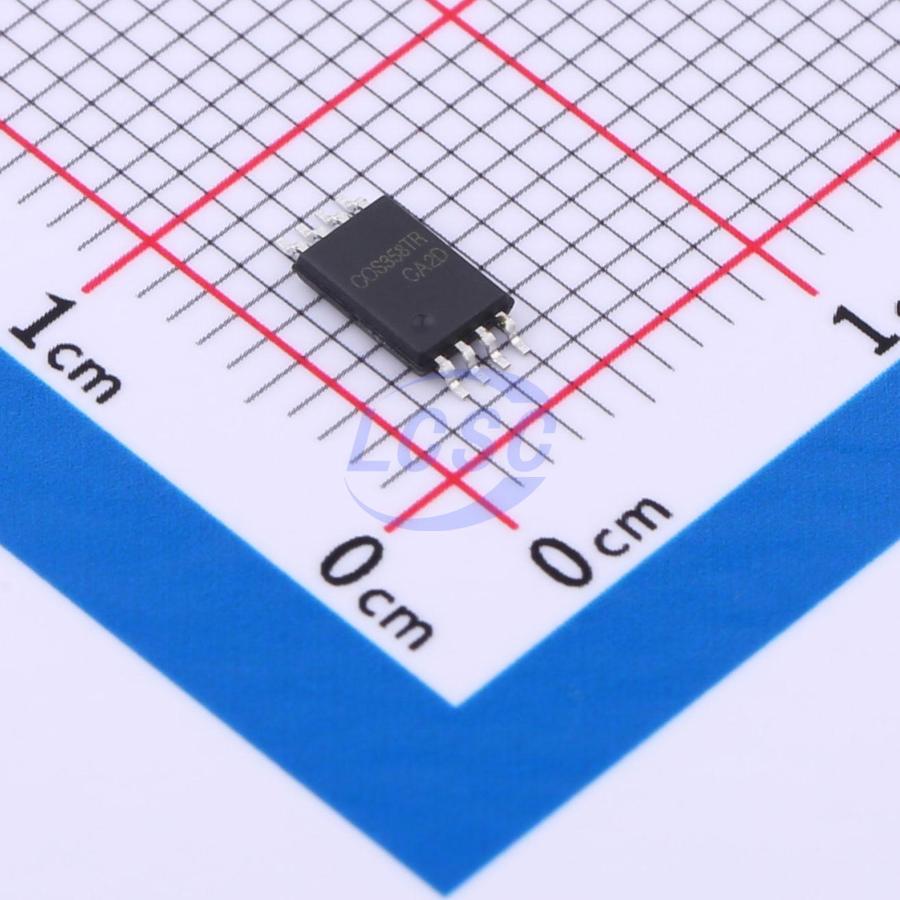

COS358TR
45mA 2 5mV 1V/us 2.5pA 125dB 85uA 1.5MHz Rail-to-rail output TSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-8ROHS CompliantActive
Micro Power Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS358TR
- Store part #
- C2926848
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,235 in stock
#C2926848
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.32 | ₹76.60 |
| 50+ | ₹12.18 | ₹609.00 |
| 150+ | ₹10.62 | ₹1,593.00 |
| 500+ | ₹9.45 | ₹4,725.00 |
| 2,500+ | ₹8.14 | ₹20,350.00 |
| 4,000+ | ₹7.66 | ₹30,640.00 |
5 × ₹15.32
₹76.60
excl. GST
₹90.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COS358TR
₹76.60 for 5 + GST
Specifications
- Output Current
- 45mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 2.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 2.5pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 85uA
- Gain Bandwidth Product
- 1.5MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 28nV/√Hz@1kHz
- Dual Supply
- -1.05V~2.75V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.149 g
Overview
The COS321 (single), COS358 (dual) and COS324 (quad) are micro-power, low cost amplifiers operated on 2.1V to 5.5V supplies. Despite their low quiescent current, the COS358 family provides excellent overall performance and versatility. They have rail-to-rail output voltage range which extends to within 10mV of each rail, providing the maximum output dynamic range with excellent overdrive recovery. COS358 family is unity gain stable and has a gain bandwidth product of 1.5MHz (typical). They provide high CMRR and PRSS performance and can operate from a single supply voltage as low as 2.1V. These features make the COS358 family well suited for single-supply, battery-powered applications. They can be used as plus-in replacements for many commercially available op-amps to reduce power and improve output range and performance.
Applications
- Portable Equipment
- Sensor Conditioning
- Analog Active Filters
- Medical Equipment
- Audio Output
- White Goods
- Battery or Solar Powered Systems
Key features
- Operates on 2.1V~5.5V Supplies
- Low Quiescent Current: 85µA
- Gain Bandwidth Product: 1.5MHz
- Slew Rate: 1V/µs
- Rail-to-Rail Output
- Unity Gain Stable
- No Phase Reversal
- Extended Temperature Ranges From -40°C to +125°C
- Small Packaging COS321 available in SOT23-5/SOP8
- COS358 available in SOP8/MSOP8 /TSSOP8
- COS324 available in SOP14/TSSOP14
