COSINEDatasheet (PDF)

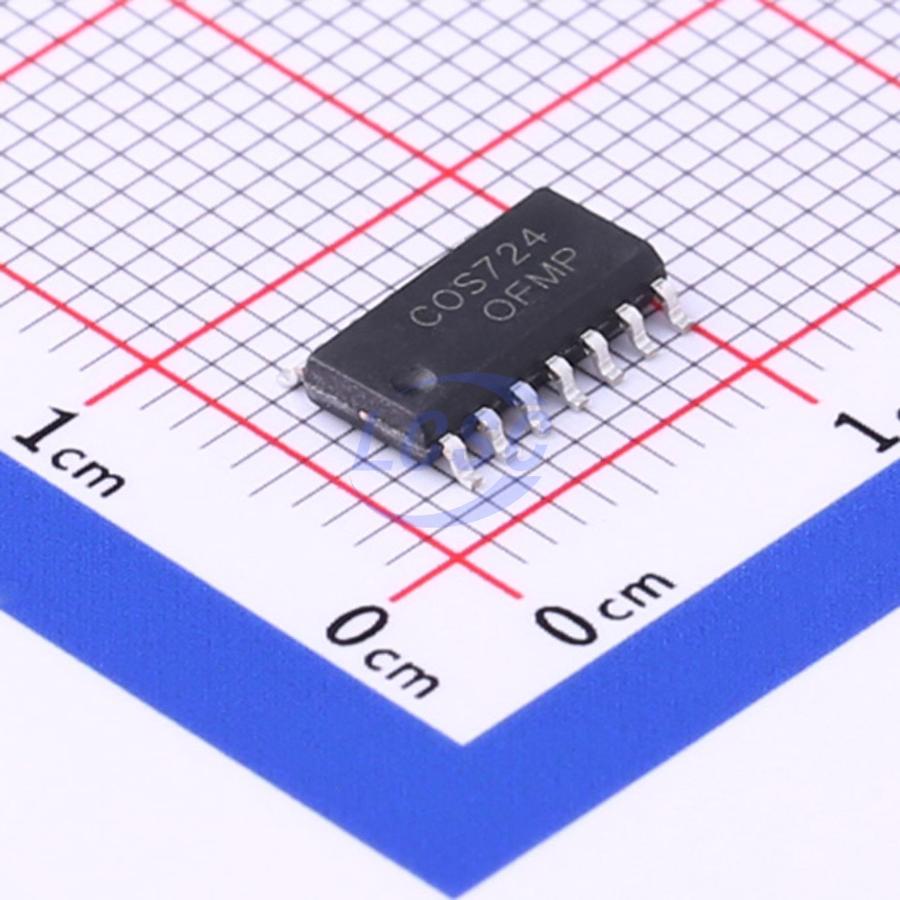

COS724SR
21mA 4 5mV 7.5V/us 2.5pA 125dB 10MHz 650uA Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
10MHz, Rail-to-Rail Input/Output Low Power Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS724SR
- Store part #
- C695777
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,390 in stock
#C695777
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.78 | ₹193.90 |
| 50+ | ₹30.64 | ₹1,532.00 |
| 150+ | ₹27.15 | ₹4,072.50 |
| 500+ | ₹22.78 | ₹11,390.00 |
| 3,000+ | ₹20.00 | ₹60,000.00 |
| 6,000+ | ₹18.84 | ₹1,13,040.00 |
5 × ₹38.78
₹193.90
excl. GST
₹228.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
COS724SR
₹193.90 for 5 + GST
Specifications
- Output Current
- 21mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 7.5V/us
- Input Offset Current(Ios)
- 2.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 2.5pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 10MHz
- Quiescent Current
- 650uA
- Input Voltage Noise Density
- 12nV/√Hz@1kHz
- Dual Supply
- 1.25V~2.75V;-2.75V~-1.25V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.281 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS6024SR#C18198086COSINE · SOP-14 | COSINE | SOP-14 | 95 | ₹37.86 · 95 in stock | View |
 | COS8054SOP#C7463387COSINE · SOP-14 | COSINE | SOP-14 | 279 | ₹71.68 · 279 in stock | View |
