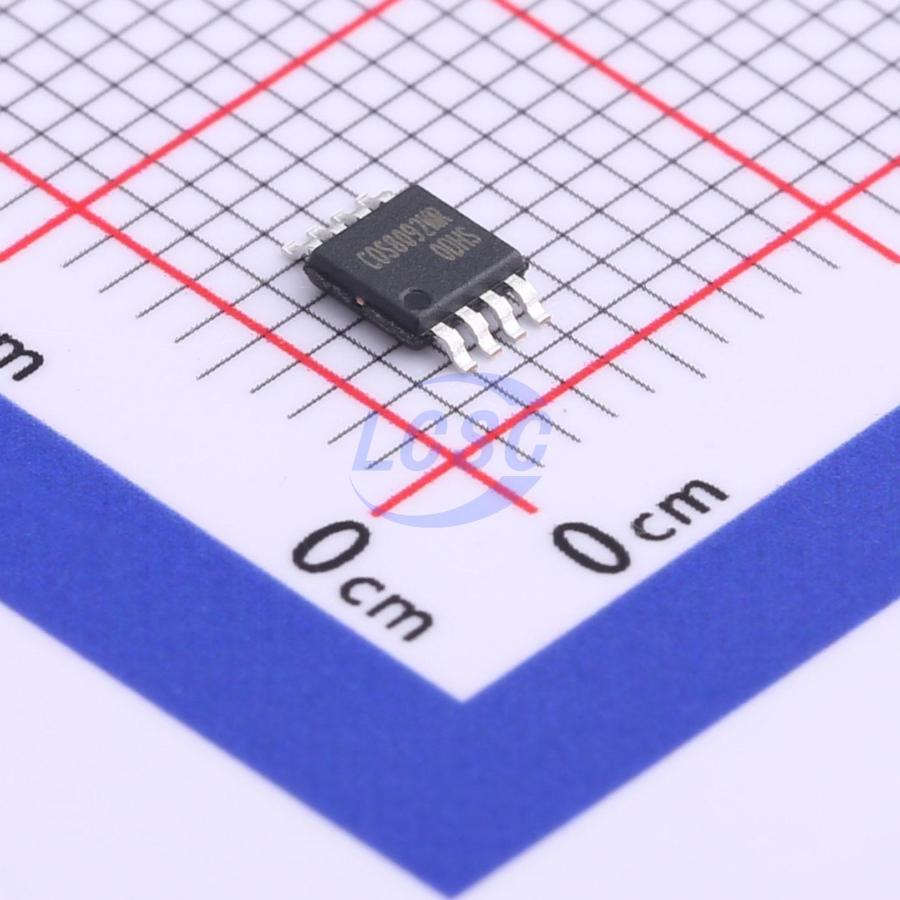

COS8092MR

110mA 2 10mV 250V/us 2.5pA 125dB 200MHz 4.5mA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS CompliantActive

300MHz Rail-to-Rail Input/Output High Speed Operational Amplifiers

Manufacturer: COSINE
Manufacturer part #: COS8092MR
Store part #: C726664
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,056 in stock

#C726664

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹55.92	₹55.92
10+	₹43.83	₹438.30
30+	₹38.64	₹1,159.20
100+	₹32.39	₹3,239.00
500+	₹29.58	₹14,790.00
1,000+	₹27.86	₹27,860.00

Quantity (min 1)

1 × ₹55.92

₹55.92

excl. GST

₹65.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

COS8092MR

₹55.92 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 110mA
Number of Channels: 2
Vos - Input Offset Voltage: 10mV
Slew Rate: 250V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 2.5pA
Common Mode Rejection Ratio(CMRR): 125dB
Input Offset Voltage Drift(Vos TC): 10uV/℃
Gain Bandwidth Product: 200MHz
Quiescent Current: 4.5mA
Features: Built-in compensation
Input Voltage Noise Density: 9nV/√Hz@1kHz
Dual Supply: -2.25V~-1.25V;1.25V~2.25V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.177 g
