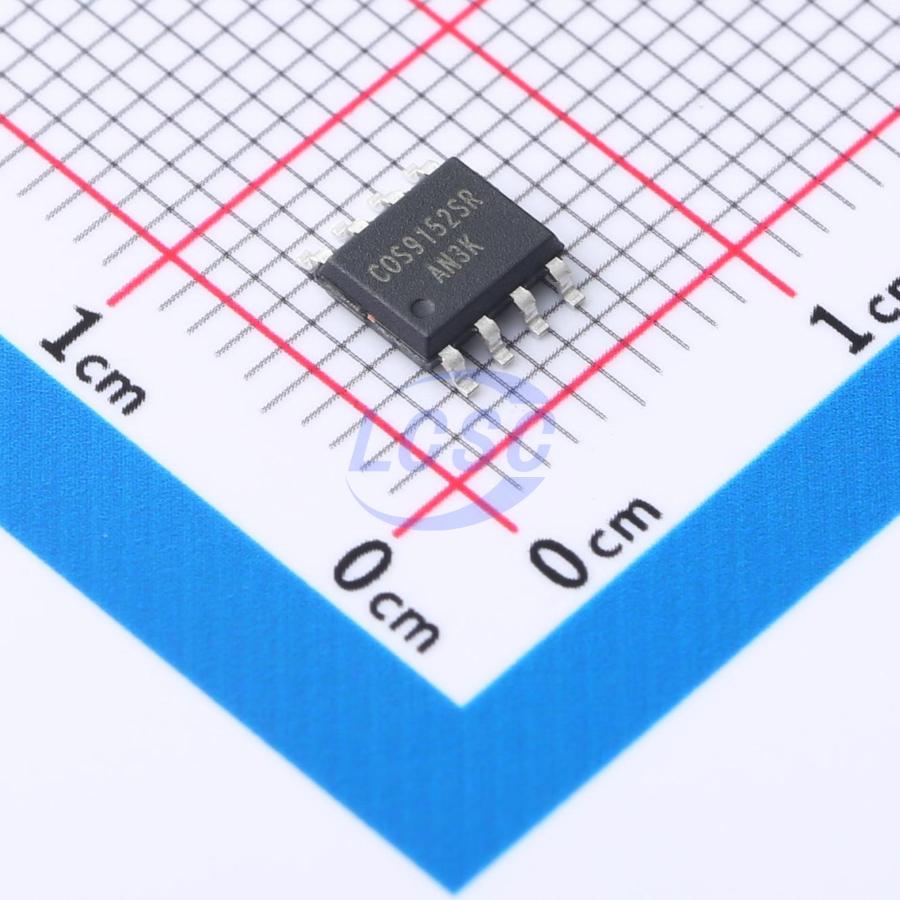

COS9152SRB
50mA 2 5mV 9V/us 1pA 125dB 480uA 5MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Low Power Operational Amplifiers with Rail-to-Rail Input/Output
- Manufacturer
- COSINE
- Manufacturer part #
- COS9152SRB
- Store part #
- C19193257
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,245 in stock
#C19193257
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.00 | ₹160.00 |
| 50+ | ₹27.97 | ₹1,398.50 |
| 150+ | ₹26.24 | ₹3,936.00 |
| 500+ | ₹24.07 | ₹12,035.00 |
| 2,500+ | ₹23.11 | ₹57,775.00 |
| 4,000+ | ₹22.53 | ₹90,120.00 |
5 × ₹32.00
₹160.00
excl. GST
₹188.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COS9152SRB
₹160.00 for 5 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Quiescent Current
- 480uA
- Gain Bandwidth Product
- 5MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 20nV/√Hz@1kHz
- Dual Supply
- -8V~-1.35V;1.35V~8V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 3V~16V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
