COSINEDatasheet (PDF)

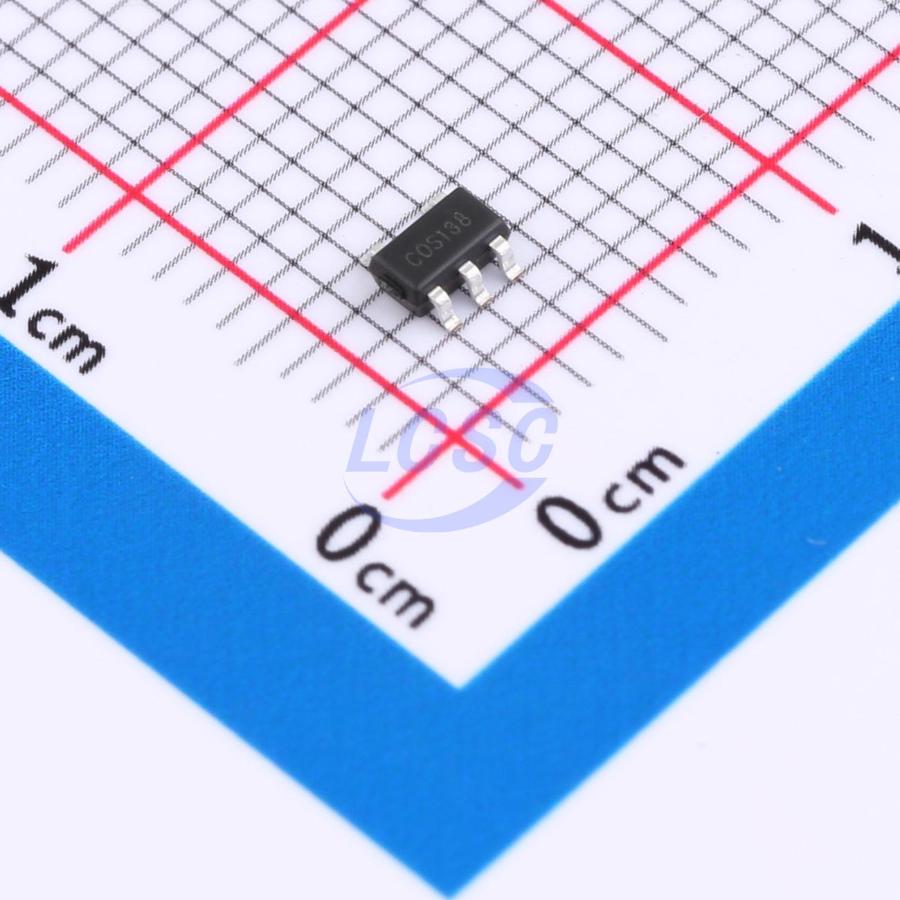

COSINA138
1 2.7V~40V 5uV 100dB 2uA 35uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
High-Side Current Sense Amplifier
- Manufacturer
- COSINE
- Manufacturer part #
- COSINA138
- Store part #
- C47416467
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C47416467
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.88 | ₹73.88 |
| 10+ | ₹59.76 | ₹597.60 |
| 30+ | ₹52.80 | ₹1,584.00 |
| 100+ | ₹45.86 | ₹4,586.00 |
| 500+ | ₹41.50 | ₹20,750.00 |
| 1,000+ | ₹39.54 | ₹39,540.00 |
1 × ₹73.88
₹73.88
excl. GST
₹87.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
COSINA138
₹73.88 for 1 + GST
Specifications
- Number of Channels
- 1
- Vcm - Common Mode Voltage
- 2.7V~40V
- Vos - Input Offset Voltage
- 5uV
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 2uA
- Input Offset Voltage Drift(Vos TC)
- 0.5uV/℃
- -3dB Bandwidth
- 300kHz
- Quiescent Current
- 35uA
- Features
- High-side detection;Analog output interface;Zero drift / auto-zero
- Differential Voltage
- -26V~2V
- Single Supply
- 2.7V~40V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.048 g
