COSINA333MRB
50mA 1 25uV 0.25V/us 120dB 200pA 70uA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS CompliantActive

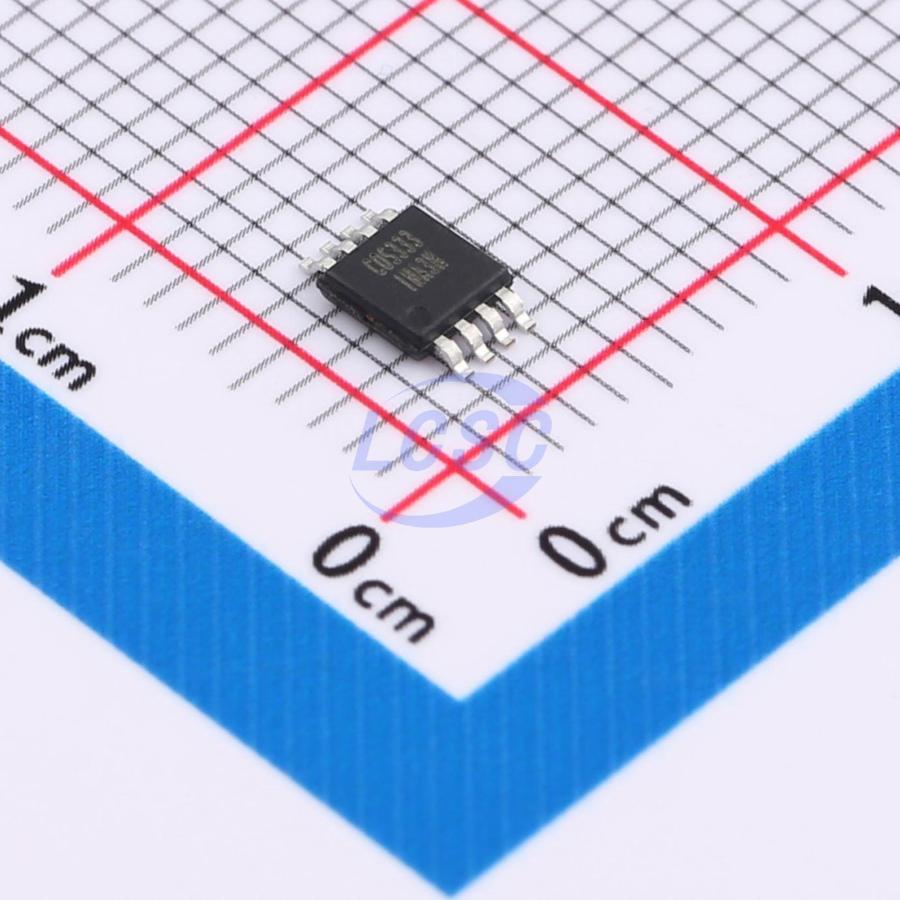

Zero-Drift, Instrumentation Amplifier
- Manufacturer
- COSINE
- Manufacturer part #
- COSINA333MRB
- Store part #
- C17702539
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,119 in stock
#C17702539
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.72 | ₹122.72 |
| 10+ | ₹100.18 | ₹1,001.80 |
| 30+ | ₹88.91 | ₹2,667.30 |
| 100+ | ₹77.85 | ₹7,785.00 |
| 500+ | ₹71.12 | ₹35,560.00 |
| 1,000+ | ₹67.66 | ₹67,660.00 |
1 × ₹122.72
₹122.72
excl. GST
₹144.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
COSINA333MRB
₹122.72 for 1 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 25uV
- Slew Rate
- 0.25V/us
- Input Offset Current(Ios)
- 3pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 200pA
- Power Supply Rejection Ratio (PSRR)
- 130dB
- Input Offset Voltage Drift(Vos TC)
- 50nV/℃
- Quiescent Current
- 70uA
- Features
- External resistor gain;Zero drift / auto-zero
- Input Voltage Noise Density
- 50nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.158 g
