COSINEDatasheet (PDF)

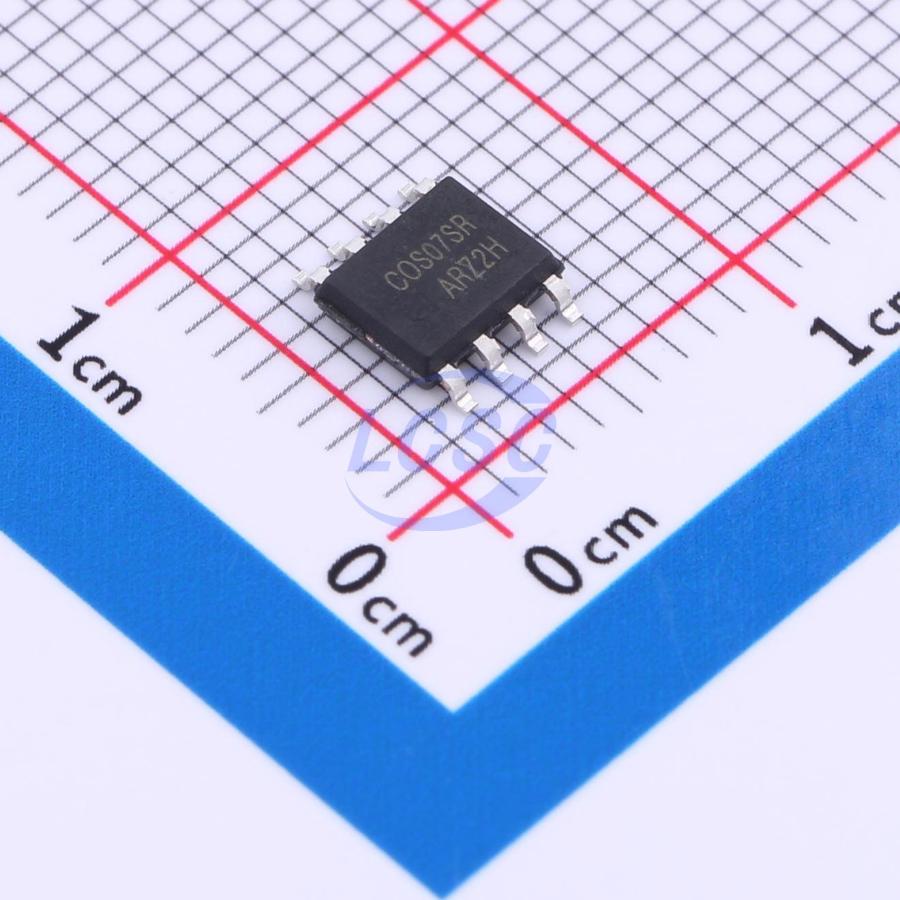

COSOP07SR
10mA 1 100uV 700V/ms 125dB 2nA 330uA 1.5MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS CompliantActive
36V precision low-noise operational amplifier
- Manufacturer
- COSINE
- Manufacturer part #
- COSOP07SR
- Store part #
- C5126670
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,115 in stock
#C5126670
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.99 | ₹149.95 |
| 50+ | ₹23.97 | ₹1,198.50 |
| 150+ | ₹21.39 | ₹3,208.50 |
| 500+ | ₹18.16 | ₹9,080.00 |
| 2,500+ | ₹16.19 | ₹40,475.00 |
| 4,000+ | ₹15.33 | ₹61,320.00 |
5 × ₹29.99
₹149.95
excl. GST
₹176.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COSOP07SR
₹149.95 for 5 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 700V/ms
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Ib - Input Bias Current
- 2nA
- Input Offset Voltage Drift(Vos TC)
- 300nV/℃
- Quiescent Current
- 330uA
- Gain Bandwidth Product
- 1.5MHz
- Features
- Built-in compensation;Overvoltage protection
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -2.25V~18V
- Rail to Rail
- Rail-to-rail output
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COSOP1177SR#C17702533COSINE · SOP-8 | COSINE | SOP-8 | 116 | ₹60.59 · 116 in stock | View |
 | COS721SR#C693057COSINE · SOIC-8 | COSINE | SOIC-8 | 85 | ₹18.23 · 85 in stock | View |
 | COSOPA227USR#C17702536COSINE · SOP-8 | COSINE | SOP-8 | 2 | ₹122.19 · 2 in stock | View |
 | COS6021SR#C18198082COSINE · SOP-8 | COSINE | SOP-8 | 250 | ₹17.19 · 250 in stock | View |
