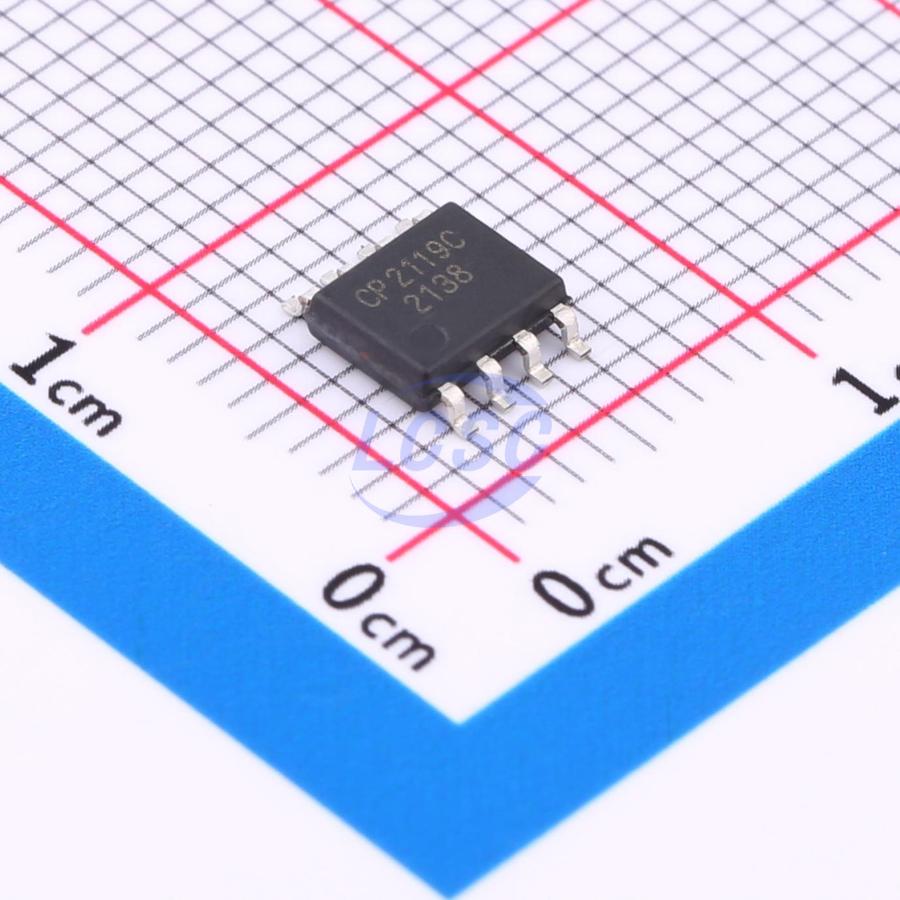

CP2119CDTR(XBLW)

CP2119C is a single-channel toy DC motor driver IC designed for low-voltage systems. It employs an H-bridge driver architecture with integrated PMOS and NMOS power transistors featuring low output resistance. The low on-resistance minimizes power dissipation during continuous high-current operation, ensuring long-term stable performance. CP2119C integrates thermal protection: when a low-impedance motor stalls or an output short circuit occurs, the output current spikes sharply, causing a rapid rise in circuit power dissipation and chip temperature. Once the chip temperature exceeds the threshold set by the internal thermal protection circuit (typical value 130°C), the internal circuitry shuts down the built-in power switches to cut off the load current, preventing safety hazards such as smoking or ignition of the plastic package due to excessive temperature. The built-in thermal hysteresis circuit ensures the device must cool down to a safe temperature before normal operation is permitted to resume. The built-in short-circuit protection circuit effectively protects the IC from damage during output short-circuit conditions.

Applications

• Advanced robotic motor drive
• Consumer electronics motor drive
• Industrial motor drive
• Electronic toy robots
• Toy motor drive for 3 to 10 battery cells

Key features

• Integrated H-bridge driver with PMOS/NMOS power switches
• Supports four motor control modes: forward, reverse, stop, and brake
• Low standby current (typical 0.1μA)
• Wide operating voltage range: 3V to 20V
• Low output impedance; continuous 5A output current with 10A peak capability at VDD = 6V, T = 25°C
• Built-in thermal shutdown protection (TSD) with hysteresis
• SOP8 package
