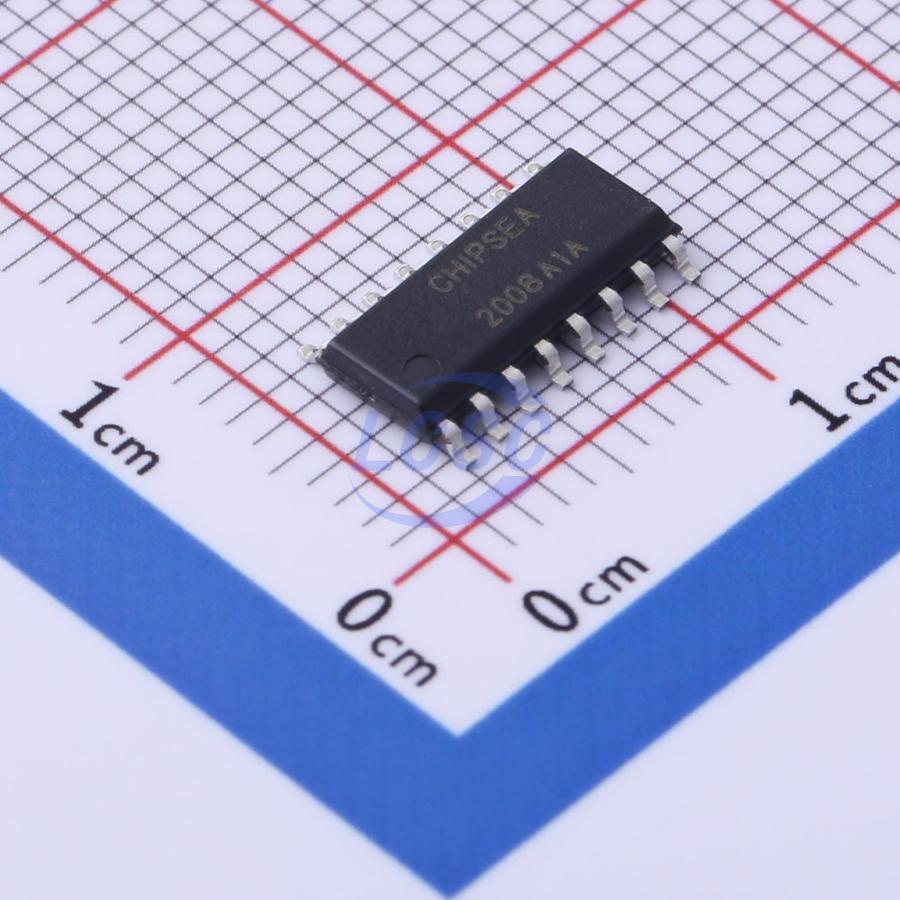

CS1259B-SOP16

24 Bit Analog to Digital Converter 5 Input SOP-16

SOP-16RoHSActive

It has 5 channels with high-performance 24-bit ADC.

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,266 in stock

#C2833379

Stock & price checked 5 days ago

Quantity (min 1)

1 × ₹139.11

₹139.11

excl. GST

₹164.15 incl. 18% GST

CS1259B-SOP16

₹139.11 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Interface: SPI
Quiescent Current (Iq): 100nA
Voltage - Supply: 2.4V~3.6V
Number of Channels: 5
Voltage Reference: Built-in
Clock/Oscillator: Built-in
Clock Frequency: 5.898MHz
Features: Multiplexers;Integrated modulator;Built-in digital filter;Power-on reset
Resolution(Bits): 24;1.28kHz
ADC architecture: Sigma-Delta
Programmable Gain: Support

Single-ended input support; up to 5 inputs configurable as multiple differential input pairs; input level shifting support
PGA gain selectable at 1/2/4/8/16/32/64/128×; equivalent input impedance up to 100MΩ
ADC 24-bit resolution; output data rate selectable in 8 steps from 10~1280Hz
19.5 bits ENOB at 2.35V reference, 40Hz data rate, 128× gain
Integrated LDO, output selectable at 2.35/2.45/2.8/3.0V, 30ppm/°C, ±1% accuracy
Integrated low-drift reference, internal reference voltage selectable at 1.225V, 30ppm/°C, ±1% accuracy
