Cirrus Logic

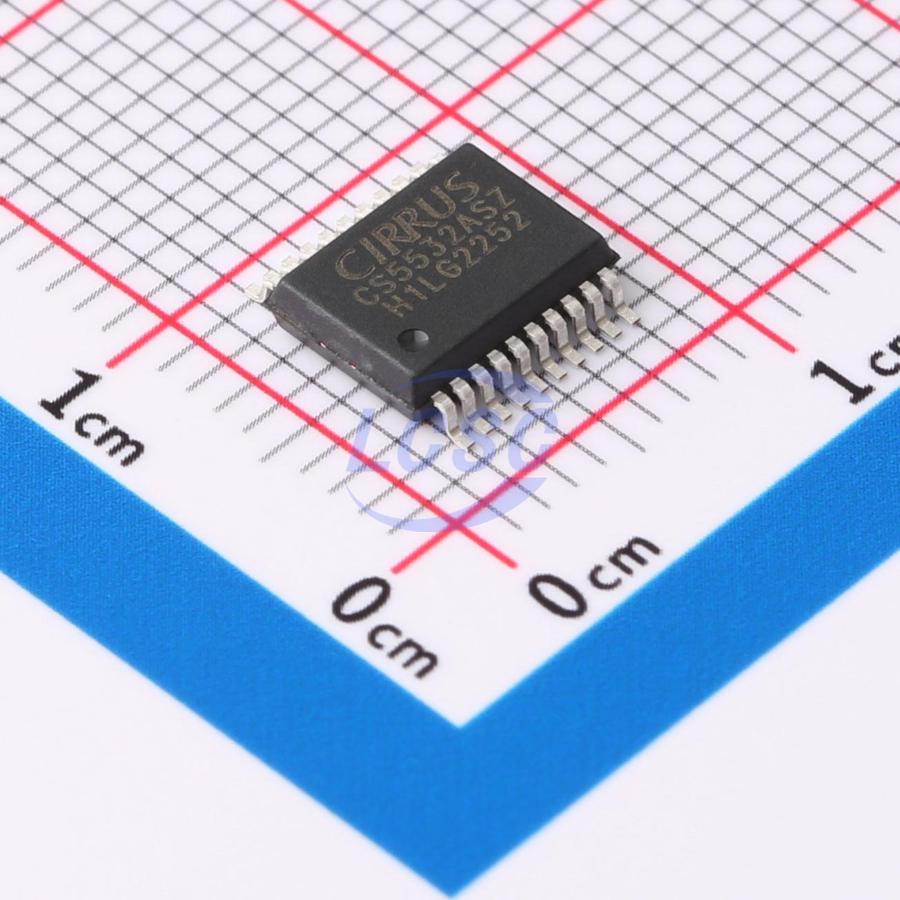

CS5532-ASZR

SPI 3V~5V SSOP-20-300mil Analog to Digital Converters (ADC) RoHS

SSOP-20-300milROHS3 CompliantActive

16-bit and 24-bit ADCs with Ultra-low-noise PGIA

Manufacturer: Cirrus Logic
Manufacturer part #: CS5532-ASZR
Store part #: C2670528
Package / case: SSOP-20-300mil
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

994 in stock

#C2670528

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,719.69	₹1,719.69
10+	₹1,645.16	₹16,451.60
30+	₹1,516.08	₹45,482.40
100+	₹1,403.53	₹1,40,353.00

Quantity (min 1)

1 × ₹1,719.69

₹1,719.69

excl. GST

₹2,029.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

CS5532-ASZR

₹1,719.69 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Interface: SPI
Voltage - Supply: 3V~5V
Number of Channels: 2
Voltage Reference: External
Clock/Oscillator: External
Clock Frequency: 4.9152MHz;1MHz~5MHz
Features: Bipolar input;Multiplexers;Integrated modulator;Built-in digital filter;Auto calibration;Input buffer;Soft reset
Resolution(Bits): 6.25Hz;24
ADC architecture: Sigma-Delta
Programmable Gain: Support

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.306 g

Overview

The CS5531/32/33/34 are highly integrated ΔΣ Analog-to-Digital Converters (ADCs) which use charge-balance techniques to achieve 16-bit (CS5531/33) and 24-bit (CS5532/34) performance. The ADCs are optimized for measuring low-level unipolar or bipolar signals in weigh scale, process control, scientific, and medical applications. To accommodate these applications, the ADCs come as either two-channel (CS5531/32) or four-channel (CS5533/34) devices and include a very low noise chopper-stabilized instrumentation amplifier (6nV/√Hz @ 0.1 Hz) with selectable gains of 1x, 2x, 4x, 8x, 16x, 32x, and 64x. These ADCs also include a fourth order ΔΣ modulator followed by a digital filter which provides twenty selectable output word rates of 6.25, 7.5, 12.5, 15, 25, 30, 50, 60, 100, 120, 200, 240, 400, 480, 800, 960, 1600, 1920, 3200, and 3840 Sps (MCLK = 4.9152 MHz). To ease communication between the ADCs and a microcontroller, the converters include a simple three-wire serial interface which is SPI and Microwire compatible with a Schmitt-trigger input on the serial clock (SCLK). High dynamic range, programmable output rates, and flexible power supply options makes these ADCs ideal solutions for weigh scale and process control applications.

Applications

weigh scale
process control
scientific
medical

Key features

Chopper-stabilized PGIA (Programmable Gain Instrumentation Amplifier, 1x to 64x) – 12 nV/√Hz @ 0.1 Hz (No 1/f noise) at 64x 1200 pA Input Current with Gains >1
Delta-sigma Analog-to-digital Converter – Linearity Error: 0.0007% FS – Noise Free Resolution: Up to 23 bits
Two- or Four-channel Differential MUX
Scalable Input Span via Calibration – ±5 mV to differential ±2.5 V
Scalable VREF Input: Up to Analog Supply
Simple Three-wire Serial Interface SPI and Microwire Compatible – Schmitt Trigger on Serial Clock (SCLK)
R/W Calibration Registers Per Channel
Selectable Word Rates: 6.25 to 3,840 Sps
Selectable 50 or 60 Hz Rejection
Power Supply Configurations – VA+ = +5 V; VA- = 0 V; VD+ = +3 V to +5 V – VDA+ = +2.5 V; VA- = -2.5 V; VD+ = +3 V to +5 V VA+ = +3 V; VA- = -3 V; VD+ = +3 V
