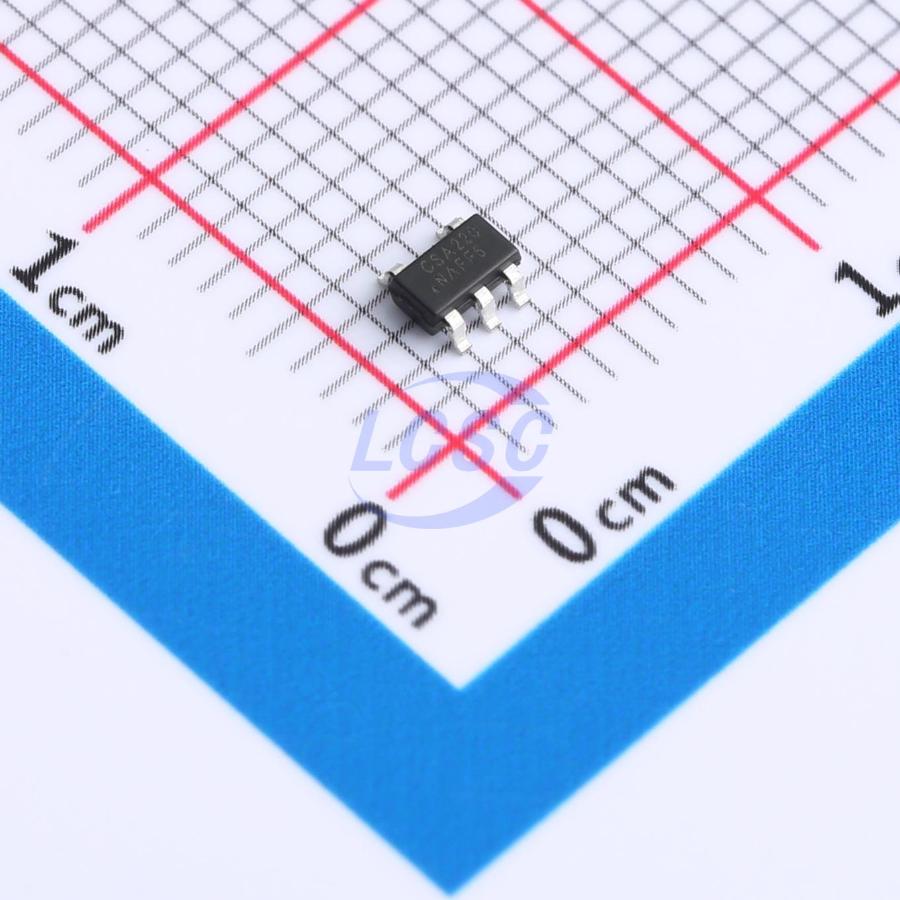

CSA220LASOT235

CSA220 is a high-precision current sense amplifier featuring an offset voltage of less than 60µV (max) and a gain error of less than 0.1% (max). The wide input common-mode range of 0V to 76V and 50kHz bandwidth make the CSA220 well suited for driving various ADCs in multi-channel data acquisition systems. The small package and low power consumption of the CSA220 also make it ideal for widespread use in portable devices. The CSA220 operates over a temperature range of −40°C to 125°C. The CSA220 current sense amplifier features a 0V to 76V input common-mode range, independent of the supply voltage. This capability allows monitoring of battery current down to 0V and enables high-side current sensing at voltages above the supply voltage (VDD). The CSA220 monitors shunt current and amplifies the voltage across the resistor. High-side current monitoring does not interfere with the ground path of the load under test, making the CSA220 particularly useful in a wide range of high-voltage systems.

Applications

• Communication equipment
• Power management systems
• Servers
• Battery current sensing

Key features

• Wide common-mode voltage range: 0V to 76V
• High accuracy: Gain: • Gain error: 0.10% (max) Offset: Offset voltage: ±5μV (typ)
• Low operating current: 0.3mA
• Selectable gain: G = 10V/V (CSA220-10), G = 20V/V (CSA220-20), G = 50V/V (CSA220-50), G = 100V/V (CSA220-100)
• SOT23-5 package
