-6V to 80V, Bidirectional, Ultra-Precise Current Sense Amplifier with Enhanced PwM Rejection
- Manufacturer
- analogysemi
- Manufacturer part #
- CSA240LCTSSOP8
- Store part #
- C5359414
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,409 in stock
#C5359414
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹487.41 | ₹487.41 |
| 10+ | ₹416.94 | ₹4,169.40 |
| 30+ | ₹375.10 | ₹11,253.00 |
| 100+ | ₹332.81 | ₹33,281.00 |
| 500+ | ₹313.30 | ₹1,56,650.00 |
| 1,000+ | ₹304.41 | ₹3,04,410.00 |
1 × ₹487.41
₹487.41
excl. GST
₹575.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel

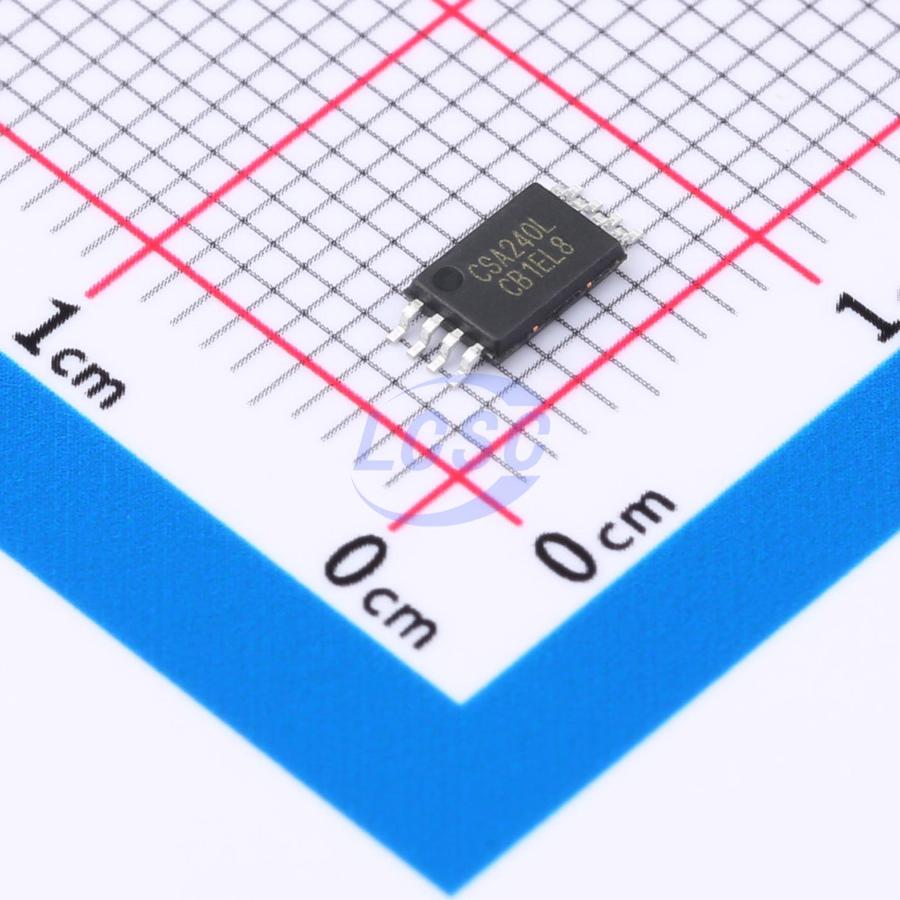

CSA240LCTSSOP8
₹487.41 for 1 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3uV
- Vcm - Common Mode Voltage
- -6V~80V
- Slew Rate
- 1.5V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 160dB
- Ib - Input Bias Current
- 10nA
- Input Offset Voltage Drift(Vos TC)
- 600nV/℃
- -3dB Bandwidth
- 550kHz
- Quiescent Current
- 1.4mA
- Gain
- 20V/V
- Features
- Zero drift / auto-zero;Analog output interface;Programmable output reference level
- Differential Voltage
- ±80V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
CSA240 is a wide common-mode, zero-drift, ultra-high CMRR precision current sense amplifier with enhanced PWM rejection at its inputs. This enhanced PWM rejection effectively reduces the impact of common-mode transients on output signals associated with PWM signals. The CSA240 offers a bandwidth of up to 550kHz and is available in multiple gain options — 20V/V, 50V/V, and 100V/V — allowing designers to optimize the full-scale output voltage based on the expected target current range in their application.
Applications
- Motor control
- Solenoid and valve control
- Actuator control
- Communication equipment
- BMS systems
Key features
- Enhanced PWM rejection
- Excellent CMRR: 160dB DC CMRR (typ); 106dB AC CMRR at 50kHz (typ)
- Wide common-mode voltage range: −6V to 80V
- Accuracy:
- Gain:
- Gain error: 0.10% (max)
- Gain drift: 6ppm/°C (typ)
- Offset:
- Offset voltage: ±15μV (max)
- Offset drift: 600nV/°C (max)
- Available gain options:
- CSA240L: 20V/V
- CSA240M: 50V/V
- CSA240N: 100V/V
