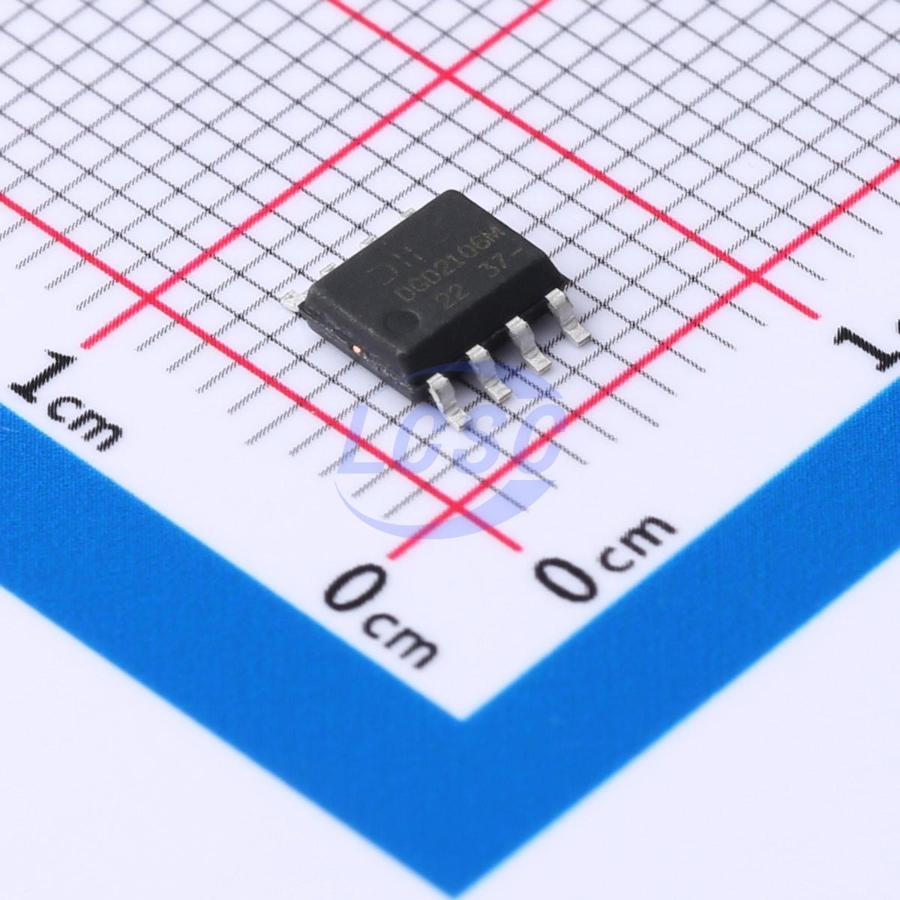

DGD2106MS8-13
10V~20V 600mA 290mA SO-8 Gate Drivers RoHS
High-Side and Low-Side Gate Driver
- Manufacturer
- DIODES
- Manufacturer part #
- DGD2106MS8-13
- Store part #
- C2677310
- Package / case
- SO-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,409 in stock
#C2677310
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.22 | ₹57.22 |
| 10+ | ₹51.62 | ₹516.20 |
| 30+ | ₹48.61 | ₹1,458.30 |
| 100+ | ₹43.45 | ₹4,345.00 |
| 500+ | ₹41.73 | ₹20,865.00 |
| 1,000+ | ₹40.87 | ₹40,870.00 |
1 × ₹57.22
₹57.22
excl. GST
₹67.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DGD2106MS8-13
₹57.22 for 1 + GST
Specifications
- Low Level Delay Time
- 100ns
- High Level Delay Time
- 100ns
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 100ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The DGD2106M is a High- voltage / High- speed gate driver capable of driving N- Channel MOSFETs and IGBTs in a High- Side/Low- Side configuration. High voltage processing techniques enable the DGD2106M's high- side to switch to 600V in a bootstrap operation. The DGD2106M logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with controlling devices. The driver outputs feature high pulse current buffers designed for minimum driver cross conduction. The DGD2106M is available in a space saving SO- 8 package and operates over an extended - 40°C to +125°C temperature range.
Applications
- DC- DC Converters
- DC- AC Inverters
- AC- DC Power Supplies
- Motor Controls
- Class D Power Amplifiers
Key features
- Floating High- Side Driver in Bootstrap Operation to 600V
- Drives Two N- Channel MOSFETs or IGBTs in High- Side/Low- Side Configuration
- Outputs Tolerant to Negative Transients
- Wide Logic and Low- Side Gate Driver Supply Voltage: 10V to 20V
- Logic Input (HIN and LIN) 3.3V Capability
- Schmitt Triggered Logic Inputs with Internal Pull Down
- Undervoltage Lockout for Vcc
- Extended Temperature Range: - 40°C to +125°C
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
