DIOODatasheet (PDF)

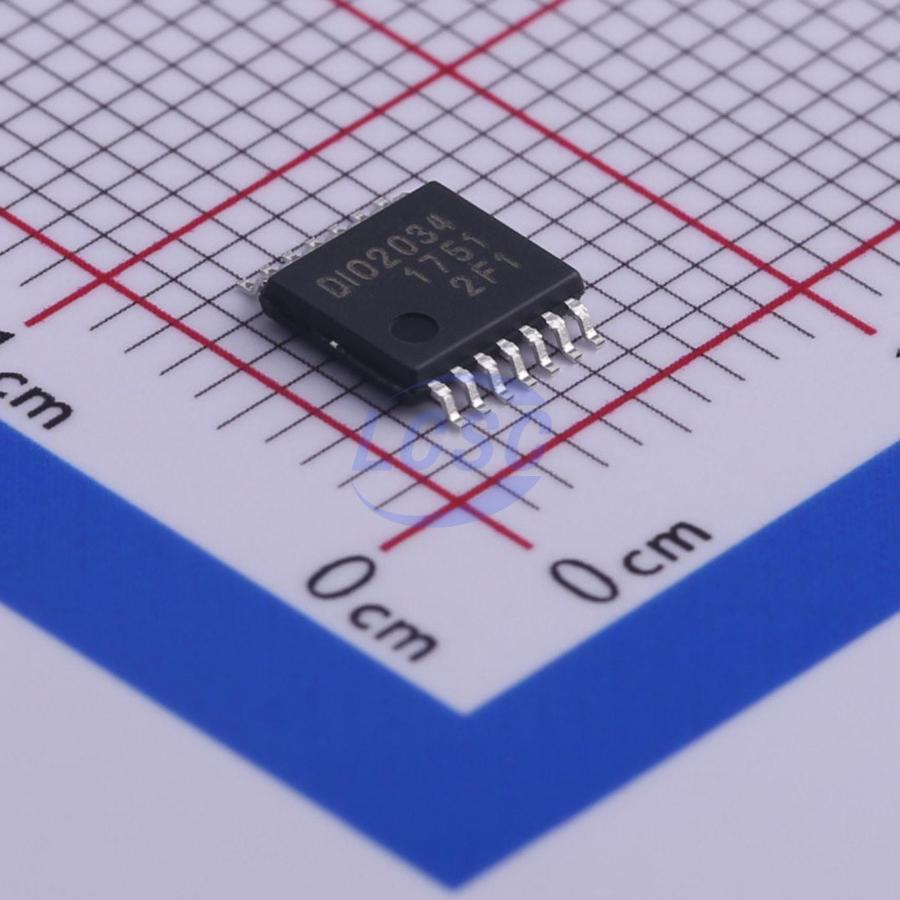

DIO20324TP14
48mA 4 3.5mV 3.6V/us 10pA 75dB 350uA 6MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS CompliantActive
Rail-to-Rail I/O CMOS Operational Amplifiers
- Manufacturer
- DIOO
- Manufacturer part #
- DIO20324TP14
- Store part #
- C444529
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C444529
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.79 | ₹238.95 |
| 50+ | ₹37.53 | ₹1,876.50 |
| 150+ | ₹33.13 | ₹4,969.50 |
| 500+ | ₹27.64 | ₹13,820.00 |
| 2,500+ | ₹25.20 | ₹63,000.00 |
| 5,000+ | ₹23.73 | ₹1,18,650.00 |
5 × ₹47.79
₹238.95
excl. GST
₹281.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DIO20324TP14
₹238.95 for 5 + GST
Specifications
- Output Current
- 48mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 3.6V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 350uA
- Gain Bandwidth Product
- 6MHz
- Input Voltage Noise Density
- 20nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.095 g
Overview
The DI020321 (single), DI020322 (dual), DIO20324 (quad), and Dl02036 (Triple) are amplifiers with very low noise, low voltage, and low power operational. The Dl020321/2/4/6 has a high gain-bandwidth product of 6MHz, a slew rate of 3.6V/μs and a quiescent current of 350μA amplifier at 5V typically. The Dl020321/2/4/6 is designed to provide optimal performance in low voltage and low noise systems. All these chips provide rail-to-rail output swing into heavy loads. The input common-mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for D1020321/2/4/6.
Applications
- Audio Output
- Sensor Interface
- Active Filters
- A/D Converters
- Cellular and Cordless Phones
- Laptops and PDAs
- Photodiode Amplification
- Battery-Powered Instrumentation
Key features
- Supply Voltage Range: 2.5V to 5.5V
- Low Supply Current: 350μA Typically
- Rail-to-Rail Input and Output
- 6MHz High Gain-Bandwidth Product
- High Slew Rate: 3.6V/μs
- Settling Time to 0.1% with 2V Step: 2.1μs
- Overload Recovery Time: 0.9μs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DIO2644TP14#C7494974DIOO · TSSOP-14 | DIOO | TSSOP-14 | 3 | ₹178.41 · 3 in stock | View |
