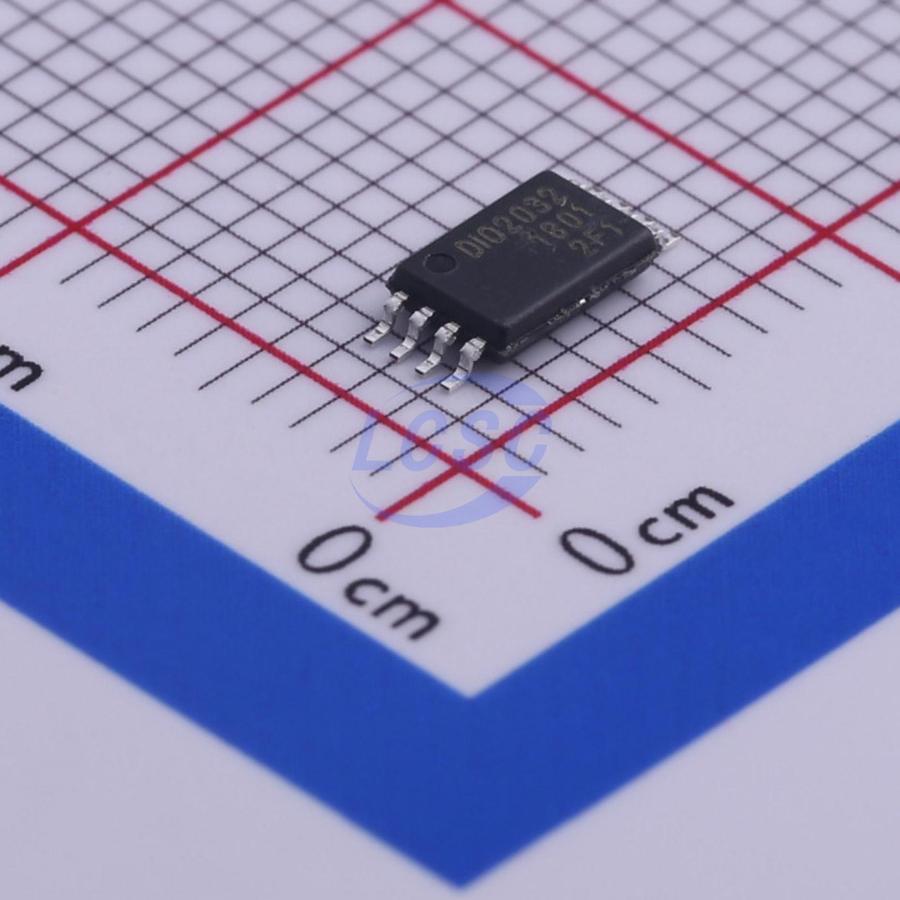

DIO2032TP8

48mA 2 3.5mV 3.6V/us 1pA 90dB 350uA 6MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-8 Instrumentation, Op Amps, Buffer Amps

TSSOP-8RoHSActive

500uA, 6MHz, Rail-to-Rail I/O CMOS Operational Amplifiers

Manufacturer: DIOO
Manufacturer part #: DIO2032TP8
Store part #: C444531
Package / case: TSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,920 in stock

#C444531

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹19.85	₹99.25
50+	₹15.58	₹779.00
150+	₹13.76	₹2,064.00
500+	₹11.48	₹5,740.00
3,000+	₹10.46	₹31,380.00
6,000+	₹9.86	₹59,160.00

Quantity (min 5, multiples of 5)

5 × ₹19.85

₹99.25

excl. GST

₹117.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

DIO2032TP8

₹99.25 for 5 + GST

Specifications

Output Current: 48mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 3.6V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 350uA
Gain Bandwidth Product: 6MHz
Features: Enable/shutdown function
Input Voltage Noise Density: 12nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.147 g

Overview

The DIO2031 (single), DIO2032 (dual), DIO2033 (single with shutdown), DIO2034 (quad) and DIO2036 (Triple) are amplifiers with very low noise, low voltage, and low power operational. The DIO2031/2/3/4/6 has a high gain-bandwidth product of 6MHz, a slew rate of 3.6V/µs, and a quiescent current of 500µA amplifier at 5V typically. The DIO2031/2/3/4/6 is designed to provide optimal performance in low voltage and low noise systems. All these chips provide rail-to-rail output swing into heavy loads. The input common-mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for DIO2031/2/3/4/6. The DIO2033 has a power-down disable feature that reduces the supply current to 90nA individually. They are specified over the extended industrial temperature range (-40°C to +125°C). The operating range is from 2.5V to 5.5V.
