DIOODatasheet (PDF)

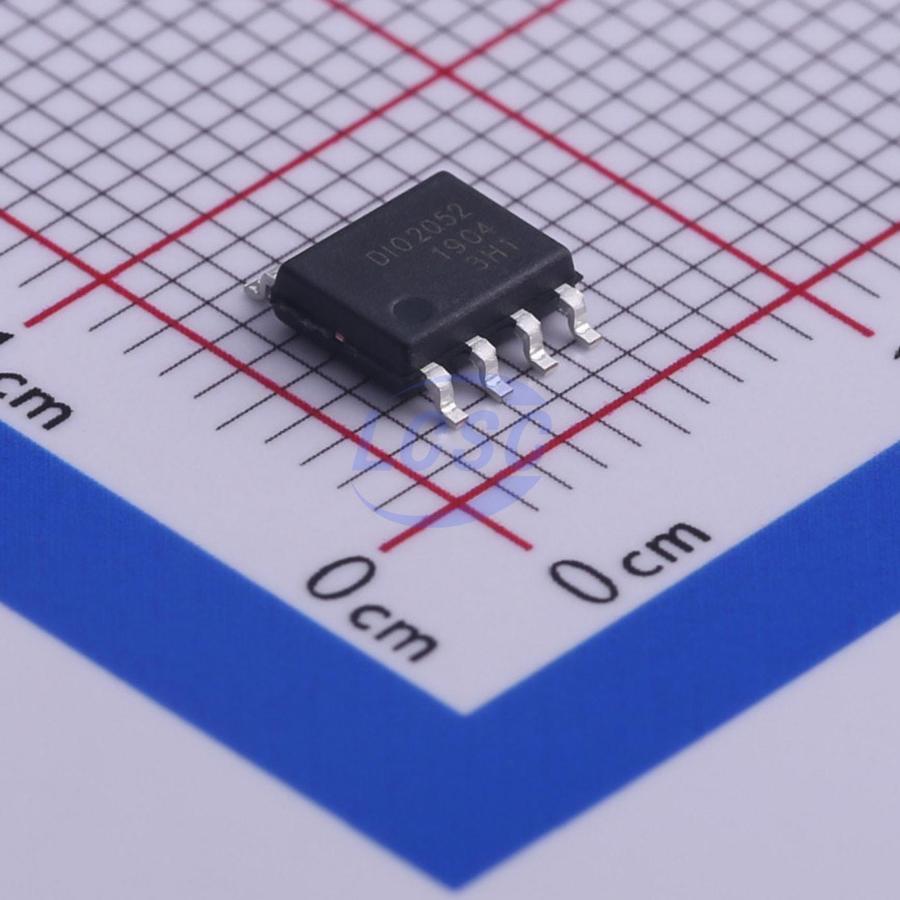

DIO2052SO8
2 650uV 0.5pA 550kHz 16uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps
SOIC-8RoHSActive
Single/Dual/Quad, Rail-to-Rail Low Power Amplifier
- Manufacturer
- DIOO
- Manufacturer part #
- DIO2052SO8
- Store part #
- C444536
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,350 in stock
#C444536
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.95 | ₹149.75 |
| 50+ | ₹23.95 | ₹1,197.50 |
| 150+ | ₹21.37 | ₹3,205.50 |
| 500+ | ₹18.15 | ₹9,075.00 |
| 2,500+ | ₹16.72 | ₹41,800.00 |
| 5,000+ | ₹15.86 | ₹79,300.00 |
5 × ₹29.95
₹149.75
excl. GST
₹176.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DIO2052SO8
₹149.75 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 650uV
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.5pA
- Gain Bandwidth Product
- 550kHz
- Quiescent Current
- 16uA
- Features
- Built-in compensation
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.188 g
Overview
Single/dual/quad channel rail-to-rail CMOS operational amplifier with ultra low offset. Features include wide input common-mode voltage range and broad output voltage swing with operating supply voltage from 1.8V to 5.5V. Products are fully specified over the extended -40°C to ±125°C temperature range. Provides 550kHz bandwidth consuming ultra low current of 16μμ per channel. Very low input bias currents of 0.5pA enable it ideal for integrators, photodiode amplifiers, and piezoelectric sensors.
Applications
- ASIC Input or Output Amplifier
- Sensor Interface
- Piezo Electric Transducer Amplifier
- Medical Instrumentation
- Audio Output
- Portable Systems
- Smoke Detectors
- Notebook PC
Key features
- Rail-to-Rail Input and Output
- 0.65mV Typical offset (Vos)
- Unity Gain Stable
- Gain Bandwidth Product: 550kHz
- Very low input bias currents: 0.5pA
- Wide supply range: 1.8V to 5.5V
- Input Voltage Range: -0.1V to +5.68 with V+ = 5.5V
- Ultra low power: 16μμ per channel
- Small size packaging best for portable applications
- DIO2051 Available in SC70 - 5 and SOT23 - 5
- DIO2052 Available in SOIC - 8, MSOP - 8 and DQFN - 9
- DIO2054 Available in TSSOP - 14 and SOIC - 14
