DIOODatasheet (PDF)

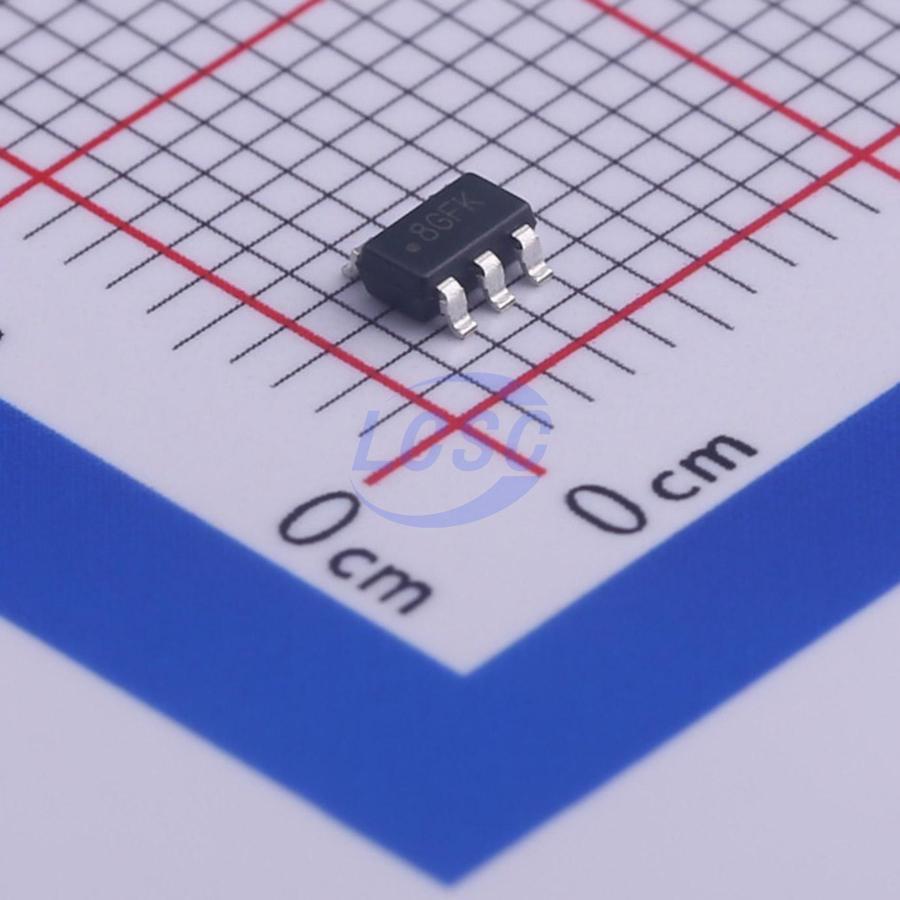

DIO20721ST5
85mA 1 500uV 6.5V/us 1pA 106dB 620uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- DIOO
- Manufacturer part #
- DIO20721ST5
- Store part #
- C444539
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,020 in stock
#C444539
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.94 | ₹124.70 |
| 50+ | ₹19.81 | ₹990.50 |
| 150+ | ₹17.61 | ₹2,641.50 |
| 500+ | ₹14.86 | ₹7,430.00 |
| 3,000+ | ₹12.86 | ₹38,580.00 |
| 6,000+ | ₹12.12 | ₹72,720.00 |
| 9,000+ | ₹11.97 | ₹1,07,730.00 |
| 21,000+ | ₹11.87 | ₹2,49,270.00 |
5 × ₹24.94
₹124.70
excl. GST
₹147.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO20721ST5
₹124.70 for 5 + GST
Specifications
- Output Current
- 85mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 6.5V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 106dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 620uA
- Gain Bandwidth Product
- 10MHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 28nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The Dl02072x is a single/dual/quad channel, rail-to-rail/operational amplifier which allows low load impedances to be driven. With a 10MHz unity-gain frequency and low noise, low distortion and high output current capability, the Di02072x provides excellent choice for high quality systems. The input common-mode voltage range includes ground, and the maximum input offset voltage is 0.5mV (guaranteed). They are also capable of comfortably driving large capacitive loads. DIO2072x is offered in Green or RoHS package and ESD (HBM) excesses 2kV. It is specified over the extended -40 to 125°C
Applications
- Portable Equipment
- Active Filters
- Data Acquisition
- Test Equipment
- Broadband Communication
- Process Control
- Audio and Video Processing
Key features
- Rail-to-Rail Input and Output
- 0.5mV Typical offset (Vos)
- Low Distortion
- Gain Bandwidth Product: 10MHz
- Wide supply range: 2.5V to 5.5V
- 620μA/Amplifier typical supply current
- Slew rate: 6.5V/μs
