DIOODatasheet (PDF)

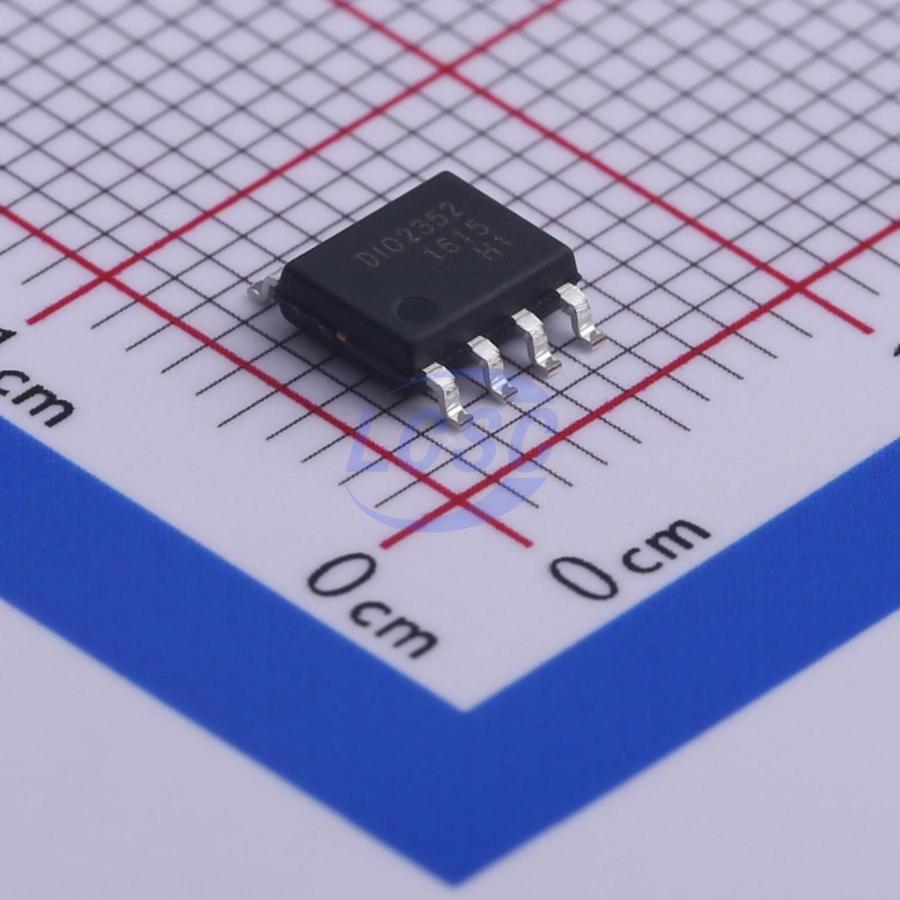

DIO2352SO8
55nA 12uV 1V/us 80dB 20pA 730uA 1.2MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS CompliantActive
12uV Vos, 1.2MHz, RRIO CMOS High-Precision Amplifier
- Manufacturer
- DIOO
- Manufacturer part #
- DIO2352SO8
- Store part #
- C444580
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,564 in stock
#C444580
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.67 | ₹53.67 |
| 10+ | ₹42.60 | ₹426.00 |
| 30+ | ₹38.04 | ₹1,141.20 |
| 100+ | ₹32.16 | ₹3,216.00 |
| 500+ | ₹29.56 | ₹14,780.00 |
| 1,000+ | ₹28.03 | ₹28,030.00 |
1 × ₹53.67
₹53.67
excl. GST
₹63.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DIO2352SO8
₹53.67 for 1 + GST
Specifications
- Output Current
- 55nA
- Vos - Input Offset Voltage
- 12uV
- Slew Rate
- 1V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Quiescent Current
- 730uA
- Gain Bandwidth Product
- 1.2MHz
- Features
- Built-in compensation;Zero drift / auto-zero
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.108 g
Overview
The DIO235X is an ultra-low offset voltage rail-to-rail input and output voltage feedback amplifier. They have a wide input common-mode voltage range and output voltage swing, and take the operating supply voltage is from 2.5 to 5.5V. They provide 1.2MHz bandwidth. The DIO235X features an offset voltage of only 12μV and drift of 0.01μV/°C, which makes the product perfect in applications of intolerant errors. Temperature/position/pressure sensors and medical equipment can benefit greatly from nearly zero drift over their operating temperature range.
Applications
- Temperature measurement
- Pressure sensor
- Precision current sensing
- Strain Gage Amplifier
- Medical instrument
- Thermocouple amplifier
- Handheld Test Equipment
Key features
- Rail-to-Rail Input and Output
- Low offset (VOS): 12μV typ.
- Input offset drift: 0.01μV/°C
- Unity Gain Stable
- Gain Bandwidth Product: 1.2MHz
- Very low input bias currents: 20pA
- Wide supply range: 2.5V to 5.5V
- Single Supply Operation
- Low power: 0.73mA per channel
- Small size packaging best for portable applications
