DIOO

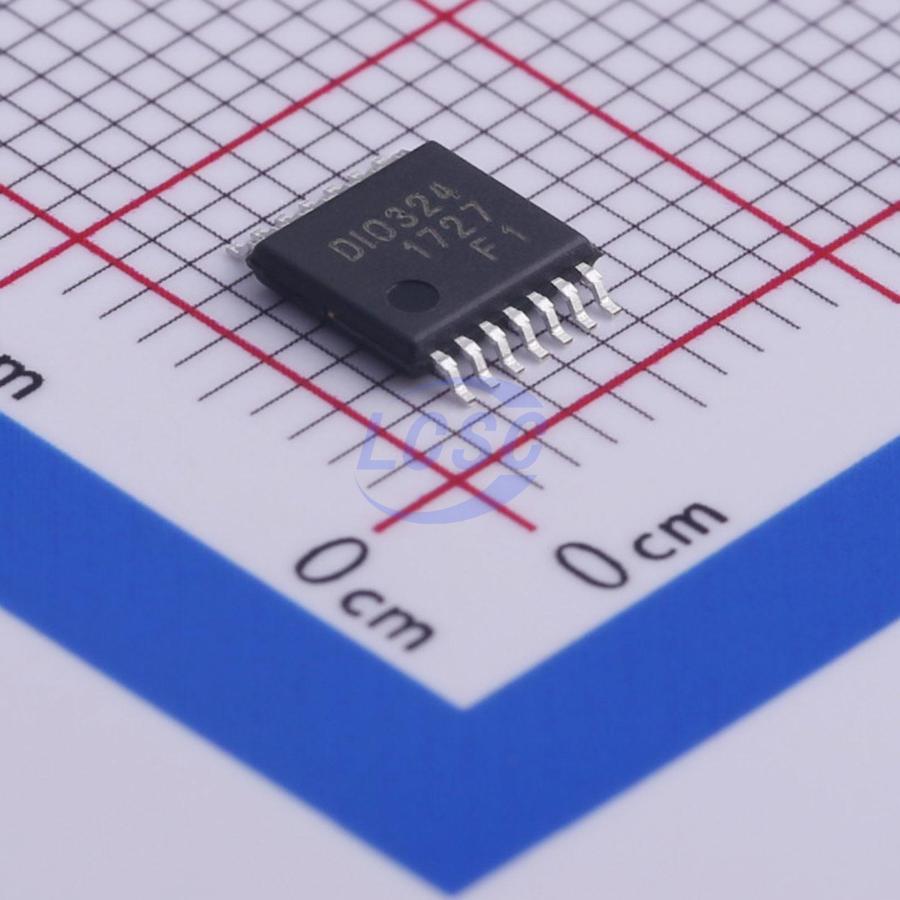

DIO324TP14

4 3mV 55pA 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14ROHS CompliantActive

1MHz, Rail-to-Rail I/O CMOS Amplifier

Manufacturer: DIOO
Manufacturer part #: DIO324TP14
Store part #: C444630
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,420 in stock

#C444630

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹27.02	₹135.10
50+	₹23.63	₹1,181.50
150+	₹22.19	₹3,328.50
500+	₹20.37	₹10,185.00
2,500+	₹19.57	₹48,925.00
5,000+	₹19.09	₹95,450.00

Quantity (min 5, multiples of 5)

5 × ₹27.02

₹135.10

excl. GST

₹159.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

DIO324TP14

₹135.10 for 5 + GST

Specifications

Number of Channels: 4
Vos - Input Offset Voltage: 3mV
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 55pA
Quiescent Current: 40uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2V~5.55V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.095 g

Overview

DIO321 (single), DIO358 (dual) and DIO324 (quad) are rail-to-rail CMOS operational amplifiers with ultra low offset. Features include wide input common-mode voltage range and broad output voltage swing with operating supply voltage from 2.0V to 5.5V. Products are fully specified over the extended –40 to ±125°C temperature range. DIO321/358/324 provide 1MHz bandwidth consuming ultra low current of 40µA per channel. Very low input bias currents of 5pA enable them ideal for integrators, photodiode amplifiers, and piezoelectric sensors.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Piezo Electric Transducer Amplifier
Medical Instrumentation
Audio Output
Portable Systems
Smoke Detectors
Notebook PC Battery-Powered equipment

Key features

Rail-to-Rail Input and Output
Maxim offset (vos) DIO321/358/324 @ ±3mV DIO321A/358A/324A @1mV Unity Gain Stable
Gain Bandwidth Product: 1MHHz
Very low input bias currents: 55pA
Wide supply range: 2.0V to 5.55V
Input Voltage Range: -0.1V to +5.68 with V+=5.5V
Ultra low power: 40µA per chaannel
Compact Package best for portable
