DIOODatasheet (PDF)

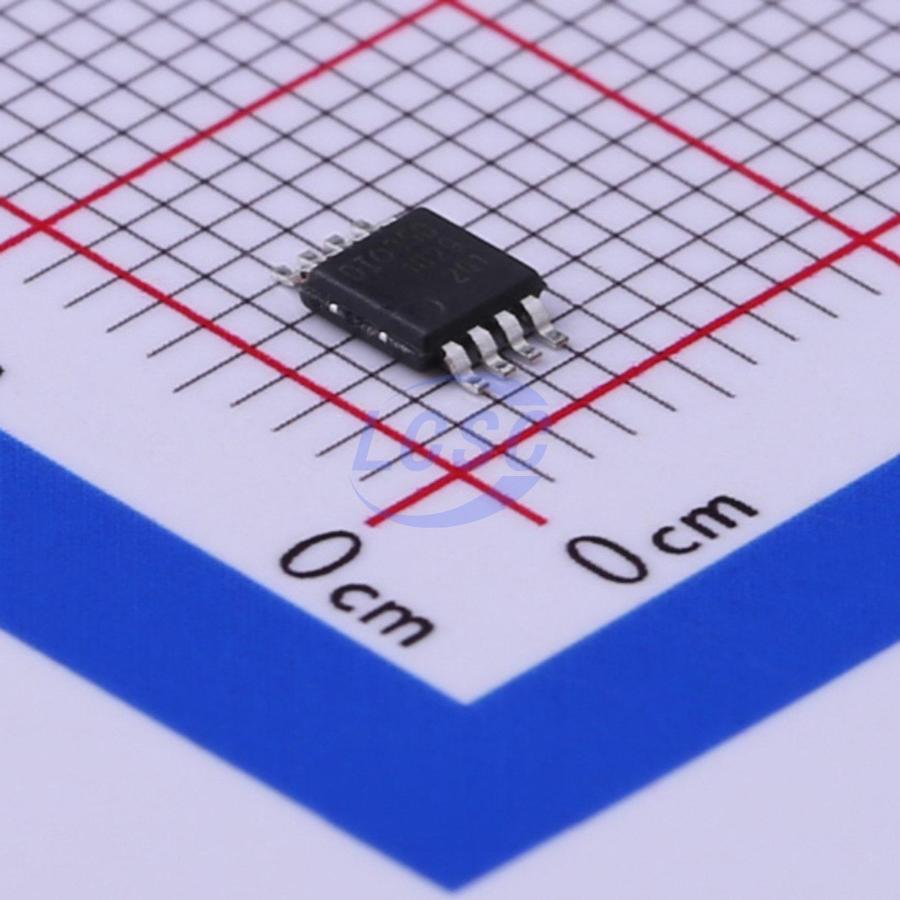

DIO3582MP8
40mA 2 3mV 600V/ms 5pA 75dB 60uA 1.4MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS CompliantActive
- Manufacturer
- DIOO
- Manufacturer part #
- DIO3582MP8
- Store part #
- C444634
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,780 in stock
#C444634
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.77 | ₹123.85 |
| 50+ | ₹19.45 | ₹972.50 |
| 150+ | ₹17.17 | ₹2,575.50 |
| 500+ | ₹14.33 | ₹7,165.00 |
| 3,000+ | ₹13.06 | ₹39,180.00 |
| 6,000+ | ₹12.30 | ₹73,800.00 |
5 × ₹24.77
₹123.85
excl. GST
₹146.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO3582MP8
₹123.85 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 5pA
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 60uA
- Gain Bandwidth Product
- 1.4MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 45nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.142 g
Overview
DIO3581 (single), Dl03582 (dual） and Dl03584 (quad) are rail-to-rail cMos operational amplifiers with ultralow offset. Features include wide input common-mode voltage range and broad output voltage swing with operating supply voltage from 2V to 5.5V. Products are fully specified over the extended -40 to 125°C temperature range. DIO3581/DIO3582/DIO3584 provide 1.4MHz bandwidth consuming ultra low current of 60μA per channel. Very low input bias currents of 5pA enable them ideal for integrators, photodiode amplifiers, and piezoelectric sensors.
Applications
- ASIC Input or Output Amplifier
- Sensor Interface
- Piezo Electric Transducer Amplifier
- Medical Instrumentation
- Audio Output
- Portable Systems
- Smoke Detectors
- Notebook PC
- Battery-Powered equipment
Key features
- Rail-to-Rail Input and Output
- Maxim offset (Vos): DIO3581/DI03582/DI03584 @ ±3mV
- Unity Gain Stable
- Gain Bandwidth Product: 1.4MHz
- Very low input bias currents: 5pA
- Wide supply range: 2V to 5.5V
- Input Voltage Range: -0.1V to +5.6V with V+ = 5.5V
- Ultra low power: 60μA per channel
- Compact Package best for portable applications
