DIOODatasheet (PDF)

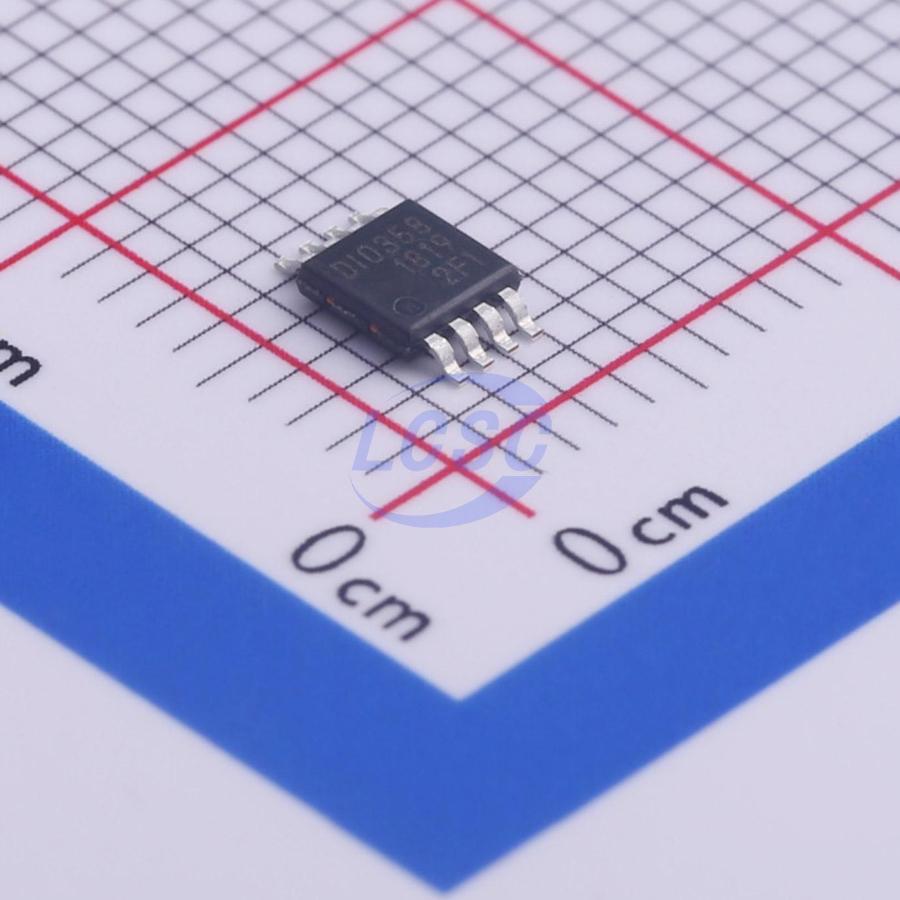

DIO358MP8
2 3mV 5pA 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
1MHz, 40uA, Rail-to-Rail I/O CMOS Amplifier
- Manufacturer
- DIOO
- Manufacturer part #
- DIO358MP8
- Store part #
- C444638
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,930 in stock
#C444638
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.73 | ₹93.65 |
| 50+ | ₹14.67 | ₹733.50 |
| 150+ | ₹12.93 | ₹1,939.50 |
| 500+ | ₹10.76 | ₹5,380.00 |
| 3,000+ | ₹9.79 | ₹29,370.00 |
| 6,000+ | ₹9.22 | ₹55,320.00 |
5 × ₹18.73
₹93.65
excl. GST
₹110.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO358MP8
₹93.65 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 5pA
- Quiescent Current
- 40uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.138 g
Overview
DIO321 (single), DIO358 (dual) and DIO324 (quad) are rail-to-rail CMOS opeerational amplifiers with ultra low offset. Featurres include wide input common-mode voltage rrange and broad output voltage swing with operatting supply voltage from 2.0V to 5.5V. Products aree fully specified over the extended –40 to ±125°C teemperature range. DIO321/358/324 provide 1MHz bandwidth consuming ultra low curreent of 40µA per channel. Very low input bias curreents of 5pA enable them ideal for integrators, phootodiode amplifiers, and piezoelectric sensors.
Applications
- ASIC Input or Output Amplifier
- Sensor Interface
- Piezo Electric Transducer Amplifier
- Medical Instrumentation
- Audio Output
- Portable Systems
- Smoke Detectors
- Notebook PC Battery-Powered equipment
Key features
- Rail-to-Rail Input and Output
- Maxim offset (vos) DIO321/358/324 @ ±3mV DIO321A/358A/324A @1mV Unity Gain Stable
- Gain Bandwidth Product: 1MHHz
- Very low input bias currents: 55pA
- Wide supply range: 2.0V to 5.55V
- Input Voltage Range: -0.1V to +5.68 with V+=5.5V
- Ultra low power: 40µA per chaannel
- Compact Package best for porrtable
