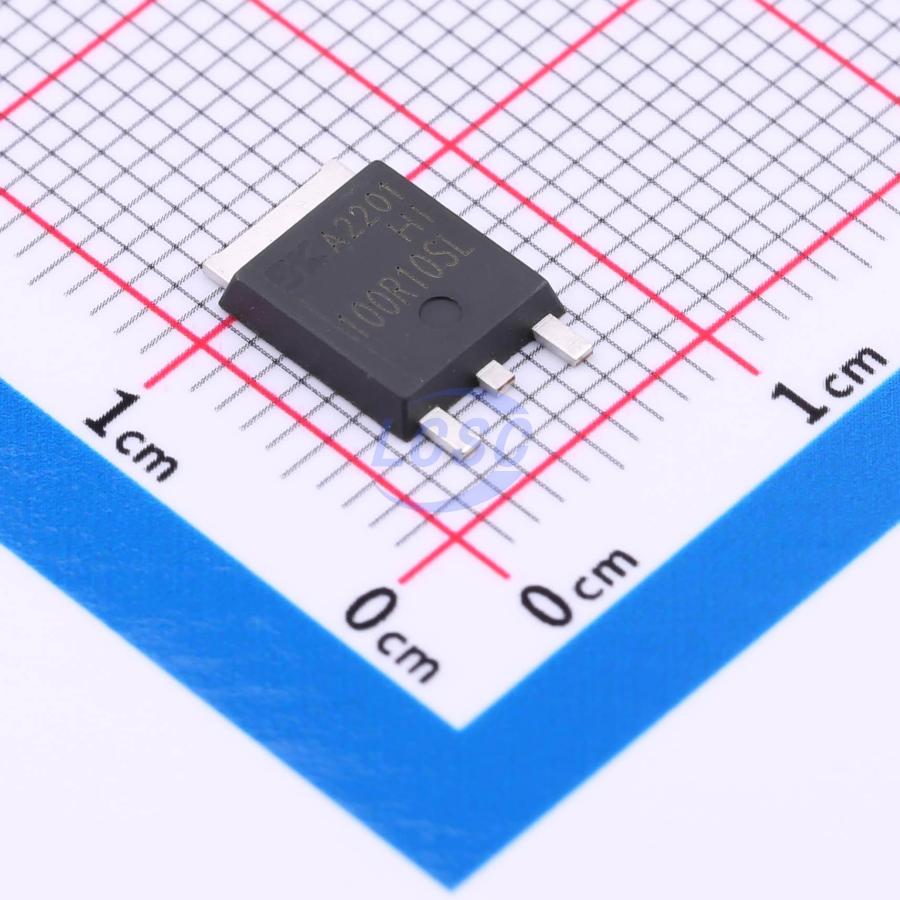

DK5V100R10SL
150kHz 1 10mΩ TO-252 Power Supply Controllers, Monitors RoHS
High-performance synchronous rectification chip
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V100R10SL
- Store part #
- C3010415
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,611 in stock
#C3010415
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.61 | ₹100.61 |
| 10+ | ₹80.97 | ₹809.70 |
| 30+ | ₹71.24 | ₹2,137.20 |
| 100+ | ₹61.53 | ₹6,153.00 |
| 500+ | ₹55.70 | ₹27,850.00 |
| 1,000+ | ₹52.68 | ₹52,680.00 |
1 × ₹100.61
₹100.61
excl. GST
₹118.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DK5V100R10SL
₹100.61 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 100V
- Function
- Adaptive synchronous rectification control;Multi-mode compatible control
- Frequency - Switching
- 150kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 10mΩ
- Operating Temperature
- -40℃~+150℃
- Operating Voltage
- 85V~265V
- Turn-Off Delay
- 30ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
DK5V100R10SL is a simple and efficient two-pin synchronous rectification IC that significantly reduces the conduction losses of conventional Schottky diodes, improving overall system efficiency. The IC integrates a 100V power NMOS internally, with only two functional pins — A and K — corresponding to the anode and cathode of a Schottky diode, enabling direct drop-in replacement of equivalent Schottky rectifier diodes currently on the market. Packaged in TO-252.
Applications
- USB charger
- Adapter
- LED driver
Key features
- Flyback PSR/SSR applications
- Ultra-low V<sub>F</sub>
- Ultra-low temperature rise
- Integrated 100V 10mΩ power NMOS
- CCM, DCM & QR mode operation
- Self-powered technology, no external supply required
- Intelligent detection system, no front-end sync signal required
- Improved EMC performance
- Direct drop-in replacement for Schottky diodes
