DO1416

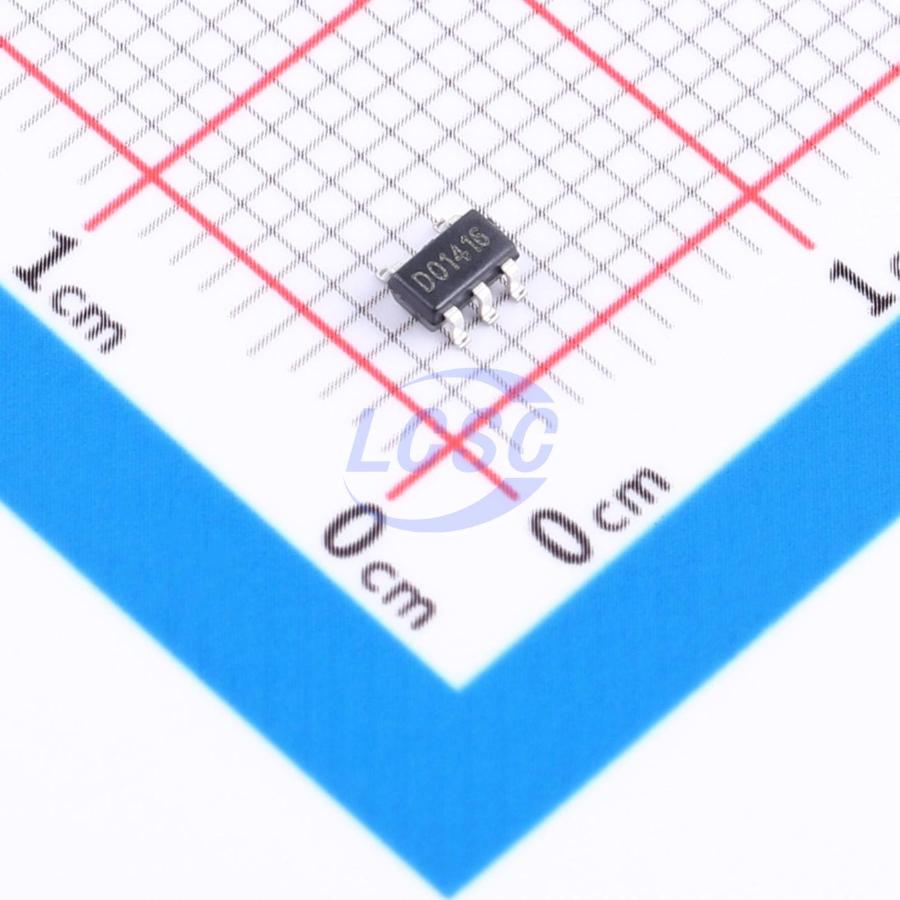

4.5V~25V 2A 2A SOT-23-5 Gate Drivers
SOT-23-5RoHSActive
- Manufacturer
- DOINGTER
- Manufacturer part #
- DO1416
- Store part #
- C52140033
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,935 in stock
#C52140033
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.08 | ₹135.40 |
| 50+ | ₹21.42 | ₹1,071.00 |
| 150+ | ₹18.99 | ₹2,848.50 |
| 500+ | ₹15.96 | ₹7,980.00 |
| 3,000+ | ₹14.61 | ₹43,830.00 |
| 6,000+ | ₹13.79 | ₹82,740.00 |
5 × ₹27.08
₹135.40
excl. GST
₹159.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DO1416
₹135.40 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 50ns
- Quiescent Current
- 500uA
- Input Logic Level - High
- 1V~2.5V
- Voltage - Supply
- 4.5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The DO1416 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up resistant CMOS technology enables a single-chip integrated architecture with high robustness.
Applications
- Switch-mode power supplies
- General-purpose gate drive
- Drives MOSFETs and IGBTs
Key features
- Non-inverting/inverting input-output
- Compatible with 3.3V and 5V input logic
- 4.5V to 25V single-supply range
- High capacitive load drive capability
- Operating temperature range: -40℃ to 125℃
- Undervoltage lockout
- Turn-on/turn-off delay: Ton/Toff = 25ns/25ns
- 2A peak source and sink current drive capability
- SOT23-5 package
