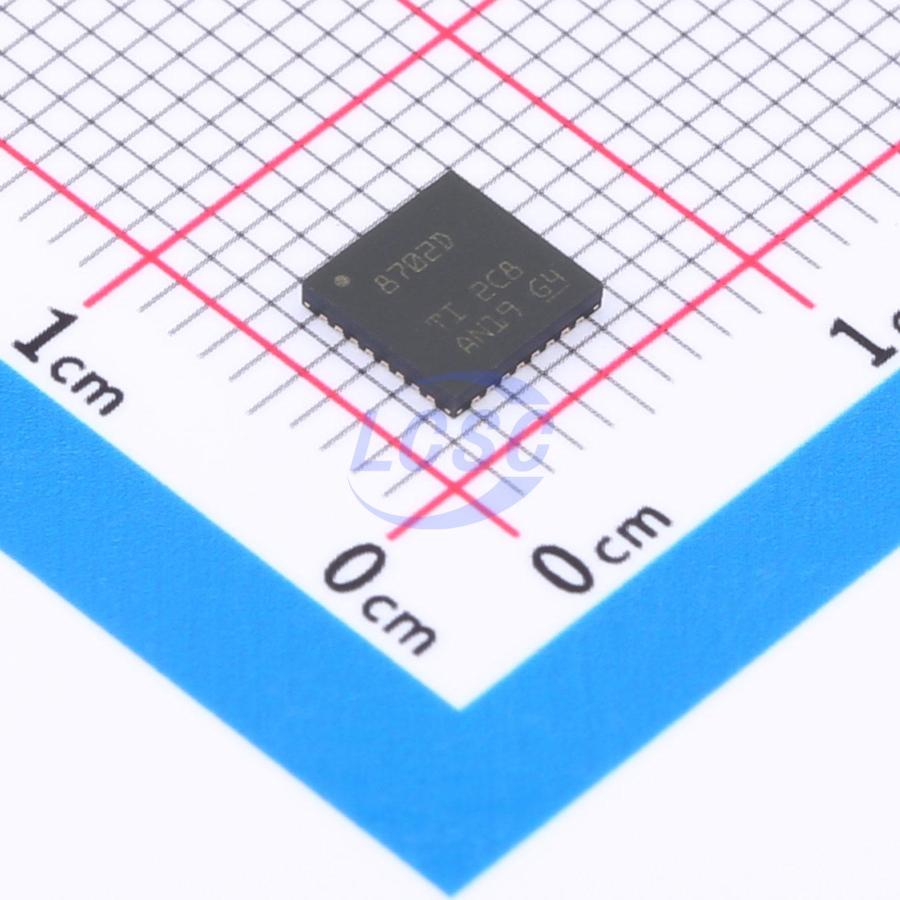

DRV8702DQRHBRQ1
5.5V~45V VQFN-32-EP(5x5) Motor Drivers, Controllers RoHS
Automotive half-bridge gate driver
- Manufacturer
- TI
- Manufacturer part #
- DRV8702DQRHBRQ1
- Store part #
- C1848377
- Package / case
- VQFN-32-EP(5x5)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,518 in stock
#C1848377
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹171.50 | ₹171.50 |
| 10+ | ₹156.33 | ₹1,563.30 |
| 30+ | ₹146.79 | ₹4,403.70 |
| 100+ | ₹136.81 | ₹13,681.00 |
| 500+ | ₹132.49 | ₹66,245.00 |
| 1,000+ | ₹130.53 | ₹1,30,530.00 |
1 × ₹171.50
₹171.50
excl. GST
₹202.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV8702DQRHBRQ1
₹171.50 for 1 + GST
Specifications
- Features
- Overcurrent Protection;Input under-voltage protection
- Number of Channels
- 1
- Voltage - Supply
- 5.5V~45V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.5V~5.25V
- Input Logic Level - Low
- 0V~800mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The DRV870xD-Q1 device is a small half-bridge gate driver that uses two external N-channel MOSFETs and is designed to drive unidirectional brushed DC motors or solenoid loads. It can be easily connected to the controller circuit through the PWM interface. The internal sense amplifier provides adjustable current control. The integrated charge pump provides 100% duty cycle support and can be used to drive an external reverse battery switch. The independent half-bridge mode supports half-bridge sharing, enabling sequential control of multiple DC motors in a cost-effective manner. This gate driver has built-in circuits that can regulate the winding current using PWM current chopping with a fixed off-time. The DRV870xD-Q1 device uses intelligent gate drive technology, eliminating the need for any external gate components (resistors and Zener diodes) and providing protection for external FETs. The intelligent gate drive architecture optimizes the dead time to avoid any shoot-through issues, offers flexibility in reducing electromagnetic interference (EMI) through programmable slew rate control technology, and prevents any gate short-circuit problems. In addition, this architecture also includes active and passive pull-down features to prevent any dv/dt gate turn-on.
Applications
- Fuel pump
- Unidirectional brushed DC motor
- Relay or solenoid
- Unipolar load
Key features
- Compliant with application device temperature grade 1 for automotive applications: ambient operating temperature range -40°C to +125°C
- Single-channel half-bridge gate driver for two external N-channel MOSFETs
- Supports 100% PWM duty cycle operation
- Supply voltage range: 5.5V to 45V
- PWM control interface
- Serial interface for configuration (DRV8703D-Q1)
- Smart gate drive architecture – adjustable slew rate control
- Supports 1.8V, 3.3V, and 5V logic inputs
- Current shunt amplifier
- Integrated PWM current regulation
- Low-power sleep mode
- Protection features: UVLO, CPUV lockout, OCP, GDF, TSD, watchdog timer (DRV8703D-Q1), nFAULT output
