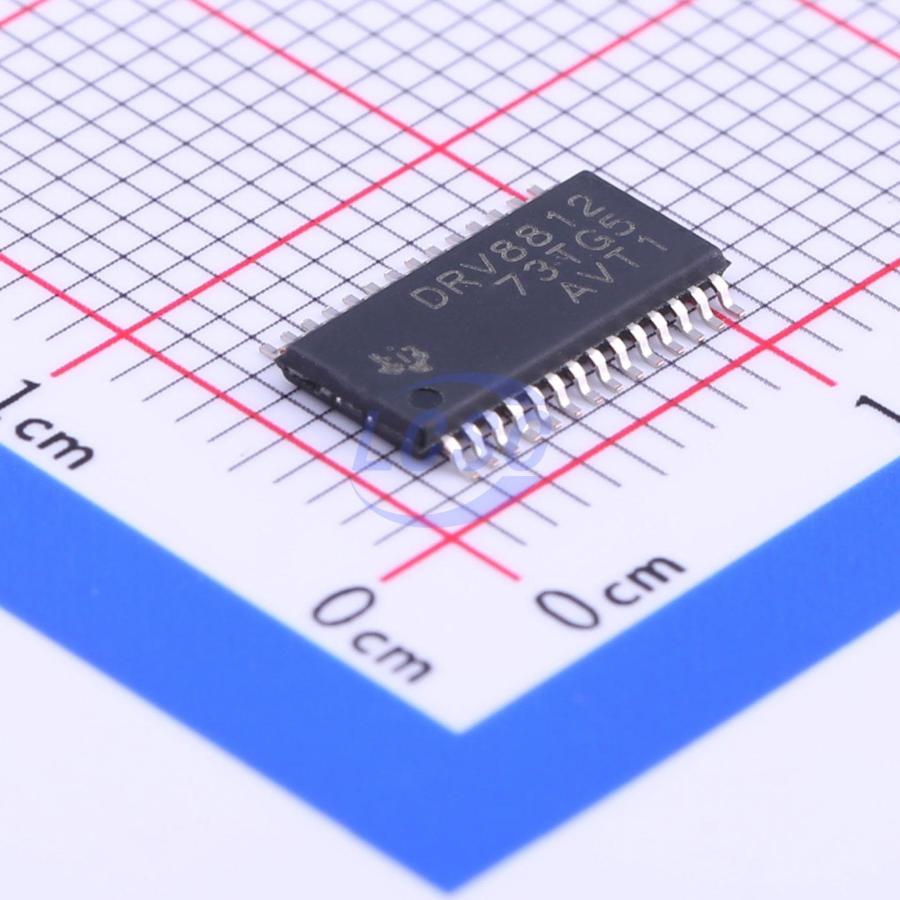

DRV8812PWPR
HTSSOP-28 Motor Drivers, Controllers RoHS
Dual-Bridge Motor Controller IC
- Manufacturer
- TI
- Manufacturer part #
- DRV8812PWPR
- Store part #
- C55767
- Package / case
- HTSSOP-28
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,441 in stock
#C55767
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹167.73 | ₹167.73 |
| 10+ | ₹139.48 | ₹1,394.80 |
| 30+ | ₹123.85 | ₹3,715.50 |
| 100+ | ₹106.24 | ₹10,624.00 |
| 500+ | ₹91.91 | ₹45,955.00 |
| 1,000+ | ₹88.43 | ₹88,430.00 |
1 × ₹167.73
₹167.73
excl. GST
₹197.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8812PWPR
₹167.73 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Built-in charge pump;Dead-time / shoot-through protection
- Technology
- Yes
- Interface
- Parallel
- Operating Temperature
- -40℃~+85℃
- Output Current
- 1.6A
- RDS(on)
- 630mΩ
- Motor Drive Voltage(Vm)
- 8.2V~45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
The DRV8812 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and can drive a bipolar stepper motor or two DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as full Hbridges to drive the motor windings. The DRV8812 is capable of driving up to 1.6-A of output current (with proper heatsinking, at 24 V and 25°C). A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable. Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature. The DRV8812 is available in a 28-pin HTSSOP package with PowerPAD and in a 28-pin QFN package PowerPAD (Eco-friendly: RoHS & no Sb/Br).
Applications
- Automatic Teller Machines
- Money Handling Machines
- Video Security Cameras
- Printers
- Scanners
- Office Automation Machines
- Gaming Machines
- Factory Automation Robotics
Key features
- 8.2-V to 45-V Operating Supply Voltage Range
- 1.6-A Maximum Drive Current at 24 V and TA = 25°C
- Dual H-Bridge Current Control Motor Driver
- Drive a Bipolar Stepper or Two DC Motors
- Four Level Winding Current Control
- Multiple Decay Modes
- Mixed Decay
- Slow Decay
- Fast Decay
- Industry Standard Parallel Digital Control Interface
- Low Current Sleep Mode
- Built In 3.3-V Reference Output Small Package and Footprint
- Protection Features
- Overcurrent Protection (OCP)
- Thermal Shutdown (TSD)
- VM Undervoltage Lockout (UVLO)
- Fault Condition Indication Pin (nFAULT)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HTD8831TTPN#C22391202Jiaxing Heroic Elec Tech · ETSSOP-28 | Jiaxing Heroic Elec Tech | ETSSOP-28 | 2,862 | ₹67.58 · 2,862 in stock | View |
