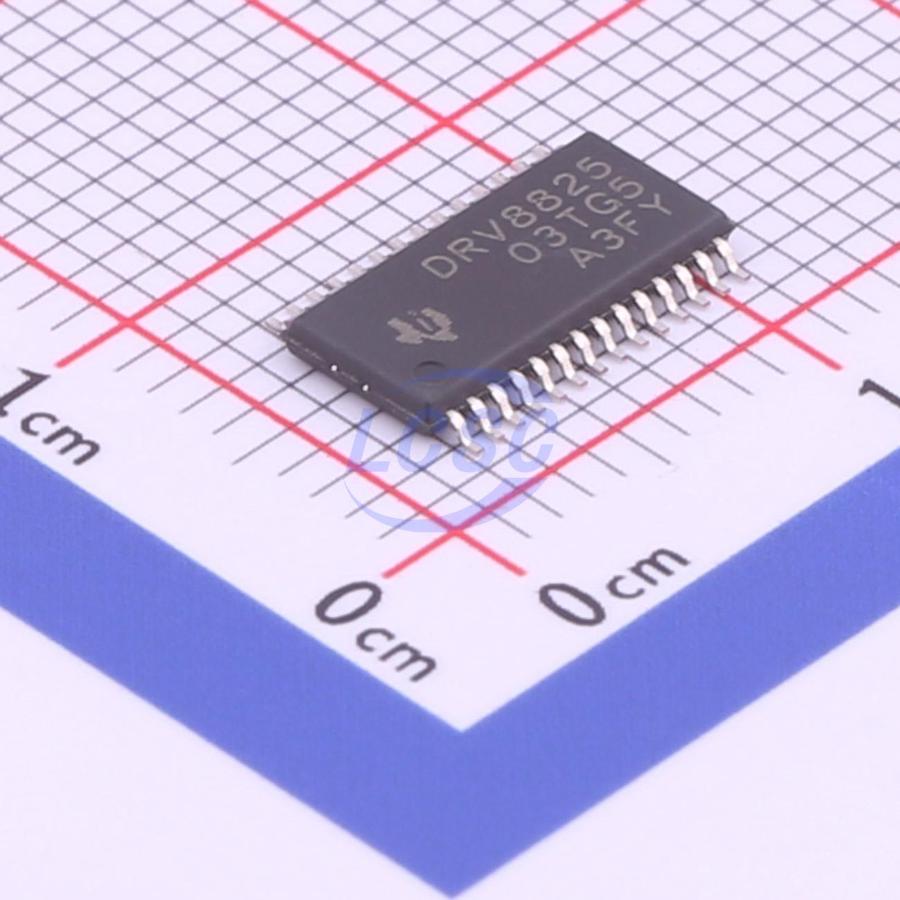

DRV8825PWPR

The DRV8825 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers and a microstepping indexer, and is intended to drive a bipolar stepper motor. The output driver block consists of N-channel power MOSFET’s configured as full H-bridges to drive the motor windings. The DRV8825 is capable of driving up to 2.5 A of current from each output (with proper heat sinking, at 24 V and 25°C). A simple STEP/DIR interface allows easy interfacing to controller circuits. Mode pins allow for configuration of the motor in full-step up to 1/32-step modes. Decay mode is configurable so that slow decay, fast decay, or mixed decay can be used. A low-power sleep mode is provided which shuts down internal circuitry to achieve very low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin. Internal shutdown functions are provided for overcurrent, short circuit, under voltage lockout and over temperature. Fault conditions are indicated via the nFAULT pin.

Applications

• Automatic Teller Machines
• Money Handling Machines
• Video Security Cameras
• Printers
• Scanners
• Office Automation Machines
• Gaming Machines
• Factory Automation Robotics

Key features

• PWM Microstepping Stepper Motor Driver
• Built-In Microstepping Indexer Up to 1/32 Microstepping
• Multiple Decay Modes
• Mixed Decay
• Slow Decay
• Fast Decay
• 8.2 V to 45 V Operating Supply Voltage Range
• 2.5 A Maximum Drive Current at 24 V and TA = 25°C
• Simple STEP/DIR Interface
• Low Current Sleep Mode
• Built-In 3.3 V Reference Output
• Small Package and Footprint
• Protection Features
• Overcurrent Protection (OCP)
• Thermal Shutdown (TSD)
• VM Undervoltage Lockout (UVLO)
• Fault Condition Indication Pin (nFAULT)
