HXY MOSFETDatasheet (PDF)

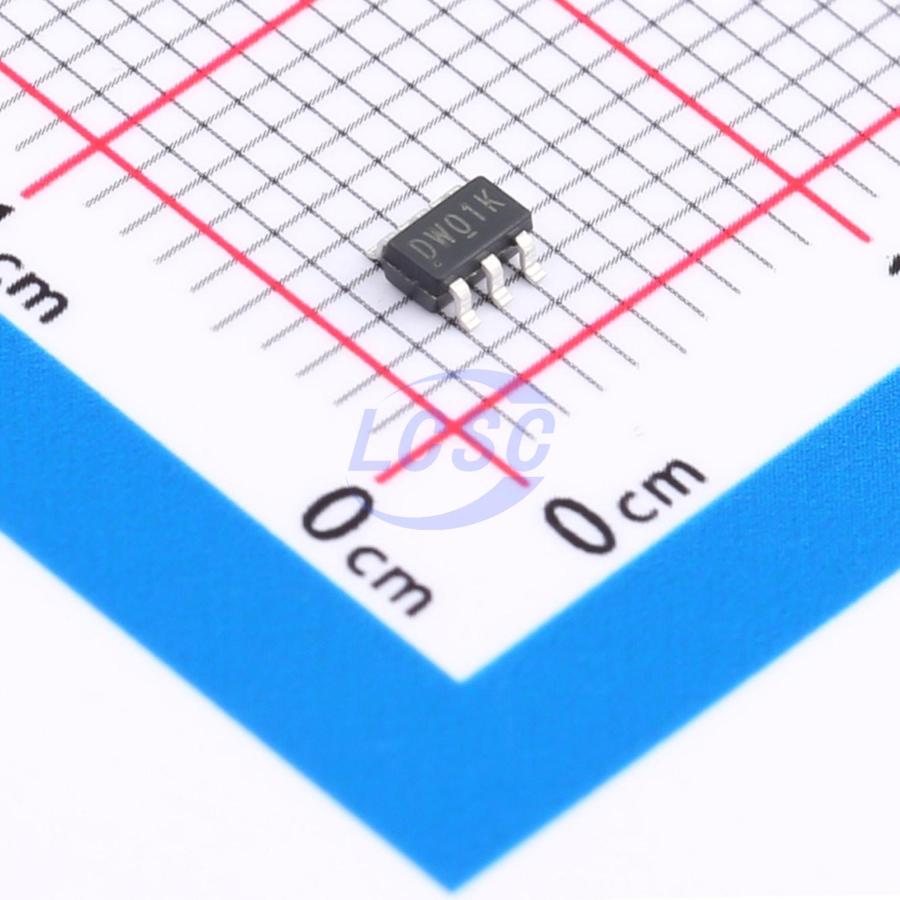

DW01
Battery Protection IC Lithium-ion/Polymer SOT23-6
SOT23-6RoHSActive
Single-cell lithium battery protection IC
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DW01
- Store part #
- C17702042
- Package / case
- SOT23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,720 in stock
#C17702042
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.30 | ₹86.00 |
| 200+ | ₹3.37 | ₹674.00 |
| 600+ | ₹2.86 | ₹1,716.00 |
| 2,000+ | ₹2.54 | ₹5,080.00 |
| 10,000+ | ₹2.18 | ₹21,800.00 |
| 20,000+ | ₹2.04 | ₹40,800.00 |
20 × ₹4.30
₹86.00
excl. GST
₹101.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DW01
₹86.00 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.5uA
- 0V Battery Charge
- Support
- Operating Voltage
- 1V~5.5V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
DW01 integrates high-precision voltage detection and delay circuits to protect batteries against overcharge, over-discharge, and overcurrent by monitoring battery voltage and current.
Applications
- Lithium-ion rechargeable battery
Key features
- High-precision voltage detection
- Discharge overcurrent detection
- Charge overcurrent detection
- Load detection
- Charger detection
- 0V charging
- Over-discharge auto-recovery
- Low current consumption: typical 1.5 µA in operating mode (Ta = +25℃), typical 0.7 µA in over-discharge mode (Ta = +25℃)
- Lead-free, halogen-free
