DW01

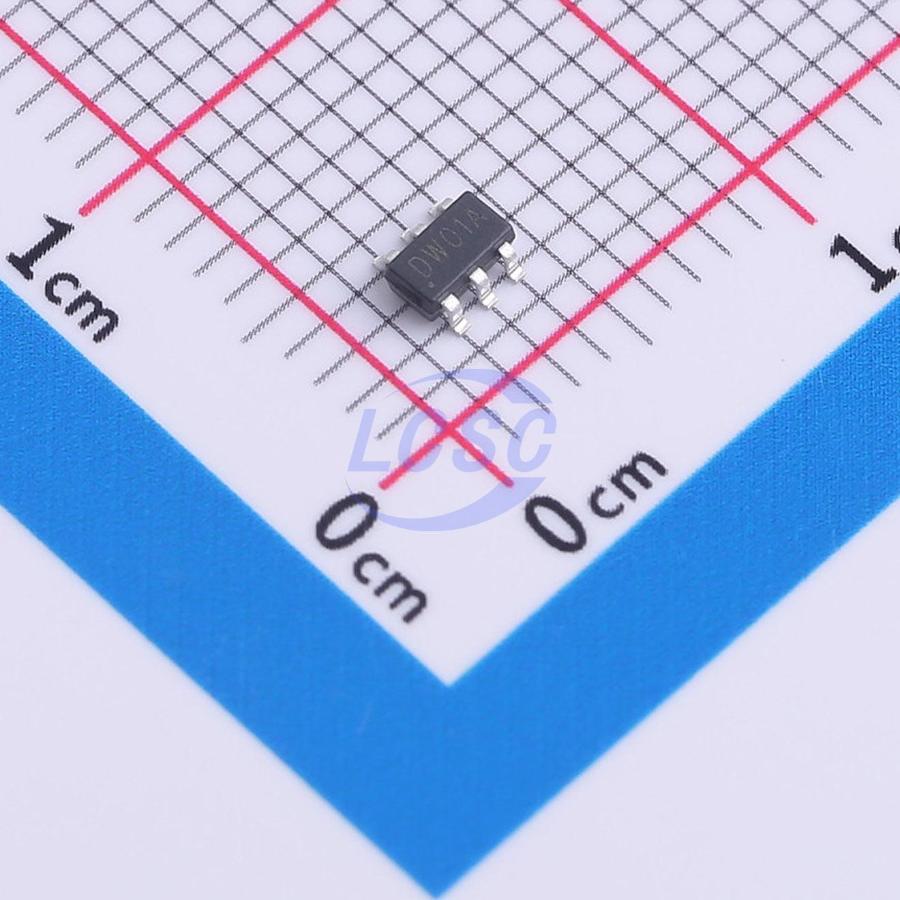

Battery Protection IC Lithium-ion/Polymer SOT-23-6
SOT-23-6ROHS CompliantActive
Lithium-ion/Lithium-polymer Battery Protection IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- DW01
- Store part #
- C917079
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32,360 in stock
#C917079
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.62 | ₹52.40 |
| 200+ | ₹1.98 | ₹396.00 |
| 600+ | ₹1.64 | ₹984.00 |
| 3,000+ | ₹1.52 | ₹4,560.00 |
| 9,000+ | ₹1.34 | ₹12,060.00 |
| 21,000+ | ₹1.23 | ₹25,830.00 |
20 × ₹2.62
₹52.40
excl. GST
₹61.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DW01
₹52.40 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 4uA
- 0V Battery Charge
- Support
- Operating Voltage
- 1.5V~8V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Overview
DW01 is a lithium battery protection IC designed to prevent battery life reduction or damage caused by overcharge, overdischarge, and overcurrent. It features high-accuracy voltage detection with time-delay circuitry, 0V charging capability, and automatic recovery function.
Applications
- Single-Cell Lithium Battery Protection Circuit
Key features
- Low operating current
- Overcharge detection 4.28V, overcharge release 4.08V
- Over-discharge detection 2.4V, over-discharge release 3.0V
- Overcurrent detection 0.15V, short-circuit current detection 1.3V
- Charger detection
- Overcurrent protection reset resistor
- Auto-recovery function
- 0V charge enable
- Wide operating voltage range
- Small package: SOT23-6
