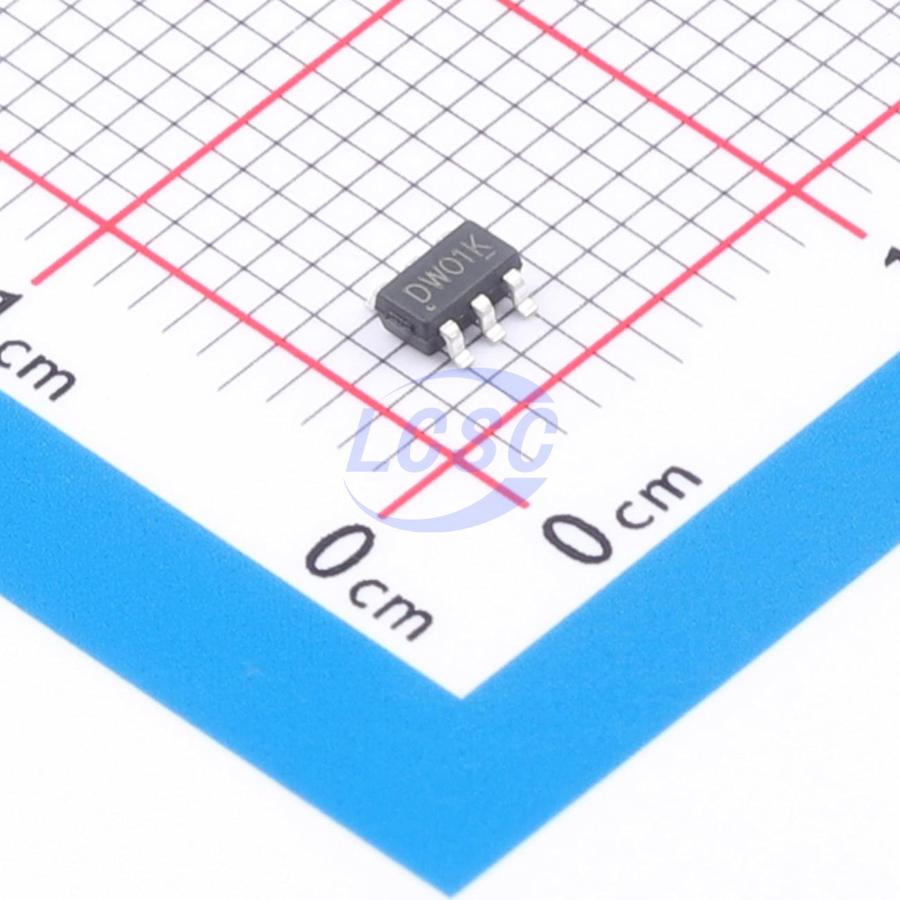

DW01-Q
Lithium Battery SOT-23-6 Battery Management
- Manufacturer
- QNHCHIP
- Manufacturer part #
- DW01-Q
- Store part #
- C53338305
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,580 in stock
#C53338305
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.86 | ₹57.20 |
| 200+ | ₹2.22 | ₹444.00 |
| 600+ | ₹1.87 | ₹1,122.00 |
| 3,000+ | ₹1.65 | ₹4,950.00 |
| 9,000+ | ₹1.47 | ₹13,230.00 |
| 21,000+ | ₹1.36 | ₹28,560.00 |
20 × ₹2.86
₹57.20
excl. GST
₹67.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DW01-Q
₹57.20 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 4uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 1.5V~8V
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.041 g
Overview
DW01-Q is a lithium-ion/polymer battery protection circuit designed to prevent battery life degradation or damage caused by overcharge, overdischarge, and overcurrent. DW01-Q features high-precision voltage detection and delay circuitry, with 0V charging capability, abnormal charge detection, overcharge latch, and overdischarge auto-recovery functions. It is not suitable for products with wireless and RF signal routing or poor shielding. Before using this product, the finished product must be validated. The ultra-compact package and minimal external component requirements make DW01-Q ideal for integration into the confined space of battery packs. The precise ±50mV overcharge detection voltage ensures safe and sufficient charging. The extremely low standby current minimizes battery drain during storage.
Applications
- Single-Cell Li-Ion/Li-Polymer Battery Pack Protection IC
Key features
- Low operating current
- Overcharge detection 4.280V, overcharge release 4.08V
- Over-discharge detection 2.4V, over-discharge release 3.0V
- Overcurrent detection 0.16V, short-circuit current detection 1.3V
- Overcurrent protection reset resistor
- Charger detection
- Charging anomaly detection
- Auto-recovery function
- 0V charging support
- Wide operating voltage range
- Small package: SOT23-6
