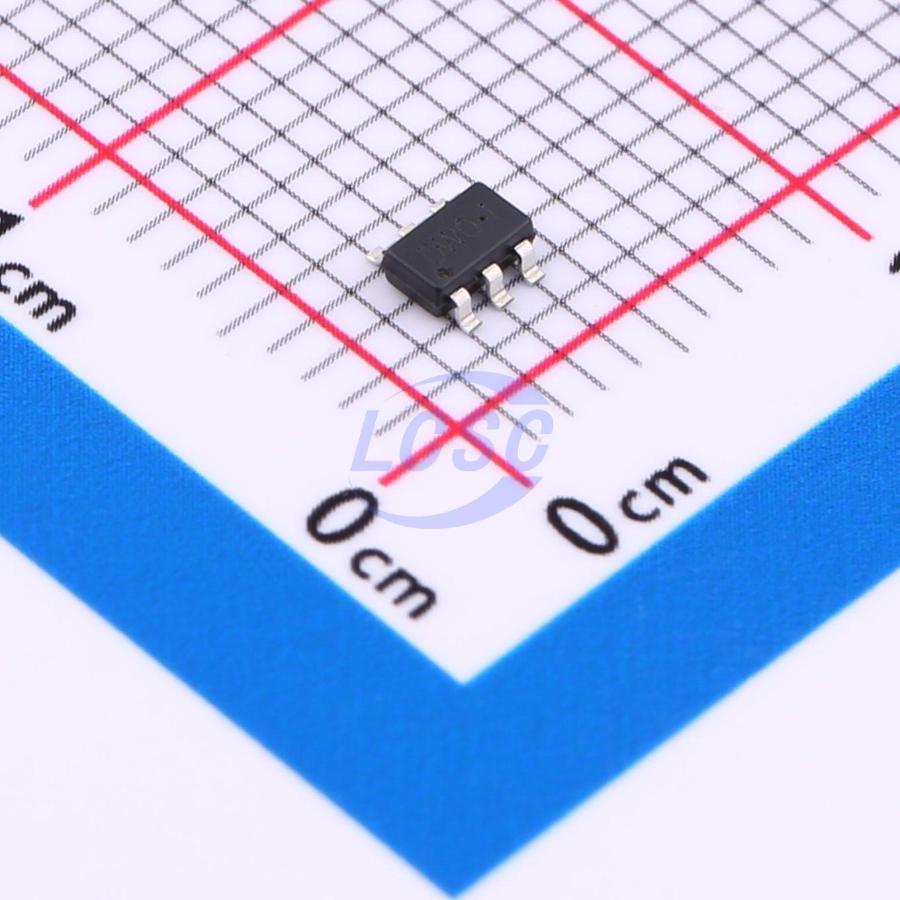

DW01A
Battery Protection IC Lithium Battery SOT-23-6
SOT-23-6ROHS CompliantActive
Battery protection IC
- Manufacturer
- KUU
- Manufacturer part #
- DW01A
- Store part #
- C42459937
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,180 in stock
#C42459937
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.06 | ₹61.20 |
| 200+ | ₹2.35 | ₹470.00 |
| 600+ | ₹1.97 | ₹1,182.00 |
| 3,000+ | ₹1.73 | ₹5,190.00 |
| 9,000+ | ₹1.53 | ₹13,770.00 |
| 21,000+ | ₹1.42 | ₹29,820.00 |
20 × ₹3.06
₹61.20
excl. GST
₹72.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DW01A
₹61.20 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 4uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 1.5V~8V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.037 g
Overview
DW01A is a lithium battery protection IC designed to prevent shortened battery life or damage caused by overcharge, overdischarge, and overcurrent conditions. It features high-accuracy voltage detection and time-delay circuitry, with 0V battery charging capability and automatic recovery function.
Key features
- Single-cell lithium battery protection circuit
- Low operating current
- Overcharge detection 4.30V, overcharge release 4.10V
- Over-discharge detection 2.4V, over-discharge release 3.0V
- Overcurrent detection 0.16V, short-circuit current detection 1.3V
- Charger detection
- Overcurrent protection reset resistor
- Auto-recovery function
- 0V charge enable
- Wide operating voltage range
- Package: SOT-23-6
