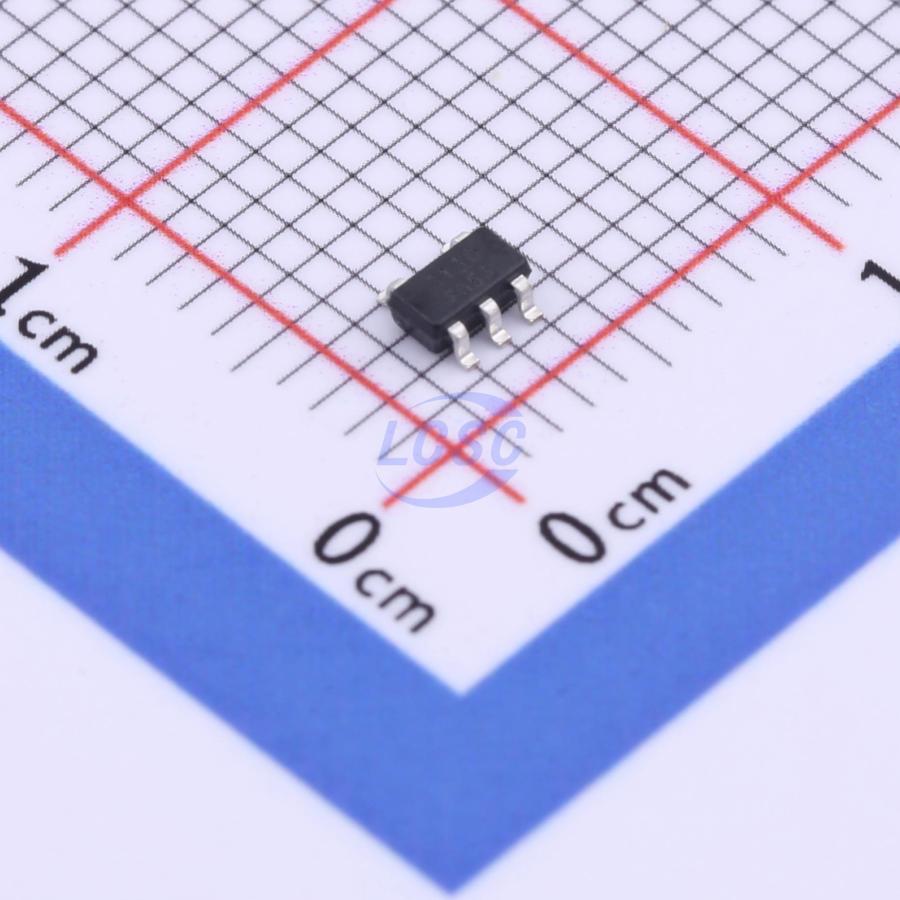

DW03
Battery Protection IC Lithium-ion/Polymer SOT-23-5
Single-cell lithium-ion/lithium-polymer rechargeable battery pack protection solution
- Manufacturer
- Slkor
- Manufacturer part #
- DW03
- Store part #
- C5122490
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C5122490
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.22 | ₹92.20 |
| 100+ | ₹7.24 | ₹724.00 |
| 300+ | ₹6.24 | ₹1,872.00 |
| 3,000+ | ₹5.24 | ₹15,720.00 |
| 6,000+ | ₹4.64 | ₹27,840.00 |
| 9,000+ | ₹4.34 | ₹39,060.00 |
10 × ₹9.22
₹92.20
excl. GST
₹108.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DW03
₹92.20 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.5uA
- 0V Battery Charge
- Support
- Operating Voltage
- 3.6V~4.4V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
The DW03 is a highly integrated protection solution for single-cell lithium-ion/lithium-polymer rechargeable battery packs. It integrates advanced power MOSFETs, high-accuracy voltage detection circuits, and delay circuits. The DW03 features an ultra-compact SOT23-5 package, making it ideal for space-constrained rechargeable battery pack applications. It provides all essential battery protection functions — including overcharge, overdischarge, overcurrent, and short-circuit protection — while maintaining very low operating power consumption. The device is designed not only for mobile phones, but also for any information appliances requiring long-term power supply from lithium-ion or lithium-polymer rechargeable batteries.
Applications
- Single-cell lithium-ion battery pack
- Lithium-polymer battery pack
- One-Cell lithium-ion battery pack
- Lithium-Polymer battery pack
Key features
- Integrated advanced power MOSFET with equivalent 65mΩ RDS(ON)
- Ultra-small SOT23-5 package
- Over-temperature protection; overcharge current protection; two-step overcurrent detection: overdischarge current, load short-circuit current
- Charger detection; 0V battery charging function; internally set delay times; high-accuracy voltage detection
- Low quiescent current — normal operation: 2.8μA; standby: 1.5μA; RoHS compliant and lead-free
- Integrate advanced power MOSFET with Equivalent of 65mΩ RDS(ON)
- Ultra-small SOT23-5 package
- Over-temperature Protection; Overcharge Current Protection; Two-step OvercurrentDetection: Overdischarge Current; Load Short Circuiting
- Charger detection function; 0V battery charging function; delay times aregenerated inside;High-accuracy voltage detection
- Low Current Consumption; Operation Mode: 2.8μA typ; Power-down Mode: 1.5μA typ ; RoHS Compliant and Lead (Pb) Free
