hengjiaxingDatasheet (PDF)

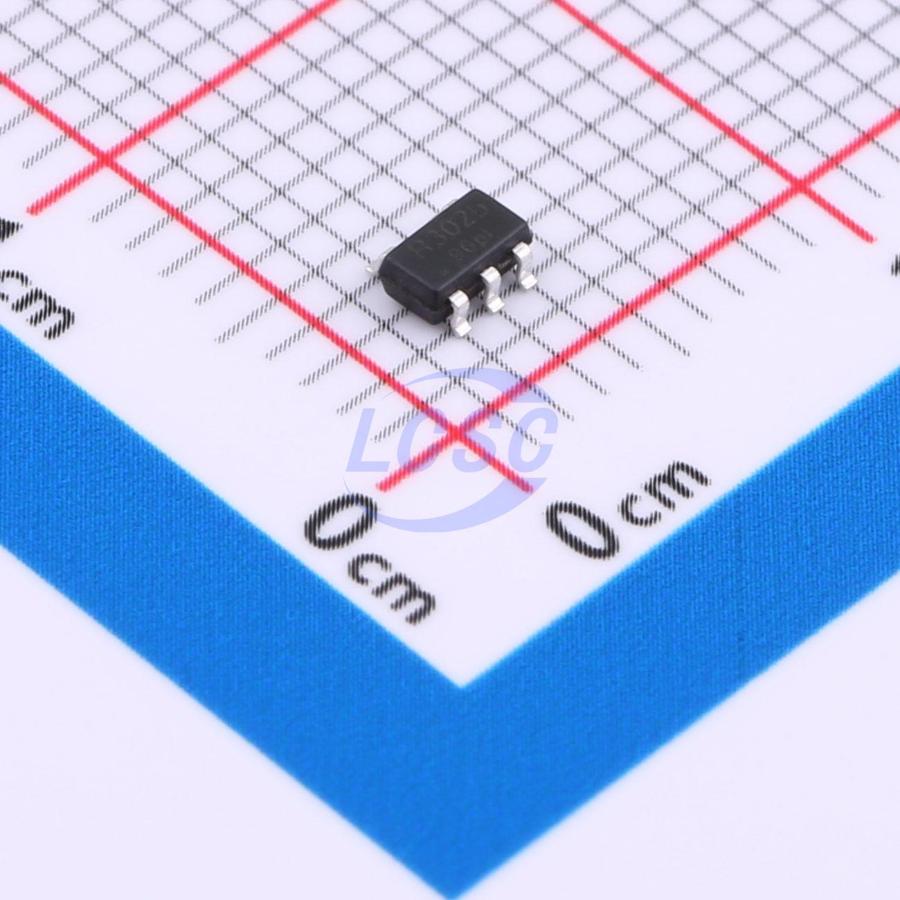

DW03
Battery Protection IC Lithium-ion/Polymer SOT23-5
SOT23-5ROHS CompliantActive
Built-in MOSFET Lithium Battery Protection Chip
- Manufacturer
- hengjiaxing
- Manufacturer part #
- DW03
- Store part #
- C7462836
- Package / case
- SOT23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C7462836
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.45 | ₹89.00 |
| 200+ | ₹3.52 | ₹704.00 |
| 600+ | ₹2.99 | ₹1,794.00 |
| 3,000+ | ₹2.69 | ₹8,070.00 |
| 9,000+ | ₹2.41 | ₹21,690.00 |
| 21,000+ | ₹2.26 | ₹47,460.00 |
20 × ₹4.45
₹89.00
excl. GST
₹105.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DW03
₹89.00 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 300nA
- 0V Battery Charge
- Support
- Operating Voltage
- 0V~6V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 5.7A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
