PJSEMIDatasheet (PDF)

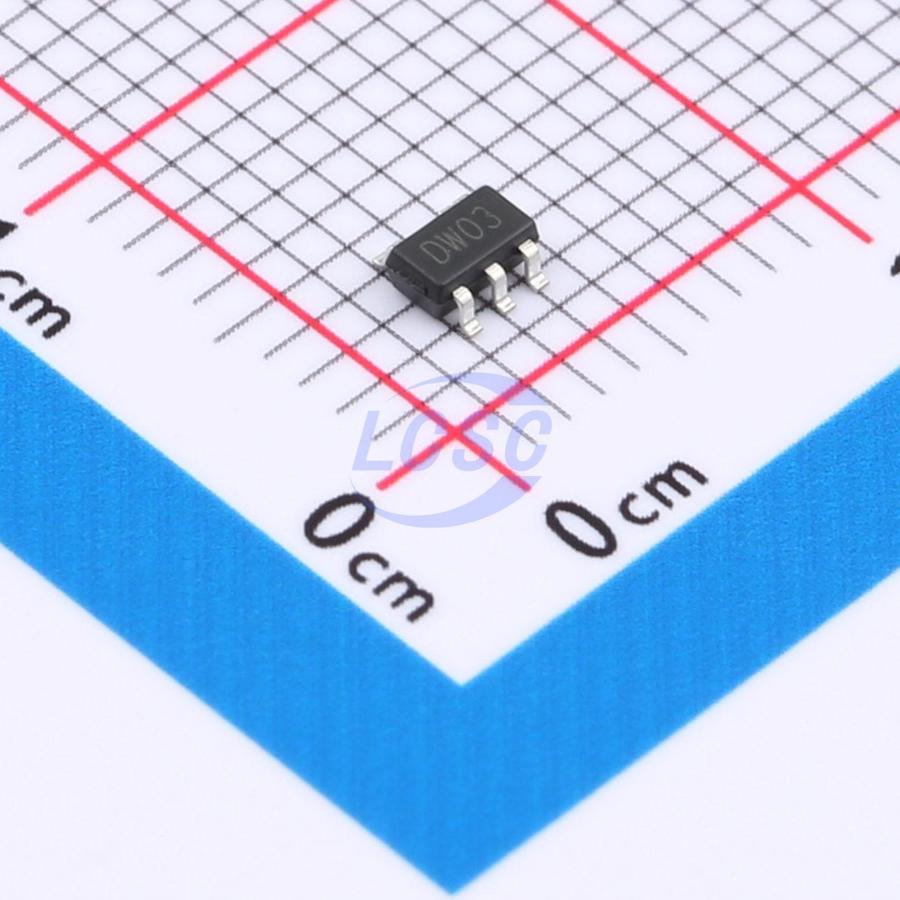

DW03C
Lithium Battery 2.5A SOT-23-5 Battery Management
SOT-23-5RoHSActive
One Cell Lithium-ion/Polymer Battery Protection IC
- Manufacturer
- PJSEMI
- Manufacturer part #
- DW03C
- Store part #
- C41367942
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,700 in stock
#C41367942
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.12 | ₹71.20 |
| 100+ | ₹5.62 | ₹562.00 |
| 300+ | ₹4.88 | ₹1,464.00 |
| 3,000+ | ₹4.33 | ₹12,990.00 |
| 6,000+ | ₹3.88 | ₹23,280.00 |
| 9,000+ | ₹3.65 | ₹32,850.00 |
10 × ₹7.12
₹71.20
excl. GST
₹84.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DW03C
₹71.20 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- 0V Battery Charge
- Support
- Operating Voltage
- 3.6V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 2.5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
DWO3C has built-in high-precision voltage detection circuit and delay circuit, which can realize overcharge, overdischarge and overcurrent protection of the battery by detecting the voltage and current of the battery. The protection circuit is suitable for a single lithium ion/lithium polymer rechargeable battery.
Applications
- Protection IC for One-Cell Lithium-Ion /Lithium-Polymer Battery Pack
Key features
- High Precision Voltage Detection Function:
- Overcharge Protection Voltage 4.300V Accuracy: ±25mV
- Overcharge Release Voltage 4.100V Accuracy: ±50mV
- Overdischarge Protection Voltage 2.400V Accuracy: ±100mV
- Overdischarge Release Voltage 3.000V Accuracy: ±100mV
- Discharge OverCurrent Detection 3.6A Accuracy: ±25%
- Short Circuit Current Detection 12.0A Accuracy: ±30%
- Charging OverCurrent Detection 2.5A Accuracy: ±25%
- Internal Detection Delay Time:
- Overcharge Protection Delay 1.0S Accuracy: ±50%
- Overdischarge Protection Delay 64mS Accuracy: ±50%
- Delay of Discharge Overcurrent 10mS Accuracy: ±50%
- Delay of Charge Overcurrent 10mS Accuracy: ±50%
- Charger Detection and Load Detection Function
- Function of Charging 0V Battery Allow
- Dormancy Function No
- Conditions for Relieving Discharge Overcurrent Disconnect The Load
- The Release Voltage of Discharge Overcurrent State VRIOV
- Low Current Consumption:
- At Work 1.0μA(Typ.) (Ta = 25°C)
- Overdischarge 0.5μA(Typ.) (Ta = 25°C)
- On-Resistance Of internal Power N-MOSFET: 60mΩ
- Lead-Free and Halogen-Free
- Operating Temperature Range: -40°C ~ +85°C
- Available Package: SOT-23-5
