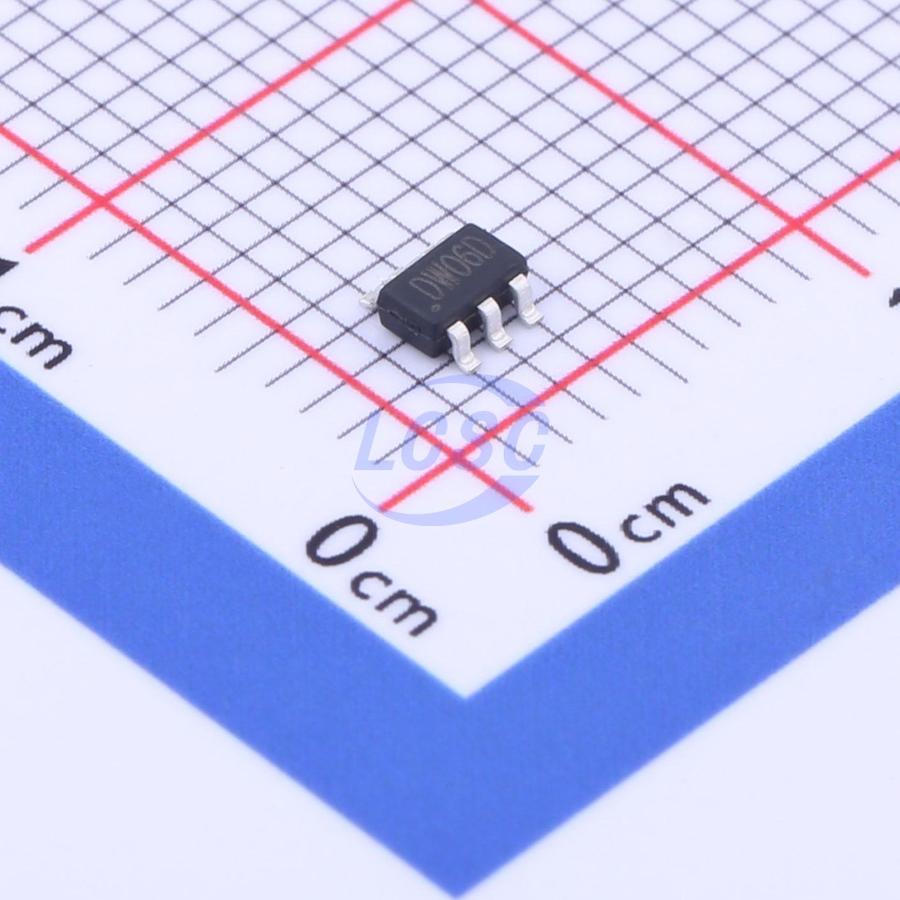

DW06
Battery Protection IC Lithium-ion/Polymer SOT-23-6
Two-in-one lithium battery protection IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- DW06
- Store part #
- C917080
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,240 in stock
#C917080
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.31 | ₹93.10 |
| 100+ | ₹7.44 | ₹744.00 |
| 300+ | ₹6.50 | ₹1,950.00 |
| 3,000+ | ₹5.89 | ₹17,670.00 |
| 6,000+ | ₹5.33 | ₹31,980.00 |
| 9,000+ | ₹5.04 | ₹45,360.00 |
10 × ₹9.31
₹93.10
excl. GST
₹109.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DW06
₹93.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3.8uA
- 0V Battery Charge
- Support
- Operating Voltage
- 1.5V~10V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
DW06 is a highly integrated protection solution for single-cell Li-ion/Li-polymer rechargeable battery packs. It incorporates advanced power MOSFETs, a high-accuracy voltage detection circuit, and a delay circuit. Housed in a SOT23-6 package, it is suitable for rechargeable battery pack applications with tight space constraints. It provides overcharge, overdischarge, overcurrent, and short-circuit protection functions required for battery safety, with low power consumption during operation. Ideal for all types of information products requiring long-duration power supply from Li-ion or Li-polymer rechargeable batteries.
Applications
- Single-cell Li-ion battery pack
- Lithium polymer battery pack
Key features
- Integrated advanced power MOSFET with equivalent on-resistance of ~50mΩ
- 3-level overcurrent protection: overdischarge current 1, overdischarge current 2 (optional), load short-circuit current
- Charger detection function
- Internal delay time setting
- High-accuracy voltage detection
- Low quiescent current: 3.8uA normal operating current
- RoHS and lead-free compliant
- SOT23-6 plastic package
