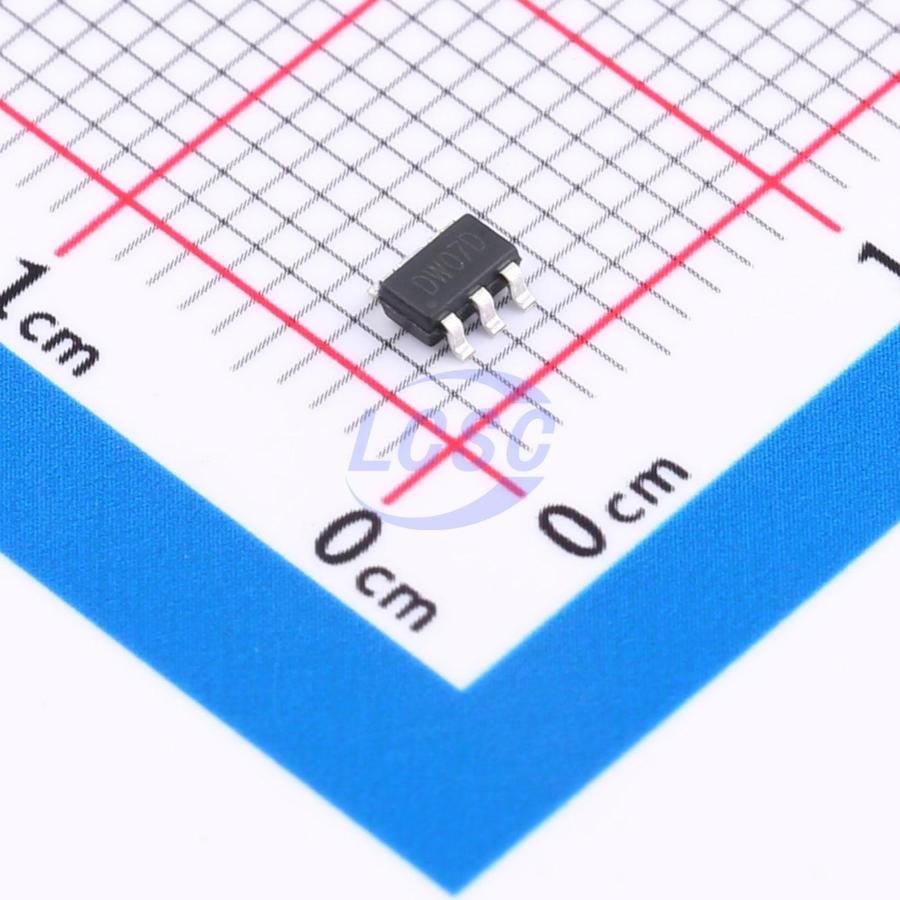

DW07D
Battery Protection IC Lithium-ion/Polymer SOT-23-6
Two-in-one lithium battery protection IC
- Manufacturer
- FM
- Manufacturer part #
- DW07D
- Store part #
- C89497
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C89497
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.88 | ₹54.40 |
| 50+ | ₹8.57 | ₹428.50 |
| 150+ | ₹7.42 | ₹1,113.00 |
| 500+ | ₹6.56 | ₹3,280.00 |
| 3,000+ | ₹5.87 | ₹17,610.00 |
| 6,000+ | ₹5.52 | ₹33,120.00 |
5 × ₹10.88
₹54.40
excl. GST
₹64.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DW07D
₹54.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3.8uA
- 0V Battery Charge
- Support
- Operating Voltage
- 1.5V~10V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 3A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The DW07D is a highly integrated protection solution for single-cell lithium-ion/lithium-polymer high-voltage rechargeable battery packs. It integrates an advanced power MOSFET, high-precision voltage detection circuit, and delay circuit. The compact SOT23-6 package makes it ideal for rechargeable battery pack applications with stringent space constraints. It provides full battery protection functions including overcharge, over-discharge, overcurrent, and short-circuit protection, while maintaining ultra-low operating power consumption. This IC is suitable for all types of information products requiring long-duration power supply from lithium-ion or lithium-polymer rechargeable batteries.
Applications
- Single-cell Li-ion battery pack
- Li-polymer battery pack
Key features
- Integrated advanced power MOSFET with equivalent ~50mΩ on-resistance
- 3-level overcurrent protection: overdischarge current 1, overdischarge current 2 (optional), load short-circuit current
- Charger detection function
- Internal delay time setting for 0V charging enable
- High-accuracy voltage detection
- Low quiescent current: 3.8μA normal operating current
- RoHS and lead-free compliant
- SOT23-6 plastic package
