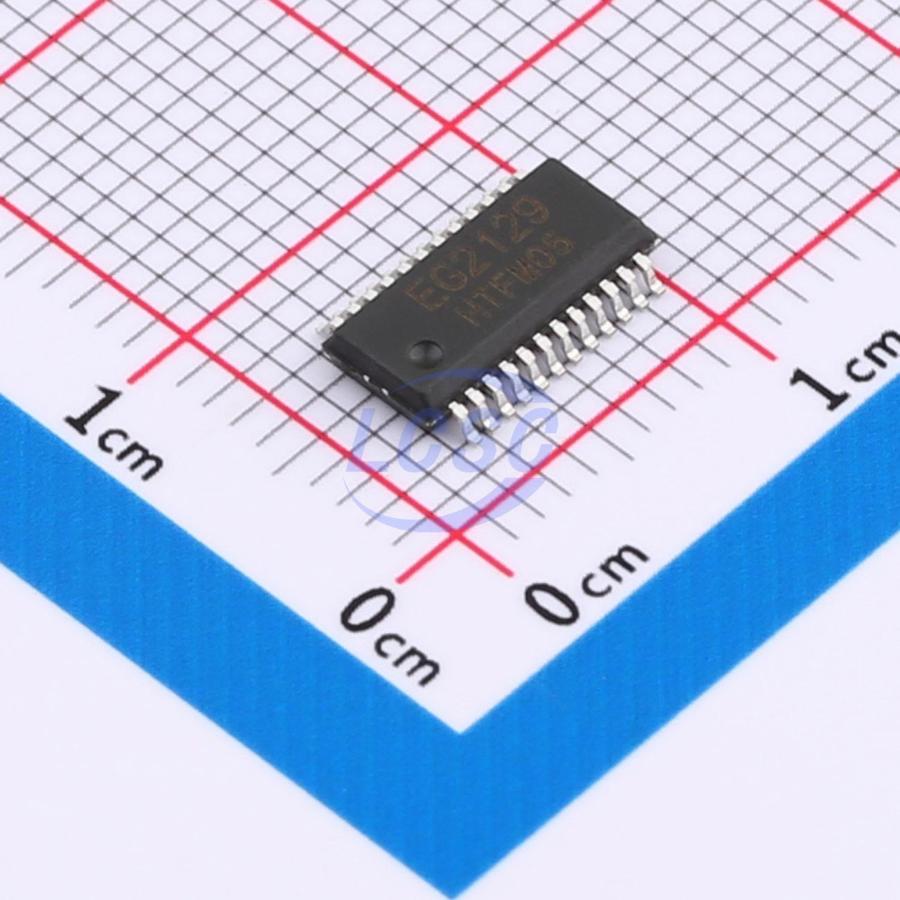

EG2129

EG2129 is a cost-effective full-bridge driver IC with dual comparator functionality, integrating logic signal input processing, SD control, undervoltage lockout (UVLO), latch, level shift, pulse filter, and output driver circuits. The EG2129 supports a high-side operating voltage up to 600V, with a wide low-side VCC supply voltage range of 10V–20V and low quiescent power consumption. The IC features a latch function to prevent simultaneous conduction of output power transistors. Input channels HIN and LIN have built-in 250K pull-down resistors to keep both high- and low-side power MOSFETs off when inputs are floating. Output current capability is I0+/- 0.6/1.0A. Packaged in SSOP24.

Applications

• Inverter power supply
• Electric vehicle controller
• Variable frequency pump controller
• Brushless motor driver
• Switching power supply

Key features

• High-side floating bootstrap power supply design, withstand voltage up to 600V
• Two built-in comparators
• Compatible with 5V and 3.3V input voltage
• Maximum switching frequency up to 500KHz
• VCC and VB undervoltage lockout output
• Output current capability I0+/- 0.6A/1.0A
• SD active-low shutdown of HO and LO outputs
• Overcurrent protection, active-high shutdown of HO and LO outputs
• Minimal external components
• Package: SSOP24
• Lead-free, halogen-free, RoHS compliant
