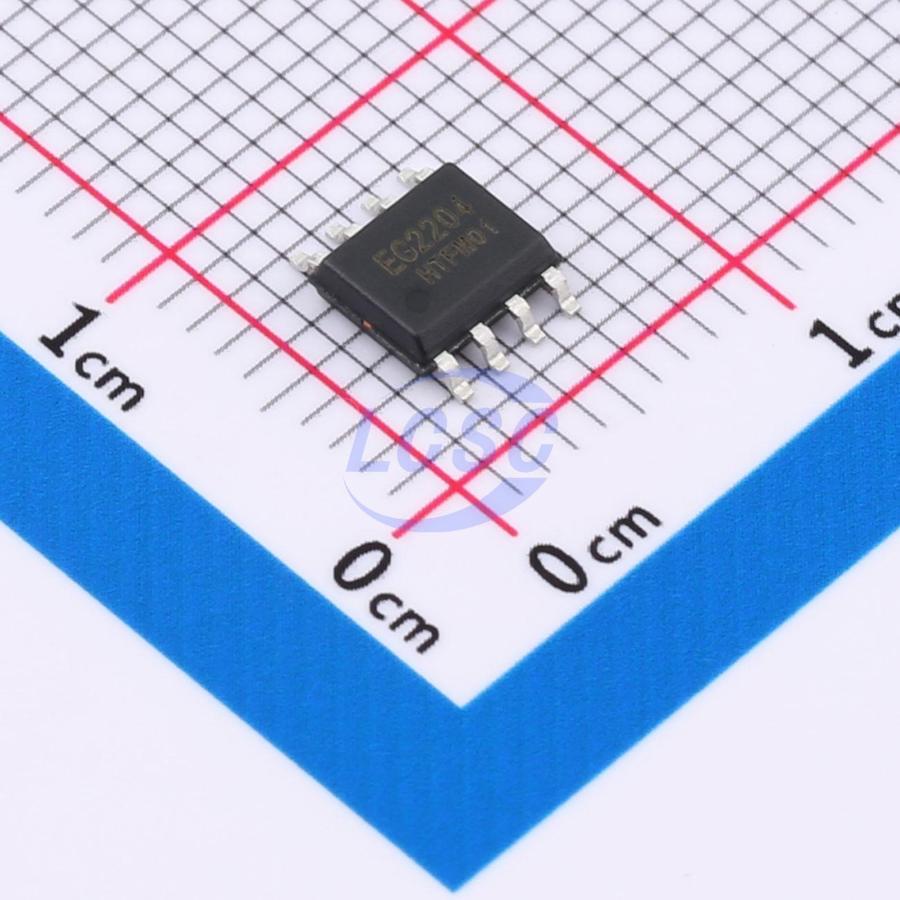

EG2204
Gate Driver IC MOSFET SOP-8
MOSFET driver IC with SD function
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2204
- Store part #
- C20416239
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,580 in stock
#C20416239
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.50 | ₹122.50 |
| 50+ | ₹21.42 | ₹1,071.00 |
| 150+ | ₹20.10 | ₹3,015.00 |
| 500+ | ₹18.46 | ₹9,230.00 |
| 2,500+ | ₹17.73 | ₹44,325.00 |
| 4,000+ | ₹17.29 | ₹69,160.00 |
5 × ₹24.50
₹122.50
excl. GST
₹144.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2204
₹122.50 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Low Level Delay Time
- 850ns
- High Level Delay Time
- 250ns
- Quiescent Current
- 180uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 9V~25V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 1A
- Rise Time
- 30ns
- Fall Time
- 15ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 500mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.167 g
Overview
EG2204 is a cost-effective gate driver IC dedicated to MOS and IGBT transistors with SD functionality. It integrates logic signal input processing, dead-time control, level shifting, pulse filtering, and output drive circuits, designed specifically for brushless motor controllers and DC-DC power supply drive circuits. The EG2204 supports a high-side operating voltage up to 600V, with a wide low-side VCC supply voltage range of 9V~25V. The input channel IN features a built-in 200K pull-down resistor, and SD features a built-in 200K pull-down resistor, which keeps both the high-side and low-side power MOSFETs in the off state when inputs are floating. Output current capability is 10+/-0.5/1.0A, housed in a SOP8 package.
Applications
- High-voltage fast-charging switching power supply for power banks
- Wireless charging driver
- Variable frequency pump controller
- DC-DC power supply
- Brushless motor driver
- High-voltage Class-D amplifier
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum switching frequency up to 500KHz
- VCC and VB supply with undervoltage lockout (UVLO) protection
- Low-side VCC voltage range: 9V - 25V
- Output current capability: |0+/- 0.5A/1.0A
- Built-in dead-time control circuit
- SD input active-low, disables HO and LO outputs
- Minimal external components
- Package: SOP8
- Lead-free, halogen-free, RoHS compliant
