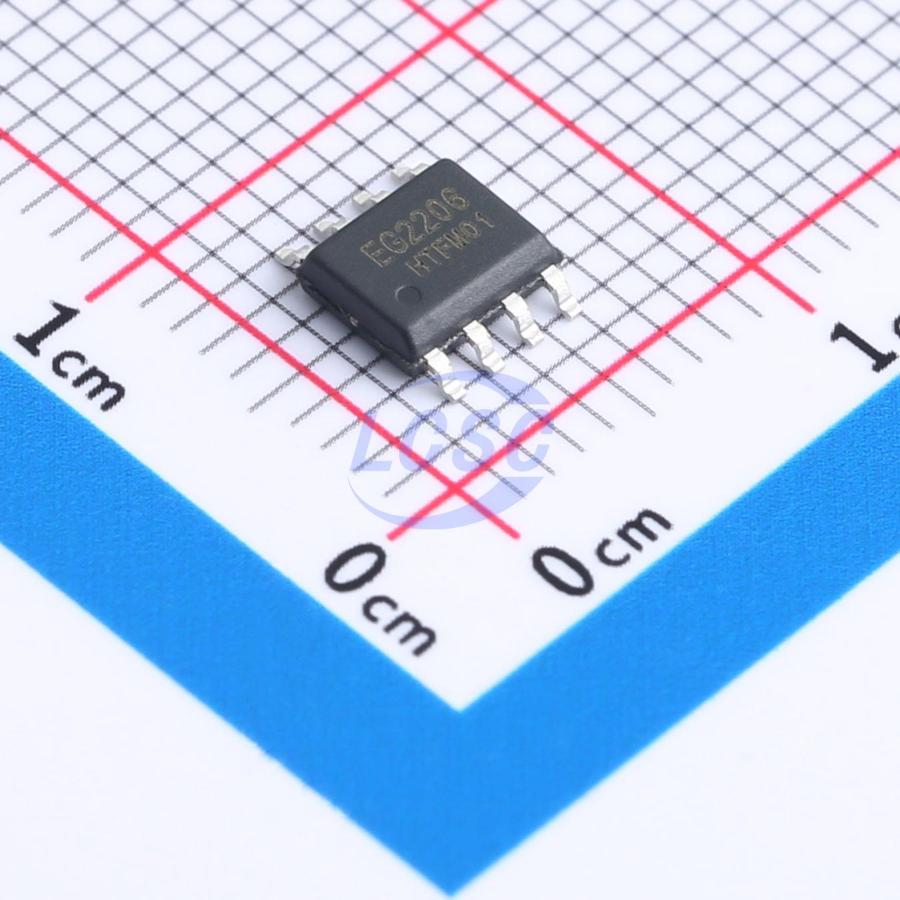

EG2206
Half-Bridge Gate Driver IC MOSFET SOP-8
High-voltage half-bridge MOSFET driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2206
- Store part #
- C20416240
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,645 in stock
#C20416240
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.91 | ₹104.55 |
| 50+ | ₹18.36 | ₹918.00 |
| 150+ | ₹17.26 | ₹2,589.00 |
| 500+ | ₹15.90 | ₹7,950.00 |
| 2,500+ | ₹15.29 | ₹38,225.00 |
| 4,000+ | ₹14.92 | ₹59,680.00 |
5 × ₹20.91
₹104.55
excl. GST
₹123.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2206
₹104.55 for 5 + GST
Specifications
- Quiescent Current
- 80uA
- Voltage - Supply
- 10V~25V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 1A
- Rise Time
- 60ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 500mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.168 g
Overview
EG2206 is a cost-effective gate driver IC dedicated to MOSFETs and IGBTs. It integrates logic signal input processing, undervoltage lockout (UVLO), level shift, pulse filtering, and output drive circuits, designed specifically for brushless motor controllers and DC-DC power supply drive circuits. The EG2206 supports a high-side operating voltage up to 600V, with a wide low-side Vcc supply voltage range of 10V~25V. The HIN input channel has a built-in 200K pull-down resistor, and the LIN input channel has a built-in 200K pull-down resistor, ensuring both high-side and low-side power MOSFETs remain in the off state when inputs are floating. Output current capability is 10+/-0.5/1.0A. Available in SOP8 package.
Applications
- Mobile power bank high-voltage fast-charge switching power supply
- Wireless charging driver / variable frequency water pump controller
- DC-DC power supply
- Brushless motor driver
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum switching frequency up to 500KHz
- VCC and VB supply with undervoltage lockout (UVLO) protection
- Low-side VCC voltage range: 10V - 25V
- Output current capability: |0+/- 0.5A/1.0A
- HIN input channel active-high, controls high-side HO output
- LIN input channel active-high, controls low-side LO output
- Minimal external components
- Package: SOP8
- Lead-free, halogen-free, RoHS compliant
