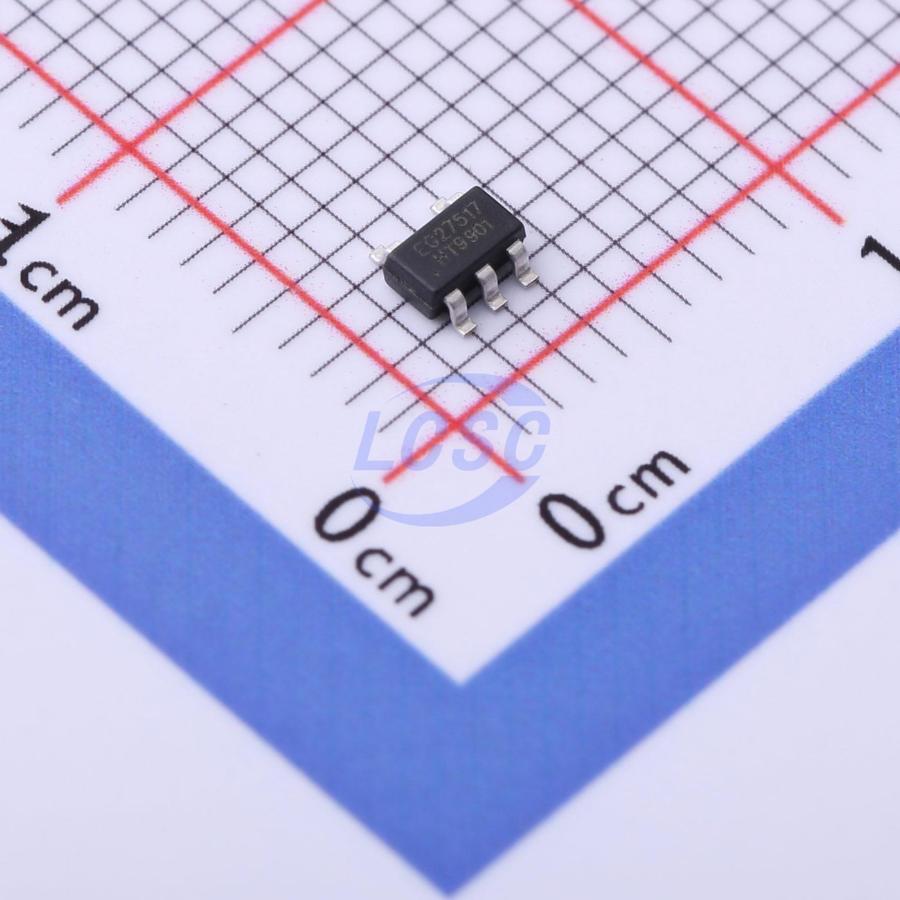

EG27517
Low Side Gate Driver IC MOSFET IGBT SOT-23-5
High-speed single-channel low-side driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG27517
- Store part #
- C2987449
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,685 in stock
#C2987449
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.95 | ₹159.75 |
| 50+ | ₹24.87 | ₹1,243.50 |
| 150+ | ₹21.84 | ₹3,276.00 |
| 500+ | ₹18.06 | ₹9,030.00 |
| 3,000+ | ₹16.37 | ₹49,110.00 |
| 6,000+ | ₹15.36 | ₹92,160.00 |
5 × ₹31.95
₹159.75
excl. GST
₹188.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EG27517
₹159.75 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Quiescent Current
- 10uA
- Voltage - Supply
- 4V~20V
- Driven Configuration
- Low Side
- Operating Temperature
- -45℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
EG27517 is a single-channel high-speed low-side gate driver capable of effectively driving MOSFET and IGBT power switches. It delivers high peak source/sink current pulses for capacitive loads while providing rail-to-rail drive capability and short propagation delay. The device features a wide supply voltage range of 4V~20V with low quiescent power consumption. With a dual-input design (selectable inverting IN- or non-inverting IN+ driver configuration), it provides peak sink/source (symmetrical drive) current capability of 4A at VDD = 12V. Available in SOT23-5 package.
Applications
- Switch-mode power supplies
- DC-DC converters
- Digital power gate driver devices
- Solar, UPS transformer drivers
Key features
- Cost-effective gate driver offering a high-quality alternative to NPN/PNP discrete solutions
- VDD voltage range: 4V - 20V
- Output current capability: 10±1 - 4A/4A
- Short input-to-output propagation delay
- Output held low when input pin is floating
- Minimal external components required
- Low quiescent current, ideal for battery-powered applications
- Package: SOT23-5
- Lead-free, RoHS compliant
