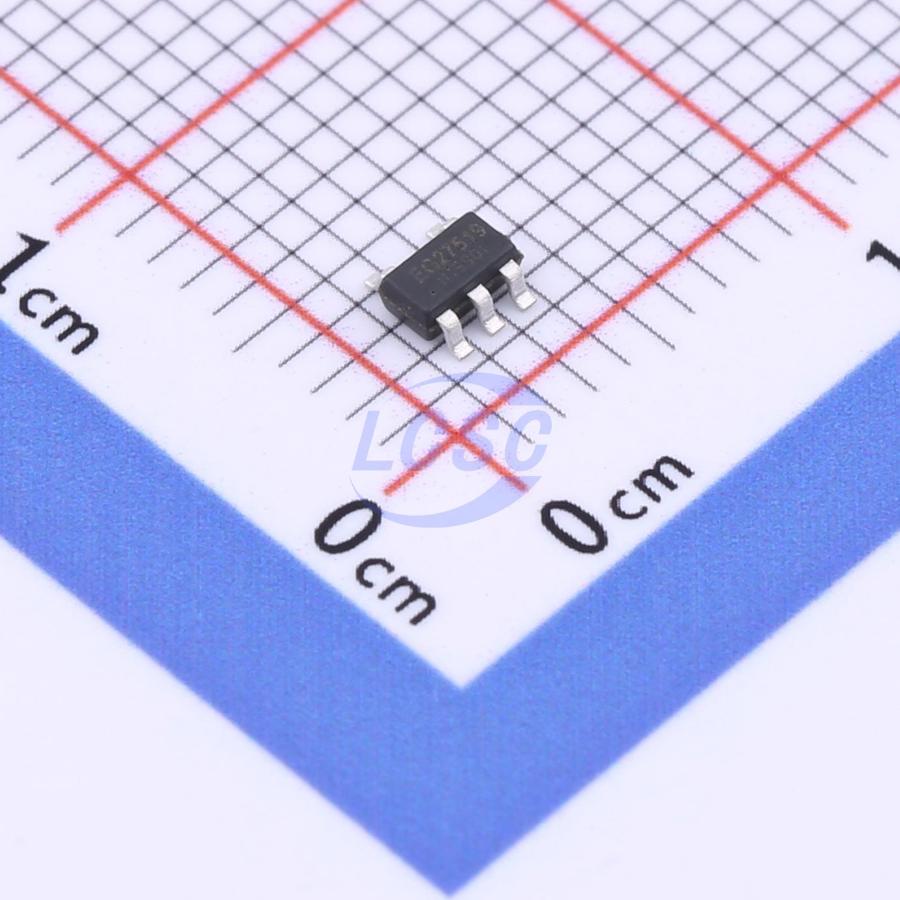

EG27519
Low Side Gate Driver IC MOSFET IGBT SOT-23-5
High-speed single-channel low-side driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG27519
- Store part #
- C2987450
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C2987450
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.46 | ₹142.30 |
| 50+ | ₹22.54 | ₹1,127.00 |
| 150+ | ₹20.00 | ₹3,000.00 |
| 500+ | ₹16.83 | ₹8,415.00 |
| 3,000+ | ₹14.71 | ₹44,130.00 |
| 6,000+ | ₹13.87 | ₹83,220.00 |
5 × ₹28.46
₹142.30
excl. GST
₹167.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EG27519
₹142.30 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Low Level Delay Time
- 80ns
- High Level Delay Time
- 60ns
- Quiescent Current
- 150uA
- Voltage - Supply
- 4V~20V
- Driven Configuration
- Low Side
- Operating Temperature
- -45℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
EG27519 is a single-channel high-speed low-side gate driver capable of effectively driving MOSFET and IGBT power switches. It delivers high peak source/sink current pulses to capacitive loads while providing rail-to-rail drive capability and short propagation delay. Wide supply voltage range of 4V~20V with minimal external components. The device features a single-input design, providing peak 4A sink/source (symmetrical drive) current capability at VDD = 12V, housed in a SOT23-5 package.
Applications
- Switching mode power supplies
- DC-DC converters
- Digital power gate drive devices
- Solar, UPS drive transformers
Key features
- Cost-effective gate driver, a high-quality alternative to NPN/PNP discrete solutions
- VDD voltage range: 4V - 20V
- Output current capability: 10+1 - 4A/4A
- Short input-to-output propagation delay
- EN enable function
- Output held low when input pin is floating
- Minimal external components
- Package: SOT23-5
- Lead-free, green, RoHS compliant
