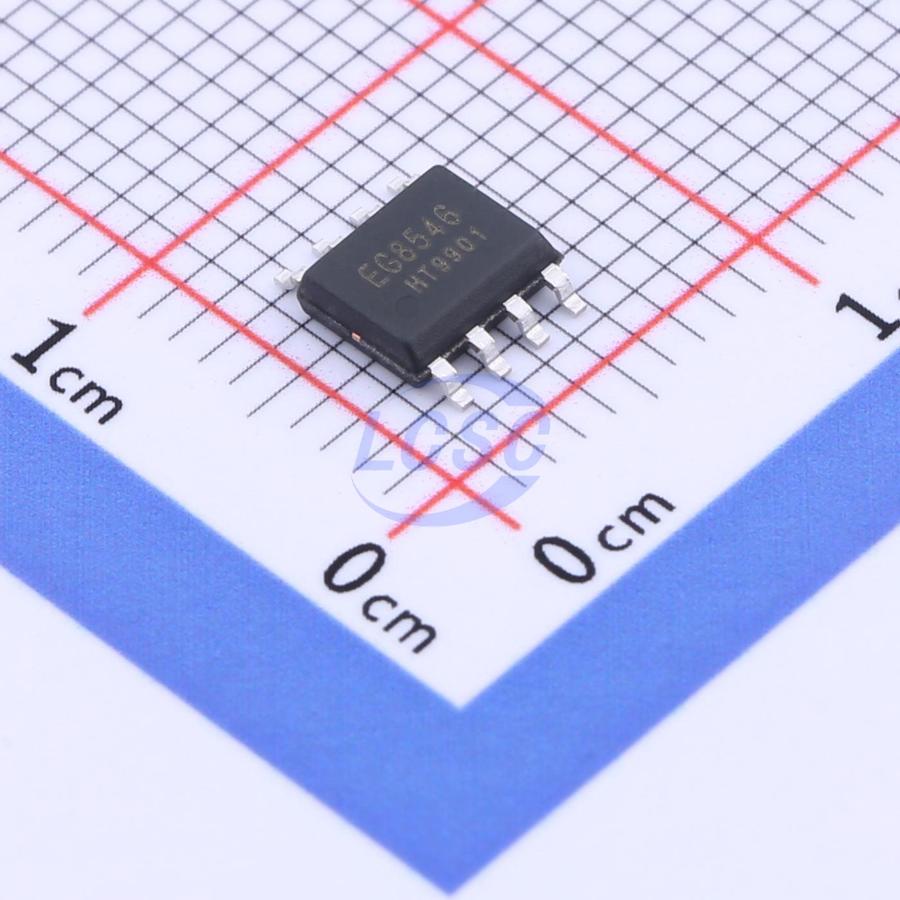

EG Micro

EG8546

Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-8

SOP-8ROHS CompliantActive

High-speed CMOS rail-to-rail operational amplifier

Manufacturer: EG Micro
Manufacturer part #: EG8546
Store part #: C2987475
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,440 in stock

#C2987475

Stock & price checked 17 h ago

Quantity	Unit price	Pack price
5+	₹12.52	₹62.60
50+	₹9.91	₹495.50
150+	₹8.61	₹1,291.50
500+	₹7.63	₹3,815.00
2,500+	₹6.80	₹17,000.00
4,000+	₹6.40	₹25,600.00

Quantity (min 5, multiples of 5)

5 × ₹12.52

₹62.60

excl. GST

₹73.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

EG8546

₹62.60 for 5 + GST

Specifications

Output Current: 50mA
Number of Channels: 2
Vos - Input Offset Voltage: 1mV
Slew Rate: 3.7V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 2.5uV/℃
Quiescent Current: 860uA
Gain Bandwidth Product: 6MHz
Features: Built-in compensation
Input Voltage Noise Density: 13nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.151 g
