EnergyMathDatasheet (PDF)

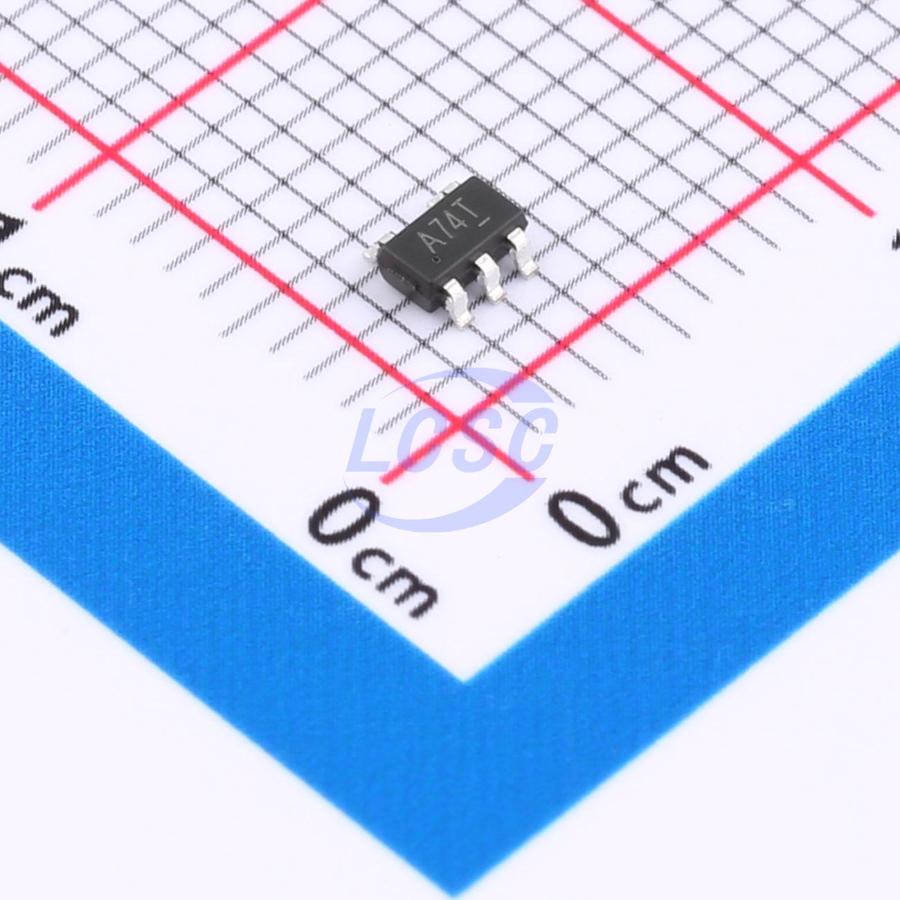

EM74AHC1G09GV
StandardCMOS 2V~5.5V 6ns@5.5V,15pF 10uA SOT-23-5L Gates and Inverters
SOT-23-5LRoHSActive
2-input AND with open-drain output
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74AHC1G09GV
- Store part #
- C49188278
- Package / case
- SOT-23-5L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,985 in stock
#C49188278
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.37 | ₹61.85 |
| 50+ | ₹9.78 | ₹489.00 |
| 150+ | ₹8.48 | ₹1,272.00 |
| 500+ | ₹7.51 | ₹3,755.00 |
| 3,000+ | ₹6.73 | ₹20,190.00 |
| 6,000+ | ₹6.35 | ₹38,100.00 |
5 × ₹12.37
₹61.85
excl. GST
₹72.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74AHC1G09GV
₹61.85 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- output type
- Open-drain
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 6ns@5.5V,15pF
- Output Logic Level - Low
- 100mV;550mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
EM74AHC1G09 and EM74AHCT1G09 are single 2-input AND gates with open-drain output. The inputs are overvoltage tolerant, allowing these devices to be used as level translators in mixed-voltage environments.
Key features
- Wide supply voltage range: 2.0V to 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200 mA
- Input levels: CMOS for EM74AHC1G09; TTL for EM74AHCT1G09
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
