EnergyMath

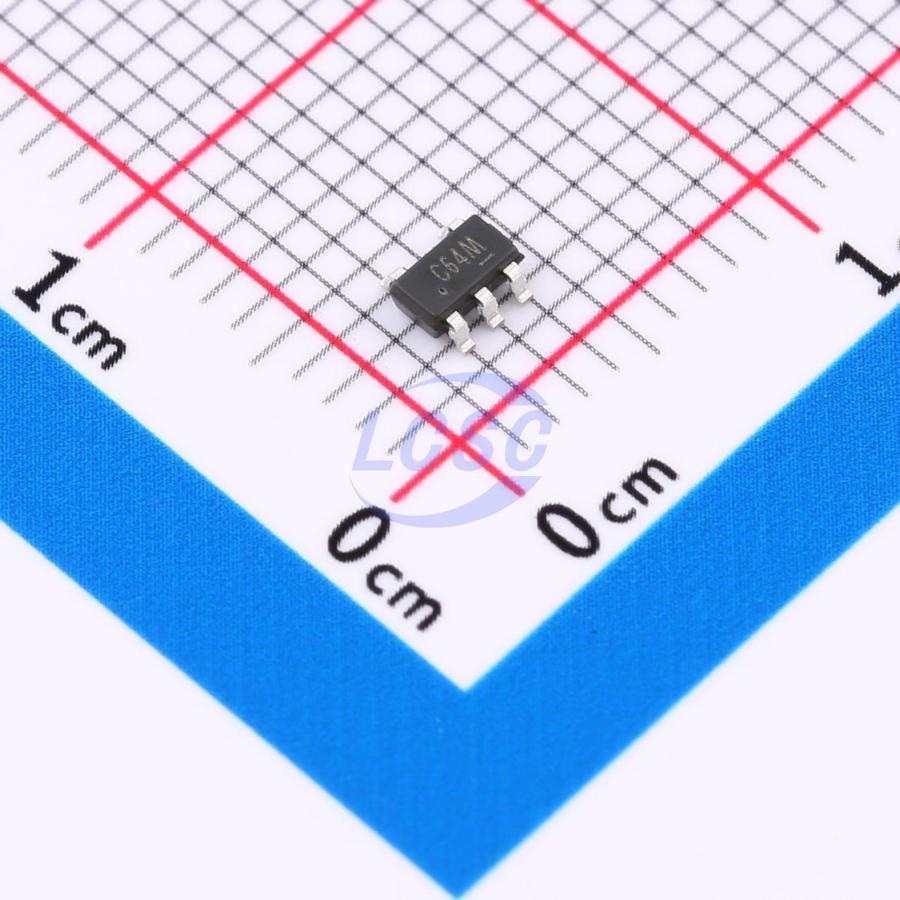

EM74AHCT1G08GV

TTL-compatible CMOS 2V~5.5V 4.3ns@4.5V~5.5V,15pF 40uA SOT-23-5L Gates and Inverters

SOT-23-5LRoHSActive

Single 2-input AND gate

Manufacturer: EnergyMath
Manufacturer part #: EM74AHCT1G08GV
Store part #: C49188267
Package / case: SOT-23-5L
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,720 in stock

#C49188267

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹10.20	₹51.00
50+	₹8.06	₹403.00
150+	₹7.00	₹1,050.00
500+	₹6.19	₹3,095.00
3,000+	₹5.56	₹16,680.00
6,000+	₹5.24	₹31,440.00

Quantity (min 5, multiples of 5)

5 × ₹10.20

₹51.00

excl. GST

₹60.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EM74AHCT1G08GV

₹51.00 for 5 + GST

Specifications

Input Type: TTL-compatible CMOS
Logic Family: 74AHCT
Voltage - Supply: 2V~5.5V
Propagation Delay: 4.3ns@4.5V~5.5V,15pF
Output Logic Level - Low: 100mV;550mV
Features: Overvoltage-tolerant input
Input Logic Level - Low: 300mV;550mV;800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1V;1.5V;2V
Output Logic Level - High: 1.9V~2V;2.9V~3V;4.4V~4.5V
Quiescent Current(Iq): 40uA
Current - Output High(IOH): 8mA
Number of Channels: 1;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

The EM74AHC1G08 and EM74AHCT1G08 are single 2-input AND gate devices. Their inputs feature overvoltage tolerance, enabling these devices to function as level translators in mixed-voltage environments.

Key features

Wide supply voltage range: 2.0V to 5.5V
Input overvoltage tolerance up to 5.5V
High noise immunity
CMOS low power consumption
Latch-up performance exceeds 200mA
Symmetrical output impedance
Balanced propagation delay
Multiple package options
