EnergyMathDatasheet (PDF)

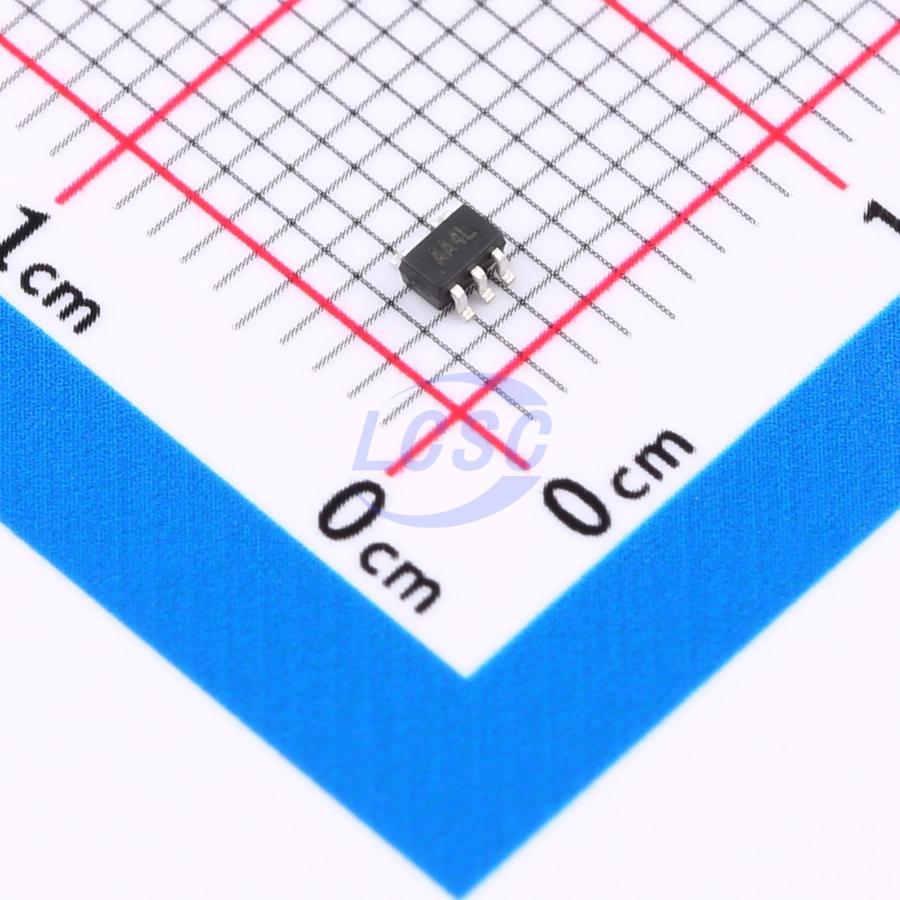

EM74AHC1G14GW
Schmitt trigger 2V~5.5V 8.5ns@4.5V,15pF 10uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
Inverting Schmitt trigger
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74AHC1G14GW
- Store part #
- C49188272
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C49188272
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.85 | ₹88.50 |
| 100+ | ₹7.00 | ₹700.00 |
| 300+ | ₹6.07 | ₹1,821.00 |
| 3,000+ | ₹5.37 | ₹16,110.00 |
| 6,000+ | ₹4.82 | ₹28,920.00 |
| 9,000+ | ₹4.54 | ₹40,860.00 |
10 × ₹8.85
₹88.50
excl. GST
₹104.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74AHC1G14GW
₹88.50 for 10 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 8.5ns@4.5V,15pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
The EM74AHC1G14 and EM74AHCT1G14 are single inverters with Schmitt-trigger inputs featuring overvoltage-tolerant inputs, allowing these devices to be used as level translators in mixed-voltage environments. AHC devices have CMOS input switching levels with a supply voltage range of 2 V to 5.5 V. AHCT devices have TTL input switching levels with a supply voltage range of 4.5 V to 5.5 V.
Key features
- Wide supply voltage range: 2.0 V to 5.5 V
- Input overvoltage tolerance up to 5.5 V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200 mA
- Symmetrical output impedance
- Balanced propagation delay
- EM74AHC1G14 with CMOS input levels; EM74AHCT1G14 with TTL input levels
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
