EnergyMathDatasheet (PDF)

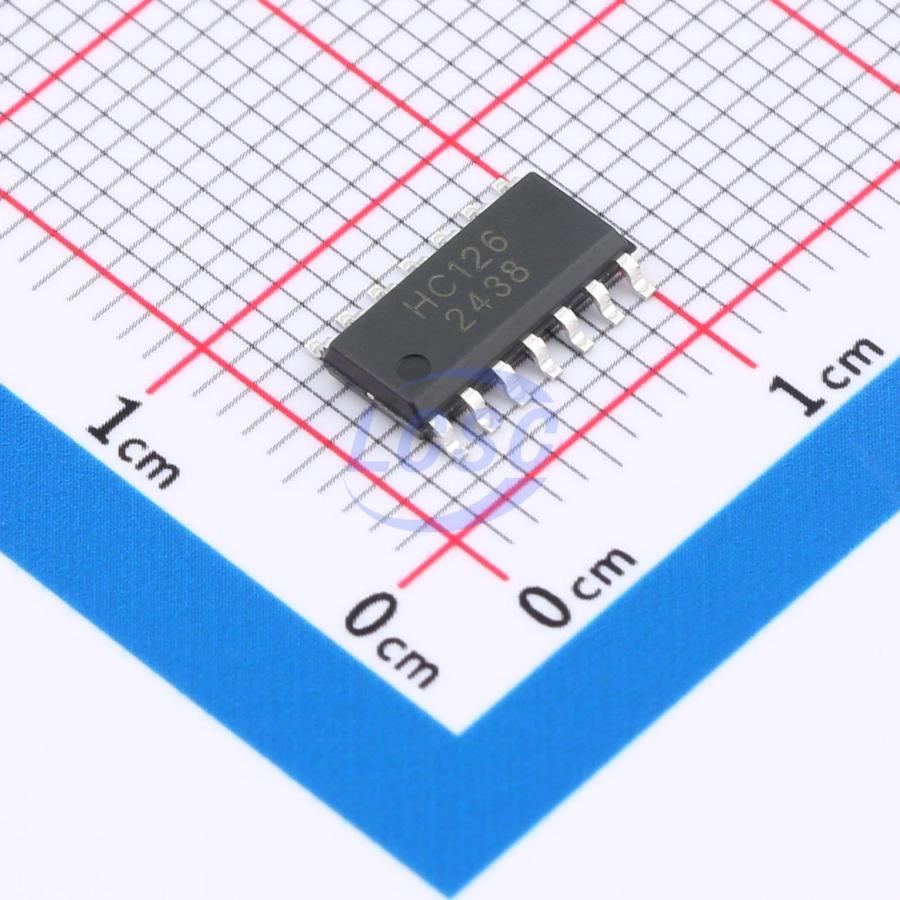

EM74HC126D
2V~6V 1 4 20ns@6V,15pF SOP-14L Buffers, Drivers, Receivers, Transceivers
SOP-14LRoHSActive
Quad buffer/line driver; 3-state
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74HC126D
- Store part #
- C49188243
- Package / case
- SOP-14L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,115 in stock
#C49188243
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.46 | ₹82.30 |
| 50+ | ₹12.94 | ₹647.00 |
| 150+ | ₹11.18 | ₹1,677.00 |
| 500+ | ₹9.87 | ₹4,935.00 |
| 3,000+ | ₹8.81 | ₹26,430.00 |
| 6,000+ | ₹8.28 | ₹49,680.00 |
5 × ₹16.46
₹82.30
excl. GST
₹97.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74HC126D
₹82.30 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 4
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 20ns@6V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.291 g
Overview
EM74HC126 and EM74HCT126 are quad buffer/line drivers with 3-state outputs, controlled by output enable inputs (nOE). When nOE is LOW, the outputs are switched to a high-impedance OFF state. The inputs include clamping diodes, which allow input interfacing to voltages higher than VCC by using current-limiting resistors.
Key features
- Wide supply voltage range: 2.0V to 6.0V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- JEDEC compliant: JESD8C (2.7V to 3.6V) and JESD7A (2.0V to 6.0V)
- Input levels: CMOS level for EM74HC126; TTL level for EM74HCT126
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EM74HC125D#C49188245EnergyMath · SOP-14L | EnergyMath | SOP-14L | 2,425 | ₹16.70 · 2,425 in stock | View |
