EnergyMathDatasheet (PDF)

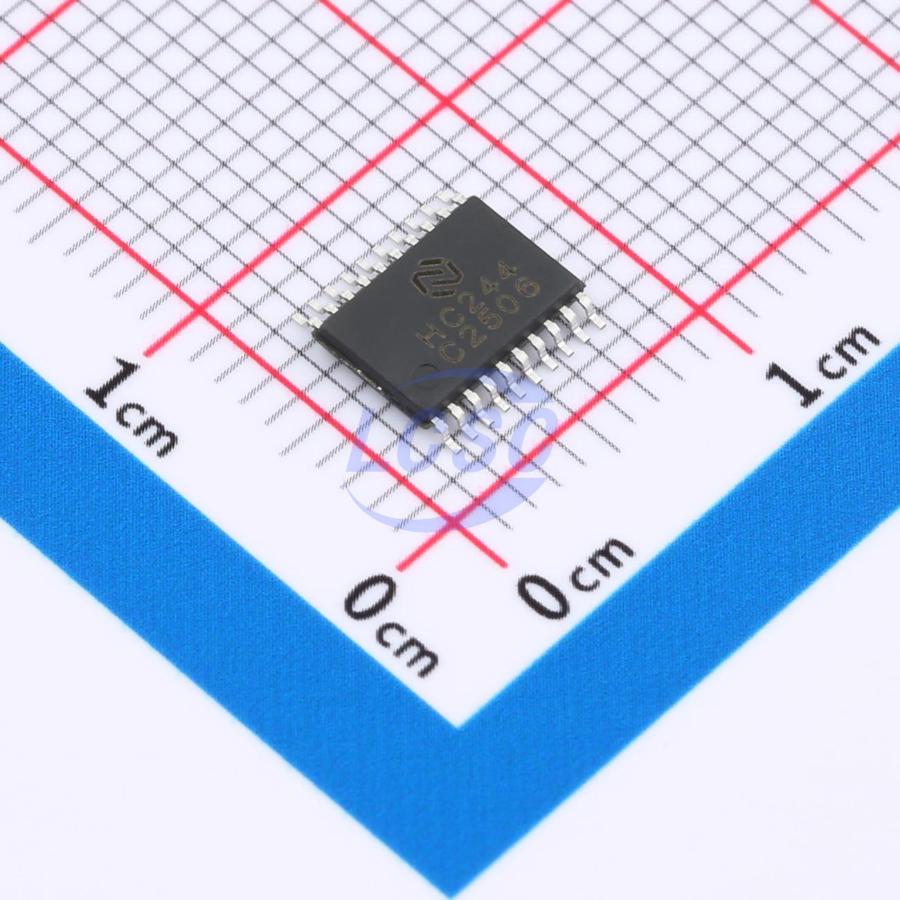

EM74HC244PW
2V~6V 4 2 25ns@4.5V,50pF TSSOP-20L Buffers, Drivers, Receivers, Transceivers
TSSOP-20LRoHSActive
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74HC244PW
- Store part #
- C49188289
- Package / case
- TSSOP-20L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C49188289
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.64 | ₹138.20 |
| 50+ | ₹21.70 | ₹1,085.00 |
| 150+ | ₹19.16 | ₹2,874.00 |
| 500+ | ₹15.98 | ₹7,990.00 |
| 3,000+ | ₹14.57 | ₹43,710.00 |
| 6,000+ | ₹13.72 | ₹82,320.00 |
5 × ₹27.64
₹138.20
excl. GST
₹163.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74HC244PW
₹138.20 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 25ns@4.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
EM74HC244 and EM74HCT244 are 8-bit buffers/line drivers with 3-state outputs. The devices can be used as two 4-bit buffers or one 8-bit buffer. Two output enable inputs (1OE and 2OE) are provided to control four 3-state outputs independently. When nOE is HIGH, the outputs are disabled to a high-impedance state. Input clamping diodes are included, allowing the use of current-limiting resistors to enable input interfacing with voltages exceeding VCC.
Key features
- Wide supply voltage range: 2.0V to 6.0V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250 mA
- Compliant with JEDEC standards: JESD8C (2.7V to 3.6V) and JESD7A (2.0V to 6.0V)
- Input levels: CMOS levels for EM74HC244; TTL levels for EM74HCT244
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
