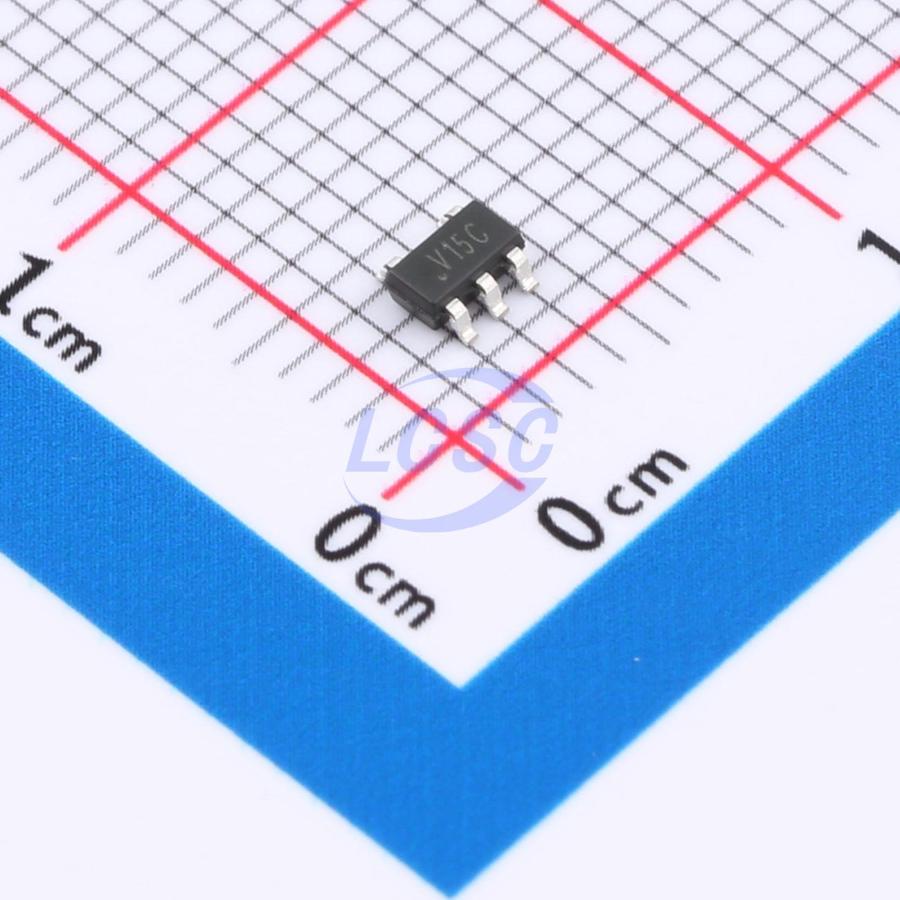

EM74LVC1G00GV
Schmitt trigger 1.65V~5.5V 3.8ns@4.5V~5.5V,50pF 4uA SOT-23-5L Gates and Inverters
SOT-23-5LRoHSActive
Single 2-input NAND gate
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC1G00GV
- Store part #
- C49188163
- Package / case
- SOT-23-5L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C49188163
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.26 | ₹72.60 |
| 100+ | ₹5.74 | ₹574.00 |
| 300+ | ₹4.97 | ₹1,491.00 |
| 3,000+ | ₹4.41 | ₹13,230.00 |
| 6,000+ | ₹3.96 | ₹23,760.00 |
| 9,000+ | ₹3.73 | ₹33,570.00 |
10 × ₹7.26
₹72.60
excl. GST
₹85.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC1G00GV
₹72.60 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 3.8ns@4.5V~5.5V,50pF
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
The EM74LVC1G00 is a single 2-input NAND gate. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs enables the circuit to tolerate slower input rise and fall times. The device is fully specified for partial-power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially destructive backflow current when the device is powered down.
Key features
- Wide supply voltage range: 1.65V~5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- CMOS low power consumption
- IOFF circuitry for partial power-down mode operation
- ±24mA output drive capability (VCC=3.0V)
- Latch-up performance exceeds 100mA
- Direct TTL-level interface compatible
- Compliant with JEDEC standards: JESD8-7 (1.65V~1.95V), JESD8-5 (2.3V~2.7V), JESD8C (2.7V~3.6V), JESD36 (4.5V~5.5V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V; MM JESD22-A115C Class C exceeds 550V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EM74LVC1G132GV#C49188130EnergyMath · SOT-23-5L | EnergyMath | SOT-23-5L | 4,580 | ₹7.37 · 4,580 in stock | View |
 | EM74LVC1G38GV#C49188113EnergyMath · SOT-23-5L | EnergyMath | SOT-23-5L | 80 | ₹7.29 · 80 in stock | View |
