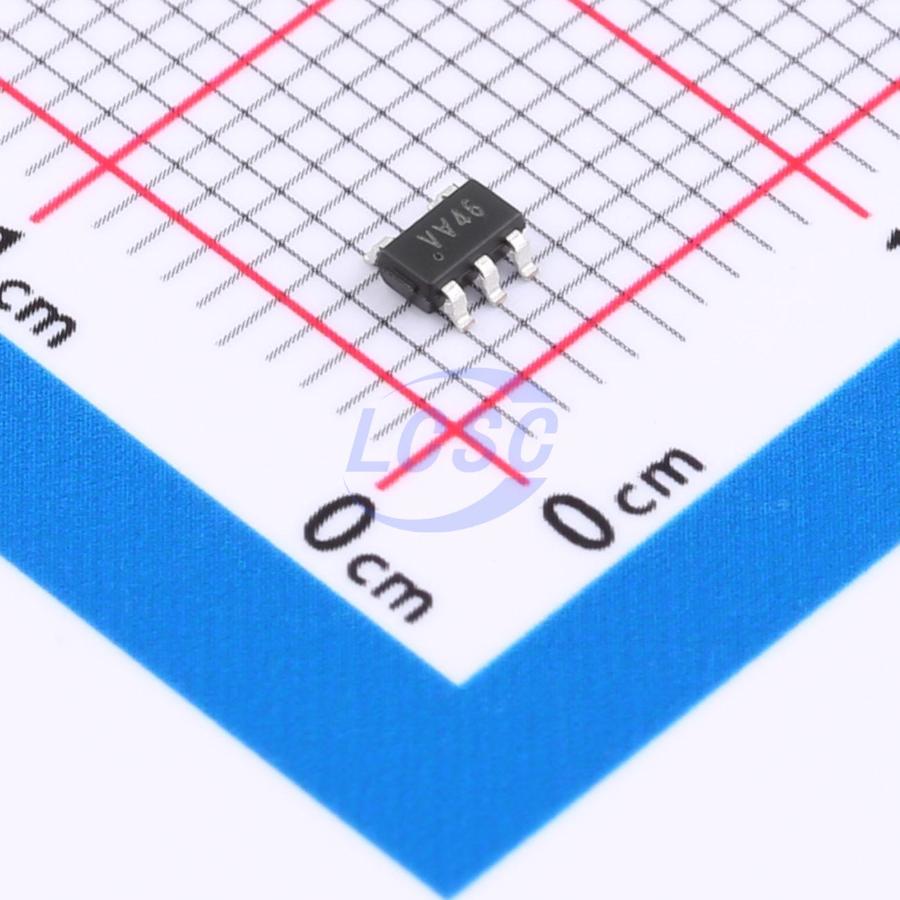

EM74LVC1G132GV
Schmitt trigger 1.65V~5.5V 2.9ns@5.5V,50pF 4uA SOT-23-5L Gates and Inverters
SOT-23-5LRoHSActive
Single 2-input NAND gate with Schmitt trigger inputs
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC1G132GV
- Store part #
- C49188130
- Package / case
- SOT-23-5L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,580 in stock
#C49188130
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.37 | ₹73.70 |
| 100+ | ₹5.82 | ₹582.00 |
| 300+ | ₹5.05 | ₹1,515.00 |
| 3,000+ | ₹4.47 | ₹13,410.00 |
| 6,000+ | ₹4.01 | ₹24,060.00 |
| 9,000+ | ₹3.78 | ₹34,020.00 |
10 × ₹7.37
₹73.70
excl. GST
₹86.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC1G132GV
₹73.70 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 2.9ns@5.5V,50pF
- Output Logic Level - Low
- 450mV~700mV;300mV~450mV;400mV~600mV;550mV~800mV
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 950mV~1.2V;1.7V~1.9V;1.9V~2.2V;2V~2.3V;3.4V~3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
EM74LVC1G132 is a single 2-input NAND gate with Schmitt-trigger inputs. The inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially damaging backflow currents when the device is powered down.
Key features
- Wide supply voltage range: 1.65 V to 5.5 V
- Input overvoltage tolerance up to 5.5 V
- High noise immunity
- Low-power CMOS
- I<sub>OFF</sub> circuitry enables partial power-down mode operation
- ±24 mA output drive capability (V<sub>CC</sub> = 3.0V)
- Latch-up performance exceeds 100 mA
- Direct TTL-level interface compatible
- Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
