EnergyMathDatasheet (PDF)

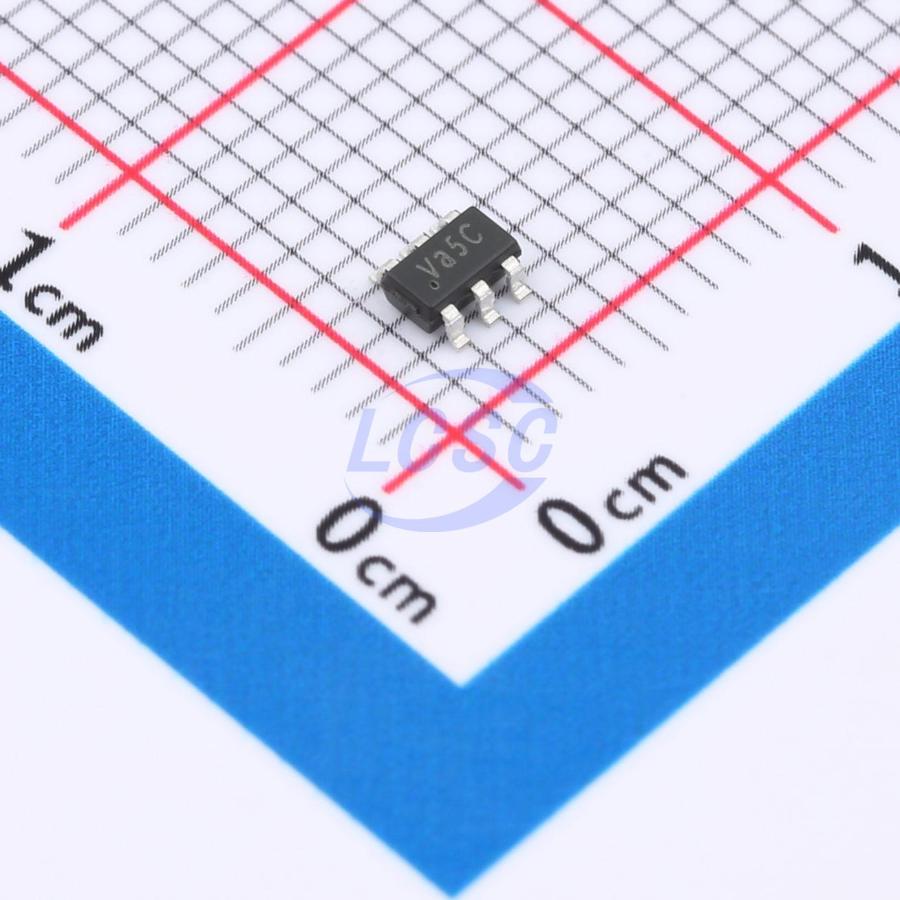

EM74LVC2G07GV
Schmitt trigger 1.65V~5.5V 1 2 2.5ns@3.3V,50pF SOT-23-6L Buffers, Drivers, Receivers, Transceivers
SOT-23-6LRoHSActive
Buffers with open-drain outputs
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC2G07GV
- Store part #
- C49188101
- Package / case
- SOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C49188101
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.46 | ₹74.60 |
| 100+ | ₹5.90 | ₹590.00 |
| 300+ | ₹5.12 | ₹1,536.00 |
| 3,000+ | ₹4.52 | ₹13,560.00 |
| 6,000+ | ₹4.06 | ₹24,360.00 |
| 9,000+ | ₹3.82 | ₹34,380.00 |
10 × ₹7.46
₹74.60
excl. GST
₹88.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC2G07GV
₹74.60 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Level shifting
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 2.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The EM74LVC2G07 is a dual buffer with open-drain outputs. Its inputs can be driven by 3.3V or 5V devices, allowing the device to be used as a level translator in mixed 3.3V/5V environments. All inputs feature Schmitt-trigger action, making the circuit tolerant of slower input rise and fall times. The device is fully specified for partial power-down applications using I(OFF). The I(OFF) circuit disables the outputs, preventing potentially damaging backflow currents through the device during power-down.
Key features
- Wide supply voltage range: 1.65 V ~ 5.5 V
- Input overvoltage tolerance up to 5.5 V
- High noise immunity
- CMOS low power consumption
- I(OFF) circuit enables partial power-down mode operation
- Output drive capability of -24 mA (V(CC) = 3.0 V)
- Latch-up performance exceeds 100 mA
- Direct TTL-level interface compatible
- Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EM74LVC2G34GV#C49188091EnergyMath · SOT-23-6L | EnergyMath | SOT-23-6L | 1,630 | ₹7.46 · 1,630 in stock | View |
 | EM74LVC2G17GV#C49188094EnergyMath · SOT-23-6L | EnergyMath | SOT-23-6L | 1,880 | ₹7.46 · 1,880 in stock | View |
